• Turbo oil feed line kit for Ford Falcon XR6 FPV F6 BA BF FG Barra turbo engines with Garrett GT3576R GT3582R GTX3584RS, featuring 4AN PTFE braided stainless hose, 400-mesh filter, and restrictor fitting for reliable oil flow.
  • OEM oil pressure sensor retained using tee adapter on Ford Falcon Barra engine
  • This handy device with -4 AN male to male allows the user to install the inline oil filter with any braided line with -4 AN hose end.
  • This handy device with -4 AN male to male allows the user to install the inline oil filter with any braided line with -4 AN hose end.

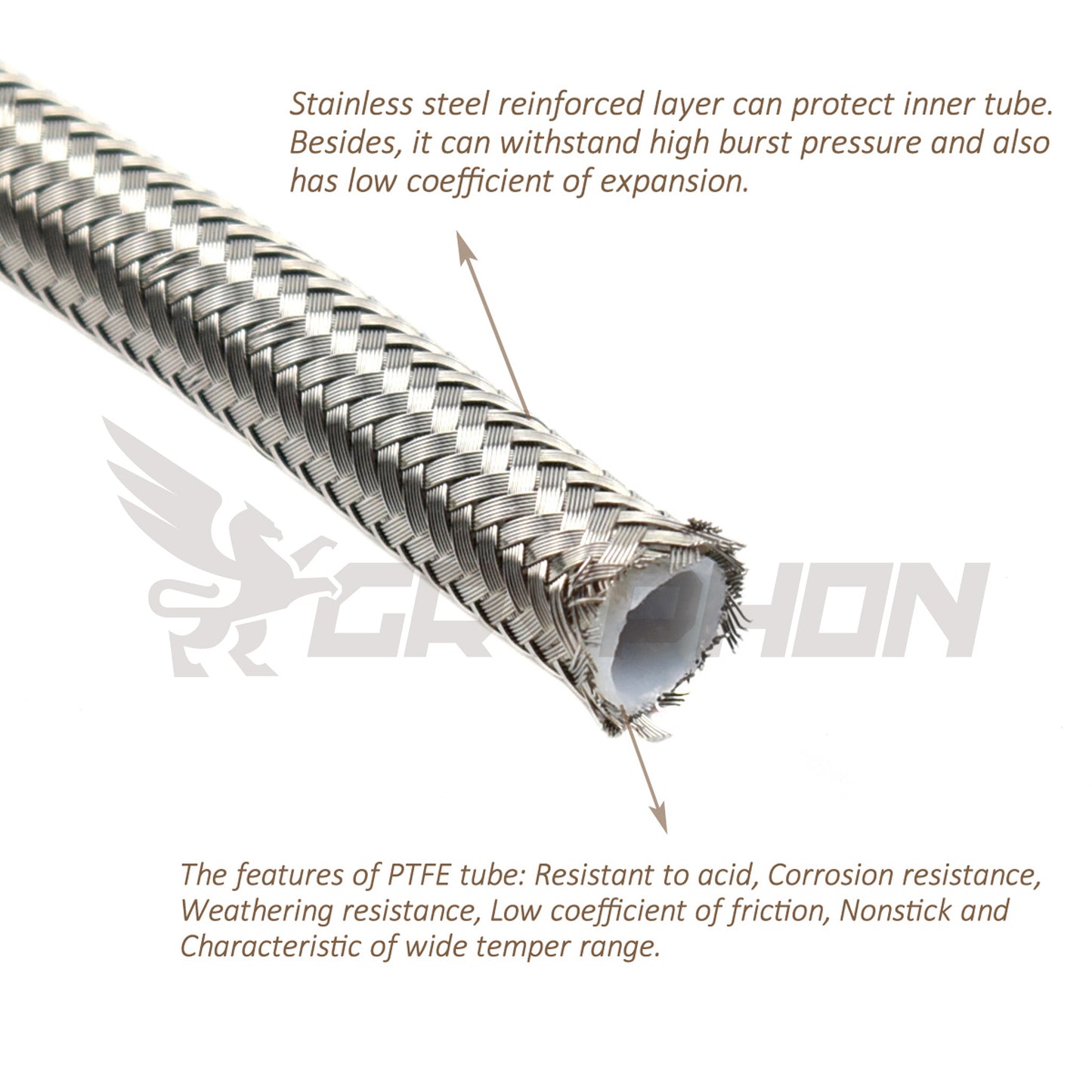

  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 6

Ford Falcon XR6 GT35R Turbo Oil Feed Line Kit | BA BF FG Barra 4.0L

Ford Falcon XR6 GT35R Turbo Oil Feed Line Kit | BA BF FG Barra 4.0L

$114.08 USD
$0.00 USD $114.08 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This turbo oil feed line kit is designed for Ford Falcon XR6 Turbo and FPV BA, BF, FG and FG-X Barra 4.0L engines using factory Garrett GT3576R or GT3582R turbochargers. It replaces the original engine-to-turbo oil supply with a -4AN PTFE braided line, external inline filter and matched turbo inlet fitting.

The factory Barra oil feed filter is located in a difficult-to-access engine-side fitting. If debris or deposits restrict the filter, oil delivery to the turbo may be reduced. The rigid factory line and heat-cycled sealing connections can also be difficult to reuse during turbo replacement or engine-bay servicing.

The supplied tee adapter retains the factory oil pressure sensor while providing a -4AN turbo oil feed connection. Oil passes through a removable 400-mesh inline filter before reaching the turbo-side fitting with a 1.0mm restrictor, creating an accessible oil feed system that can be inspected and serviced from the engine bay.

Key Features

  • Designed for factory Garrett GT3576R / GT3582R and compatible GT35R-pattern upgrades
  • -4AN PTFE oil feed line with stainless steel outer braid
  • Serviceable external 400-mesh filter and oil pressure sensor tee adapter
  • Turbo-side oil feed fitting with integrated 1.0mm restrictor

Not sure which turbo configuration fits your setup? See the Ford Falcon XR6 Turbo Oil & Water Line Guide.

Specifications & Data

Kit Included +

• -4AN PTFE braided stainless steel oil feed line
• Oil pressure sensor tee adapter
• Serviceable external inline oil filter with 400-mesh element
• Turbo-side oil feed fitting with integrated 1.0mm restrictor

Vehicle Compatibility +

• Make: Ford / FPV
• Model: Falcon
• Series: BA / BF / FG / FG-X
• Variant: XR6 / G6E / F6 / F6-E / Force 6 / Typhoon
• Engine: 240T / 245T / 270T / 310T 4.0L Barra Turbo I6

Turbo Compatibility +

• Fitment: Factory Garrett GT3582R / GT3576R & GT35R Upgrades

Product Specifications +

• Line Size: -4AN
• Hose Construction: Heat-resistant PTFE core with stainless steel outer braid
• Turbo-Side Restrictor: 1.0mm
• Oil Filter: External inline filter with removable 400-mesh element
• Engine Connection: Oil pressure sensor tee adapter
• Sensor Retention: Retains the factory oil pressure sensor
• Application: Engine-to-turbo pressurized oil feed
