Nissan Navara D22 ZD30DDT Turbo Oil Feed & Return Line Kit | HT12-19B HT12-19D

Nissan Navara D22 ZD30DDT Turbo Oil Feed & Return Line Kit | HT12-19B HT12-19D

Regular price $129.60 USD
Regular price $0.00 USD Sale price $129.60 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This turbo oil feed and return line kit replaces the factory oil pipes on Nissan Navara D22 ZD30DDT 3.0L diesel models with HT12-19B or HT12-19D turbos. It covers both the oil supply line and the oil drain (return) line.

Choose the complete kit when both lines need replacement during turbo servicing. The PTFE braided feed line and NBR return hose are supplied with the fittings, flanges and sealing hardware for the listed factory connections.

  • Complete Feed & Return Replacement: Renew both turbo oil lines together with the connection hardware supplied in one kit.
  • -4AN PTFE Braided Oil Feed: Pre-crimped stainless steel braided hose replaces the original rigid feed pipe.
  • NBR Oil Drain / Return Hose: Supplied with drain flanges for both turbo and engine connections.
  • HT12-19B / HT12-19D Oil Feed Fitting: Includes a 1.8 mm restricted feed fitting and the engine oil supply banjo assembly.

Compare complete kits and individual lines in our Navara D22 ZD30 Turbo Oil Line Guide.

Specifications & Data

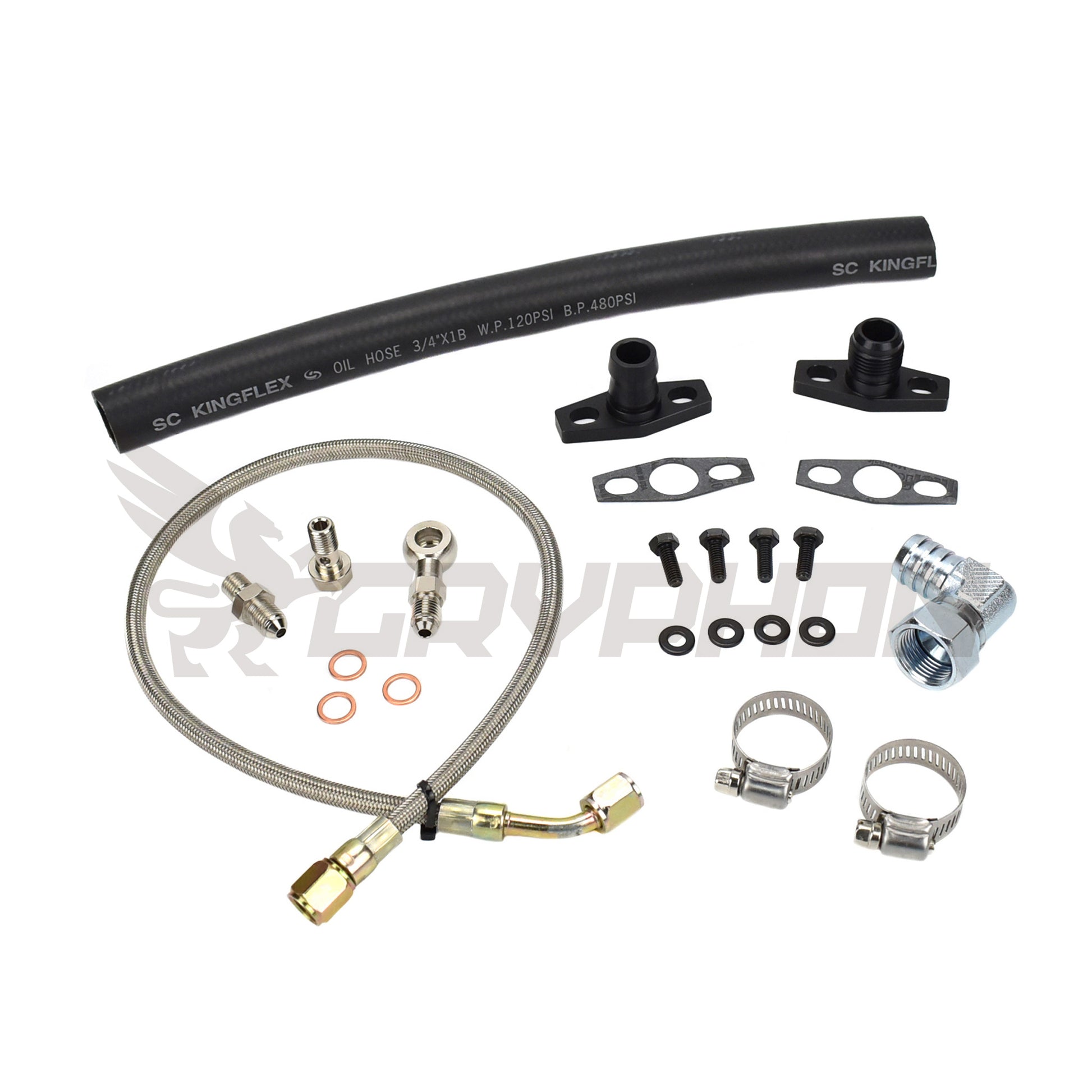

Kit Included +

• -4AN PTFE braided stainless steel oil feed line
• -4AN turbo oil feed fitting with 1.8 mm restricted port
• Engine oil supply banjo eye and bolt
• Copper crush washers, 1 mm thick
• NBR oil drain hose
• Turbo side oil drain flange
• Engine side oil drain flange
• Oil drain gasket, 1 mm thick
• 90° swivel fitting
• Hose clamps
• Mounting bolts

Vehicle Compatibility +

• Nissan Navara D22 ZD30DDT 3.0L turbo diesel engine

Turbo Compatibility +

• Turbo models: HT12-19B / HT12-19D
• Nissan turbo part numbers: 14411-9S000 / 14411-9S00A / 14411-9S002
• Additional references: 047-229 / 047-663 / 047-282 / 1047282

Product Specifications +

• Oil feed line: -4AN PTFE hose with stainless steel braid; pre-crimped ends
• Turbo oil feed fitting: 1.8 mm restricted port
• Oil drain hose: NBR (nitrile rubber)
• Flange material: 6061-T6 aluminum
• Fitting material: mild steel
• Oil drain gasket: Interface N-8092 non-asbestos, 1 mm thick
• Copper crush washers: 1 mm thick
• Bolts: property class 8.8
