2004-2005 Mazdaspeed Miata MSM | Turbo Oil Feed & Return Line Kit | IHI VJ35 BP8J

2004-2005 Mazdaspeed Miata MSM | Turbo Oil Feed & Return Line Kit | IHI VJ35 BP8J

$139.18 USD
$139.18 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

24H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted

The ultimate 100% bolt-on oiling refresh for the Mazdaspeed Miata. Don't let discontinued (NLA) factory hard lines and brittle hardware sideline your rare MSM. The 2004-2005 Mazdaspeed Miata engine bay is a high-heat "pocket" where factory rigid lines eventually fail due to vibration fatigue and thermal stress. This GryphonTek Signature Series Combo Kit replaces the entire failure-prone circuit with motorsport-grade PTFE and NBR solutions, ensuring your IHI VJ35 turbo stays lubricated and leak-free.

  • Complete System Fix: Upgrades both the high-pressure oil feed and the high-flow return circuit at once, eliminating the two most common leak points on the BP-4W turbo engine.
  • End the Rigid Pipe Nightmare: Replaces the inflexible factory metal drain pipe (BP8J-14-260) with a high-temp NBR hose and billet flange, absorbing engine harmonics that snap factory welds.
  • Maintenance Simplified: Flexible PTFE and NBR lines make turbo removal and installation significantly easier in the MSM’s famously cramped engine bay compared to stiff factory hardware.
  • The NLA Solution: Engineered to replace discontinued Mazda parts (BP8J-14-270A) with a permanent, high-performance upgrade that fits perfectly every time.

Vehicle Compatibility

• Make: Mazda
• Model: Mazdaspeed Miata (MSM)
• Years: 2004, 2005
• Engine: 1.8L BP-4W I4 Turbo

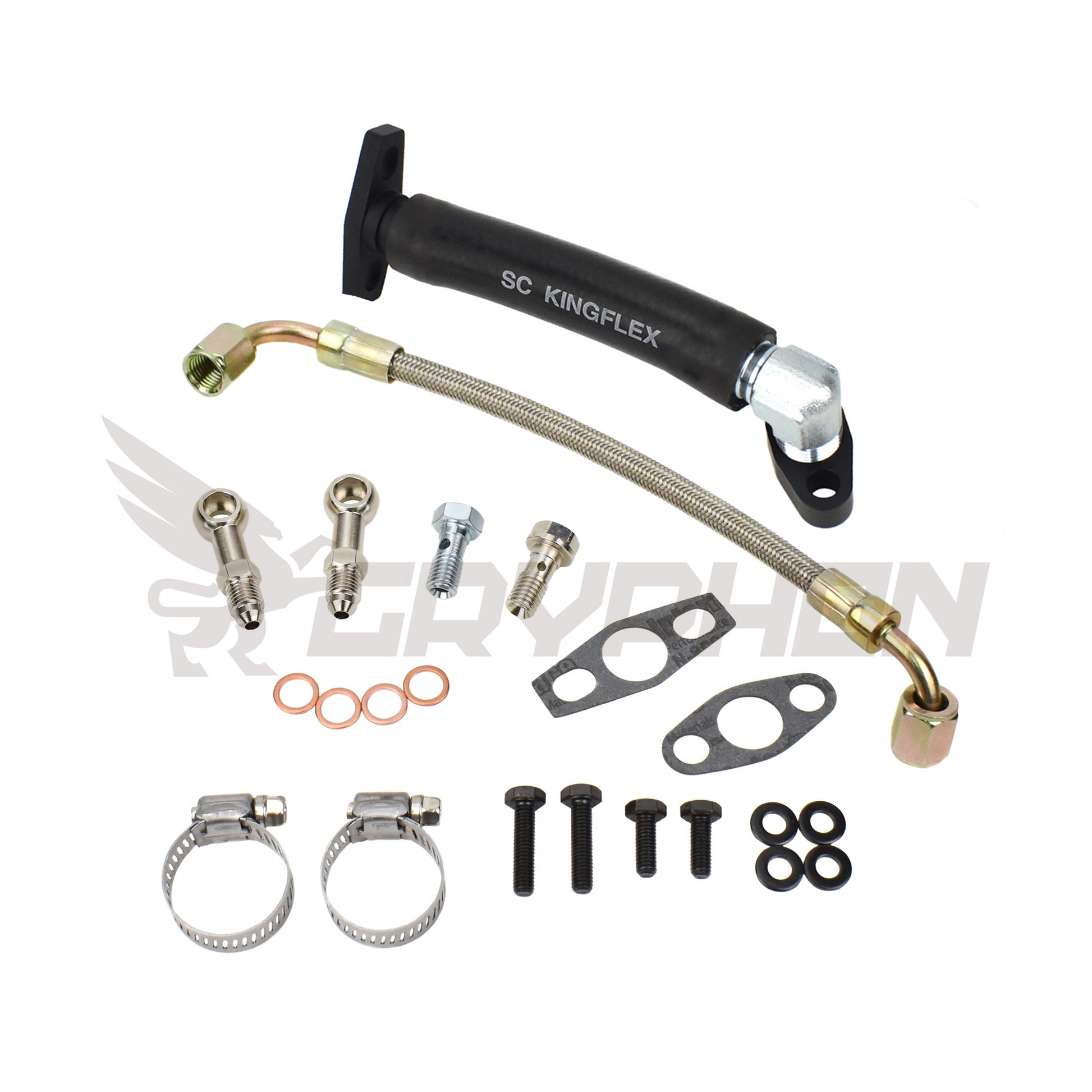

Kit Included

• -4AN PTFE Braided Oil Feed Line (Stainless Steel Braid)
• High-Temp Reinforced NBR Oil Drain Hose
• Billet Turbo Drain Flange
• Engine Block Drain Adapter
• VJ35 Specific Turbo Inlet Banjo Bolt (1.8mm Restrictor)
• MSM Block Oil Port Banjo Bolt
• Full Hardware Kit: Gaskets, Clamps & Copper Washers

Product Specifications

• Turbo Model: IHI RHF5 VJ35 (BP8J-13-700)
• Oil Feed (OEM Ref): BP8J-14-270A / BP8J14270A / BP8J14270
• Oil Drain (OEM Ref): BP8J-14-260 / BP8J14260
• Feed Material: PTFE (Teflon) Core with 304 Stainless Steel Braid
• Drain Material: High-Temp Reinforced NBR (Nitrile Butadiene Rubber)
• Hardware Material: CNC Machined Billet Aluminum / Steel
• Feature: Vibration-dampening & Fatigue-Resistant design
• Installation: Replaces factory rigid metal pipes
• Benefit: Eliminates weld cracking and simplifies turbo maintenance

Why Upgrade / Why Choose

The Mazdaspeed Miata is a modern classic, but its unique turbo plumbing is its Achilles' heel. The factory relies on a rigid steel feed pipe and a one-piece metal drain pipe. Over 20 years of intense heat cycles, these components become brittle. The feed pipe often develops hairline fractures, while the drain pipe’s welded joints crack due to engine vibration. Because these parts are no longer available (NLA) from Mazda, a single failure can keep your car off the road indefinitely.

The GryphonTek Signature Series Kit is the professional choice for MSM preservation. We use high-temp PTFE (Teflon) for the feed to handle extreme pressure and High-Temp Reinforced NBR for the return to ensure maximum flexibility. By converting to a flexible system, you eliminate the alignment stress that causes factory flanges to warp and leak. It’s the essential insurance policy for your rare 1.8L turbo investment.
