• GryphonTek Complete Turbo Oil Feed and Return Line Kit for Dodge Neon SRT-4 and Chrysler PT Cruiser GT - PTFE and NBR Solutions.
  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 3

Dodge SRT-4 & PT Cruiser Turbo Oil Feed & Return Line Kit | TD04LR / TD05HR

Dodge SRT-4 & PT Cruiser Turbo Oil Feed & Return Line Kit | TD04LR / TD05HR

$103.95 USD
$0.00 USD $103.95 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This complete turbo oil feed and return line kit is designed for Dodge Neon SRT-4 and Chrysler PT Cruiser 2.4L Turbo applications using the factory TD04LR-16GK or Mopar Stage 3 TD05HR-15GK2 turbocharger. It replaces the original turbo oil supply pipe, oil drain hose and steel return pipe with application-specific components.

The factory oil feed and return assemblies operate in a confined, high-temperature area behind the engine. Repeated heat cycles, engine movement, corrosion and previous turbo servicing can cause the rigid feed pipe, rubber drain hose or sealing connections to deteriorate and develop oil seepage.

The GryphonTek kit uses a flexible -4AN PTFE braided oil feed line with dedicated engine and turbo fittings. The return side combines a reinforced NBR drain hose, corrosion-resistant steel drain pipe and Interface N-8092 gasket to maintain a stable gravity-fed oil return path from the turbocharger to the engine.

Key Features

  • Replaces both the factory turbo oil feed and oil return assemblies
  • Flexible -4AN PTFE braided feed line reduces stress at the connection points
  • Reinforced NBR hose and coated steel pipe support a smooth oil drain path
  • Fits factory TD04LR and Mopar Stage 3 TD05HR turbo configurations

Install the oil drain assembly with a continuous downward path toward the engine. Avoid kinks, low points or upward sections that may restrict gravity-fed oil return.

For turbo identification and kit selection, view the Dodge SRT-4 & PT Cruiser Turbo Oil & Water Line Guide.

Specifications & Data

Kit Included +

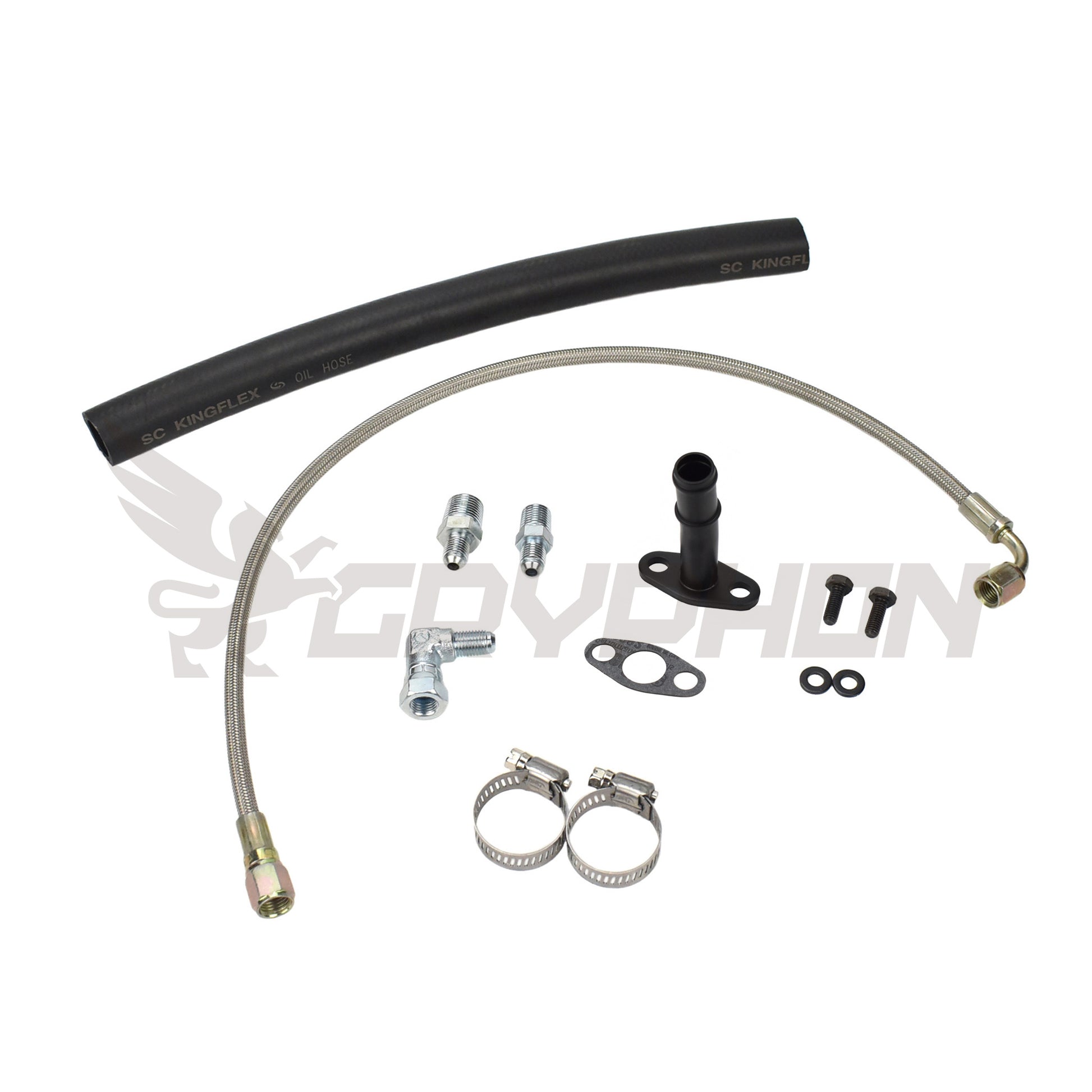

• -4AN PTFE braided stainless steel turbo oil feed line
• Electro-black coated steel turbo oil drain pipe
• Reinforced high-temperature NBR turbo oil drain hose
• Interface N-8092 non-asbestos turbo drain gasket, 1mm
• Engine block oil port adapter with -4AN connection
• Turbo oil inlet fitting for TD04LR / TD05HR

Vehicle Compatibility +

• Make: Dodge / Chrysler
• Models: Neon SRT-4 (2003–2005), PT Cruiser GT (2003–2009)
• Engine: 2.4L Turbocharged I4 (EDV / EDT)

Turbo Compatibility +

• Turbo: Stock TD04LR-16GK / Mopar Stage 3 TD05HR-15GK2

Product Specifications +

• Oil Feed Line:
-4AN PTFE inner hose with 304 stainless steel outer braid

• Engine Oil Connection:
Application-specific engine block adapter with -4AN flare

• Turbo Oil Connection:
Application-specific TD04LR / TD05HR oil inlet fitting

• Oil Drain Hose:
Reinforced high-temperature, oil-resistant NBR

• Oil Drain Pipe:
Mild steel with anti-corrosion electro-black coating

• Turbo Drain Gasket:
Interface N-8092 non-asbestos gasket, 1mm thickness

• Oil Return Method:
Gravity-fed turbo oil return

• Installation Type:
Replacement for the original turbo oil feed pipe, drain hose and steel return pipe
