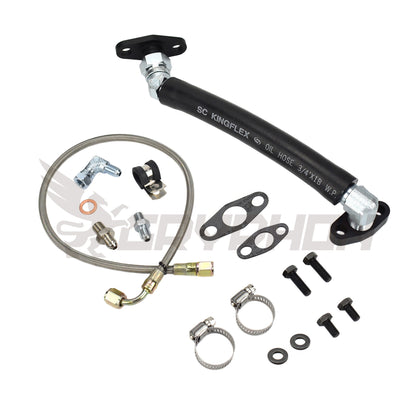

• -4AN PTFE Braided Turbo Oil Feed Line
• Precision PTE Turbo-Side Non-Restricted Oil Feed Fitting
• Engine Block Oil Port Adapter with -4AN Connection
• 3/4" Reinforced NBR Turbo Oil Drain Hose
• CNC-Machined 6061-T6 Precision PTE Turbo-Side Oil Drain Flange Assembly
• CNC-Machined 6061-T6 Thick-Profile Engine-Side Oil Drain Flange Assembly
• Two Interface N-8092 Non-Asbestos Oil Drain Gaskets
• Two Stainless Steel Hose Clamps
• Copper Sealing Washers and Turbo-Side Mounting Hardware
• Extended Engine-Mount Bolts and Washers for the Thick-Profile Engine-Side Flange
Mazdaspeed 3 / 6 & CX-7 Turbo Oil Feed & Return Line Kit | Precision PTE 5858 6266 6466
Mazdaspeed 3 / 6 & CX-7 Turbo Oil Feed & Return Line Kit | Precision PTE 5858 6266 6466
Regular price
$126.75 USD
Regular price
$0.00 USD
Sale price
$126.75 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
No PayPal Account Required
We accept Visa, Mastercard, Amex, JCB
Click PayPal, then select "Pay with a Card"
Worldwide
DHL, FEDEX, EMSFast Ship
48H DispatchFree Ship
AU/US & MoreTailored
Customizable30-Day
ReturnsSecured
SSL Encrypted
Technical Description
This complete turbo oil feed and return line kit is designed for Mazdaspeed 3, Mazdaspeed 6 and Mazda CX-7 models equipped with the 2.3L MZR DISI Turbo engine and converted to a compatible Precision Turbo (PTE) turbocharger. It replaces the external pressurized oil-feed connection and gravity oil-return assembly required for the upgraded turbo installation.
Converting from the factory K0422 turbocharger to a Precision PTE unit changes both the oil-inlet connection and oil drain flange pattern. The original K0422 oil pipes are not designed to connect directly to the PTE center housing, requiring compatible fittings, drain flanges and flexible line routing for the conversion.
This GryphonTek kit uses a -4AN PTFE braided oil feed line with a non-restricted PTE turbo-side fitting for compatible 1/8-inch NPT oil inlets. The return side uses a reinforced 3/4-inch NBR hose with CNC-machined 6061-T6 aluminum turbo-side and engine-side drain flanges, providing an external gravity-return path from the turbocharger to the engine.
Key Features
- Complete turbo oil feed and gravity-drain conversion for compatible Precision PTE applications
- Non-restricted -4AN turbo-side fitting for compatible PTE 1/8-inch NPT oil inlets
- Flexible -4AN PTFE braided feed line and reinforced 3/4-inch NBR drain hose
- CNC-machined PTE turbo-side and thick-profile engine-side drain flanges with installation hardware
Installation Note
This kit uses a thick-profile engine-side oil drain flange. The included extended engine-mount bolts must be installed in place of the shorter factory bolts to provide the required clearance and thread engagement. Do not reuse the shorter factory bolts with the thick-profile flange.
Need help confirming your setup? View the Mazdaspeed 2.3L DISI Turbo Oil & Water Line Guide.
