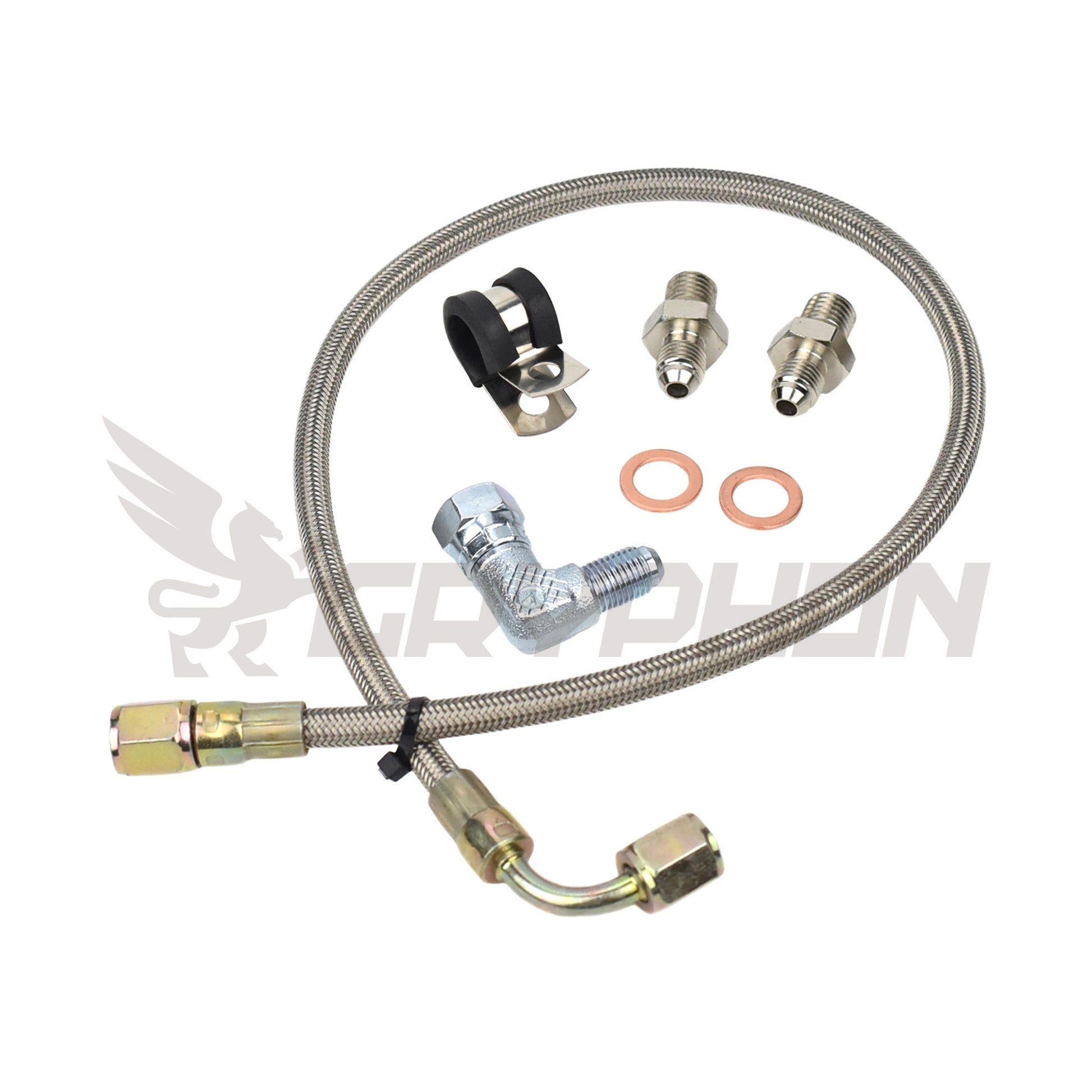

• GryphonTek Mazdaspeed 3 6 CX-7 Turbo Oil Feed Line Kit - 1.8mm Restrictor and -4AN PTFE Braided Hose for K0422
  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 2

Mazdaspeed 3 / 6 & CX-7 Turbo Oil Feed Line Kit | K0422 | 1.8mm Restrictor

Mazdaspeed 3 / 6 & CX-7 Turbo Oil Feed Line Kit | K0422 | 1.8mm Restrictor

$85.27 USD
$0.00 USD $85.27 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This turbo oil feed line kit is designed for Mazdaspeed 3, Mazdaspeed 6 and Mazda CX-7 models equipped with the 2.3L MZR DISI Turbo engine and a stock K0422 turbocharger. It replaces the external pressurized oil-supply line between the engine block and turbocharger.

The original rigid oil feed pipe and sealing connections are exposed to repeated heat cycles around the turbocharger. After extended service, the factory line may become difficult to remove, refit or reuse during turbo replacement and engine-bay maintenance. This GryphonTek kit uses a flexible -4AN PTFE braided hose to provide a heat-resistant replacement route between the factory engine oil source and K0422 oil inlet.

The included turbo-side fitting incorporates a 1.8mm restrictor configured for the listed K0422 turbochargers. A matching engine block adapter and copper sealing washers are supplied to complete the external oil feed connection.

Key Features

  • Application-specific turbo oil feed line replacement for stock K0422 installations
  • Turbo-side fitting with an integrated 1.8mm oil-feed restrictor
  • Flexible -4AN PTFE hose with 304 stainless steel outer braid
  • Includes the engine block adapter and sealing hardware required for installation

Need help confirming your setup? View the Mazdaspeed 2.3L DISI Turbo Oil & Water Line Guide.

Specifications & Data

Kit Included +

• -4AN PTFE Braided Turbo Oil Feed Line
• Turbo-Side Oil Feed Fitting with Integrated 1.8mm Restrictor
• Engine Block Oil Port Fitting with -4AN Connection
• Copper Sealing Washers

Vehicle Compatibility +

• Make: Mazda
• Models: Mazdaspeed 3, Mazdaspeed 6, CX-7
• Engine: 2.3L MZR DISI Turbo

Turbo Compatibility +

• Turbo: K0422-582, K0422-882, K0422-881

Product Specifications +

• Oil Feed Line: -4AN PTFE Core with 304 Stainless Steel Braid
• Oil-Feed Restrictor: 1.8mm, Integrated into Turbo-Side Fitting
• Engine Connection: Factory Oil Source via Supplied -4AN Adapter
• Turbo Connection: Application-Specific K0422 Oil Inlet Fitting
• Installation Type: External Turbo Oil Feed Line Replacement
• Included System: Oil Feed Only
