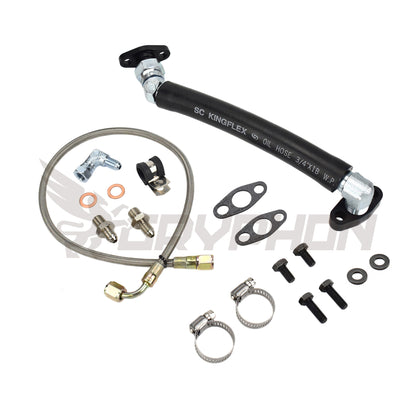

• -4AN PTFE Braided Turbo Oil Feed Line
• BorgWarner EFR Turbo-Side Non-Restricted Oil Feed Fitting
• Engine Block Oil Port Adapter with -4AN Connection
• 3/4" Reinforced NBR Turbo Oil Drain Hose
• CNC-Machined 6061-T6 BorgWarner EFR Turbo-Side Oil Drain Flange Assembly
• CNC-Machined 6061-T6 Thick-Profile Engine-Side Oil Drain Flange Assembly
• Two Interface N-8092 Non-Asbestos Oil Drain Gaskets
• Two Stainless Steel Hose Clamps
• Copper Sealing Washers and Turbo-Side Mounting Hardware
• Extended Engine-Mount Bolts and Washers for the Thick-Profile Engine-Side Flange
Mazdaspeed 3 / 6 & CX-7 Turbo Oil Feed & Return Line Kit | BorgWarner EFR 6258 6758 7163
Mazdaspeed 3 / 6 & CX-7 Turbo Oil Feed & Return Line Kit | BorgWarner EFR 6258 6758 7163
Regular price
$127.41 USD
Regular price
$0.00 USD
Sale price
$127.41 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
No PayPal Account Required
We accept Visa, Mastercard, Amex, JCB
Click PayPal, then select "Pay with a Card"
Worldwide
DHL, FEDEX, EMSFast Ship
48H DispatchFree Ship
AU/US & MoreTailored
Customizable30-Day
ReturnsSecured
SSL Encrypted
Technical Description
This complete turbo oil feed and return line kit is designed for Mazdaspeed 3, Mazdaspeed 6 and Mazda CX-7 models equipped with the 2.3L MZR DISI Turbo engine and converted to a compatible BorgWarner EFR 6258, 6758 or 7163 turbocharger. It replaces the external pressurized oil-feed connection and gravity oil-return assembly required for the upgraded turbo installation.
Converting from the factory K0422 turbocharger to a BorgWarner EFR unit changes both the oil-inlet connection and oil drain flange pattern. The original K0422 oil pipes are not designed to connect directly to the EFR center housing, requiring compatible fittings, drain flanges and flexible line routing for the conversion.
This GryphonTek kit uses a -4AN PTFE braided oil feed line with an EFR-specific non-restricted turbo-side fitting. The return side uses a reinforced 3/4-inch NBR hose with CNC-machined 6061-T6 aluminum turbo-side and engine-side drain flanges, providing a flexible gravity-return path from the turbocharger to the engine.
Key Features
- Complete turbo oil feed and gravity-drain conversion for listed BorgWarner EFR applications
- EFR-specific turbo-side oil fitting without an additional external restrictor
- Flexible -4AN PTFE braided feed line and reinforced 3/4-inch NBR drain hose
- CNC-machined EFR turbo-side and thick-profile engine-side drain flanges with installation hardware
Installation Note
This kit uses a thick-profile engine-side oil drain flange. The included extended engine-mount bolts must be installed in place of the shorter factory bolts to provide the required clearance and thread engagement. Do not reuse the shorter factory bolts with the thick-profile flange.
Need help confirming your setup? View the Mazdaspeed 2.3L DISI Turbo Oil & Water Line Guide.
