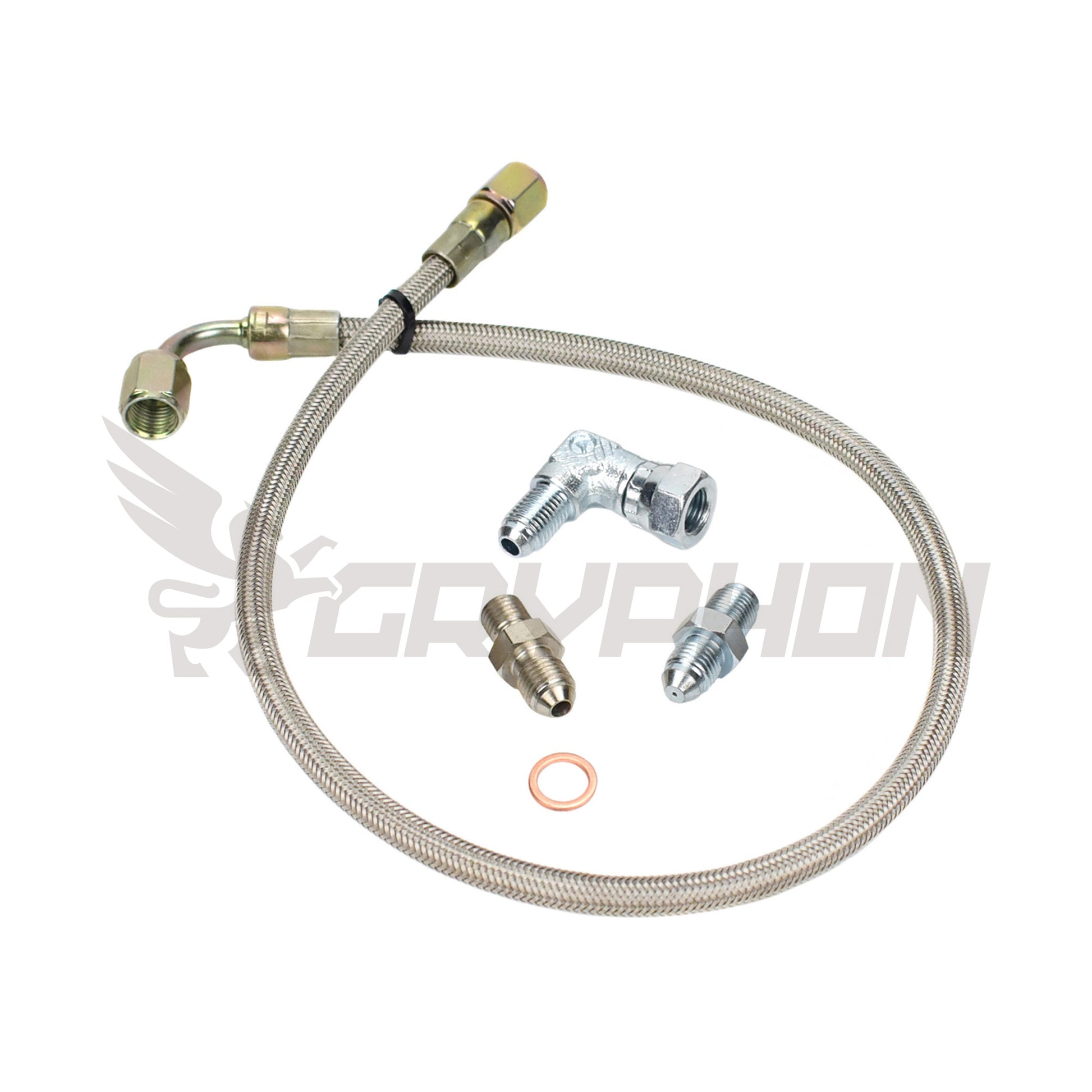

• Turbo oil feed line kit for Mazda MX-5 Miata early MK1 with Garrett T25 / T28 journal-bearing turbo conversion, 4AN PTFE stainless braided hose with 1.8 mm restricted adapter fitting and copper crush washer.

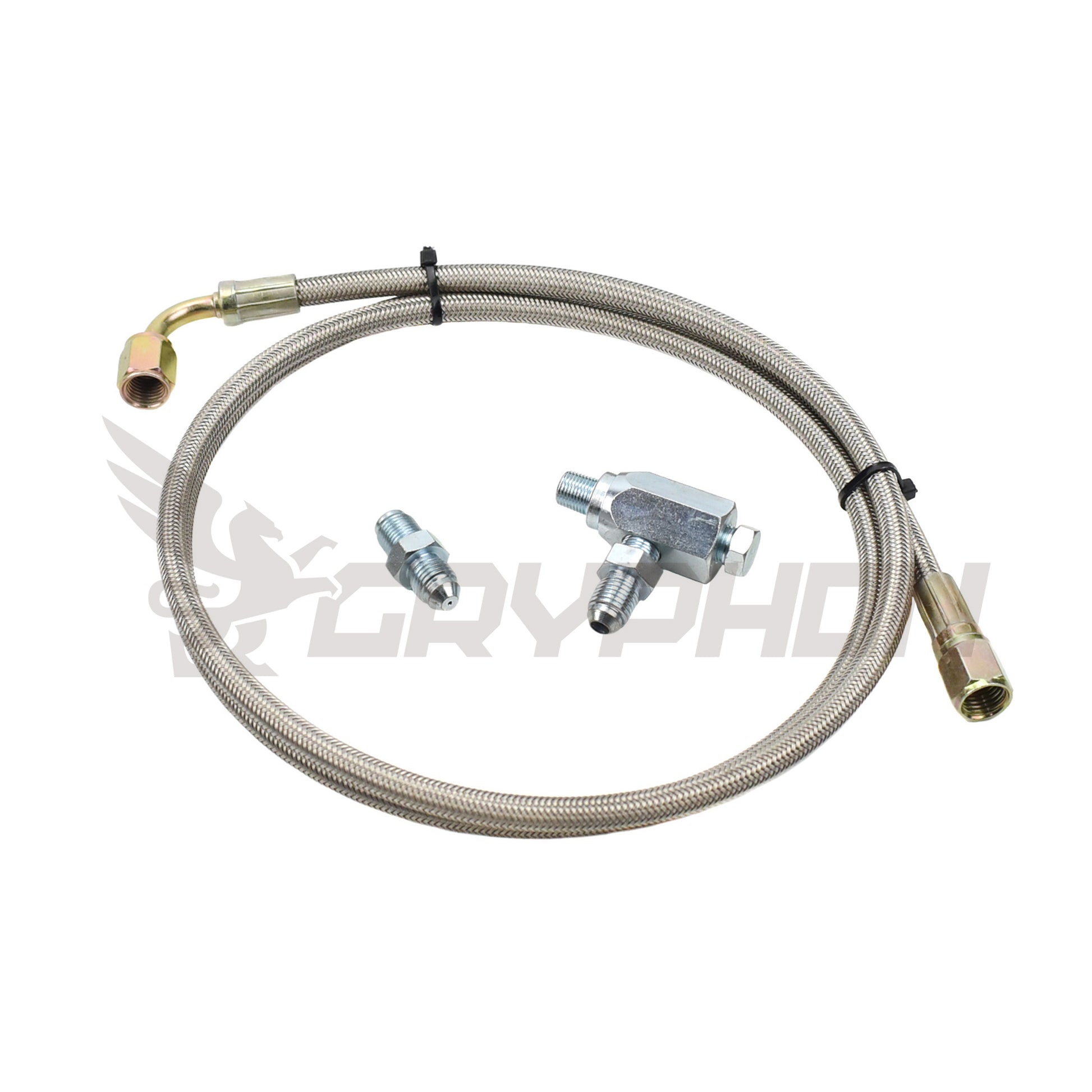

  • Turbo oil feed line kit for Mazda MX-5 Miata late MK1, MK2, MK2.5 with Garrett T25 / T28 journal-bearing turbo conversion, 4AN PTFE stainless braided hose with 1.8 mm restricted adapter fitting and copper crush washer.
1 3

Mazda MX5 Miata MK1 MK2 MK2.5 + Garrett T25 T28 Turbo Oil Feed Line Kit｜4AN Braided

Mazda MX5 Miata MK1 MK2 MK2.5 + Garrett T25 T28 Turbo Oil Feed Line Kit｜4AN Braided

$62.76 USD
$62.76 USD
Sale Sold out
Shipping calculated at checkout.

Converting your Mazda MX-5 Miata MK1, MK2, or MK2.5 to forced induction using a Garrett T25 or T28 turbocharger requires a dependable oil supply system.
The factory N/A engine doesn’t provide a direct turbo feed, and reusing mismatched lines can cause inconsistent oil pressure or leakage that shortens turbo life.

This 4AN PTFE Teflon stainless-braided turbo oil feed line kit is specifically engineered for Garrett T25 / T28 journal-bearing turbos, featuring a 1.8 mm restricted adapter fitting with copper crush washer.
It ensures precise, steady lubrication—keeping your turbo bearings protected and minimizing oil seepage through the seals.

Built for N/A-to-turbo Miata conversions, the kit offers a clean, high-temperature-resistant oiling path ready for any street or track build.

‣ Application: Mazda MX-5 Miata MK1, MK2, MK2.5 with Garrett T25 / T28 turbo conversion
‣ 1.8 mm oil-restricted adapter fitting – ideal for Garrett journal-bearing turbos
‣ Copper crush washer included – guarantees leak-free sealing at the turbo inlet
‣ 4AN PTFE Teflon stainless braided hose – withstands high heat and oil pressure under boost
‣ Pre-crimped stainless steel fittings – reliable, vibration-resistant connection
‣ Engine-side fitting adapter – creates a clean, convenient oil take-off point
‣ Complete plug-and-play kit – all fittings included, no fabrication required

Your Garrett T25 or T28 turbo relies on steady, controlled oil pressure for reliable performance.
This Gryphontek oil feed line kit delivers the correct 1.8 mm restricted flow with a copper-sealed connection—keeping your Miata’s turbo well-lubricated and ready for consistent boost.

📦 Order now to complete your turbo conversion with a precision-engineered, leak-free oil feed solution.

⚙️ Technical Note

Early MK1 engines supply oil from the exhaust-side port, while Late MK1, MK2, and MK2.5 use the oil pressure sensor location.
Please select your correct version using the vehicle generation filter before purchase.
