Ford Territory GT3582R Turbo Oil Feed & Return Line Kit | SY F6X Barra 4.0L

Ford Territory GT3582R Turbo Oil Feed & Return Line Kit | SY F6X Barra 4.0L

$173.61 USD
$0.00 USD $173.61 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This turbo oil feed and return line kit is designed for Ford Territory Turbo, Ghia Turbo and FPV F6X SY / SY II models powered by Barra 4.0L 245T or 270T engines with a Garrett GT3582R turbocharger. Stock Mount and Top Mount routing options are available to suit the turbo installation position.

The original engine-side oil feed fitting contains a small internal filter that can become restricted by oil contamination and is difficult to inspect while installed. On the return side, damaged rigid piping, leaking flange seals, restricted hose or incorrect routing can slow the gravity-fed oil return from the turbocharger.

This GryphonTek kit replaces both oil circuits with a -4AN PTFE braided oil feed line, serviceable external inline filter, oil pressure sensor tee adapter and a GT3582R turbo fitting with a 1.0 mm restrictor. The oil return system uses reinforced NBR hose and CNC-machined turbo and engine-side drain flanges, with routing matched to the selected Stock Mount or Top Mount configuration.

Key Features

  • Complete turbo oil feed and gravity-return line kit for Garrett GT3582R turbochargers
  • -4AN PTFE oil feed line with serviceable external inline filter
  • Reinforced NBR drain hose with turbo and engine-side drain flanges
  • Stock Mount and Top Mount routing options for Territory SY / SY II and FPV F6X

Correct downward drain routing is required. Avoid sharp bends, kinks or upward hose sections that may restrict gravity oil return.

Not sure which turbo setup fits your vehicle? See the Ford Territory Turbo Line Guide.

Specifications & Data

Kit Included +

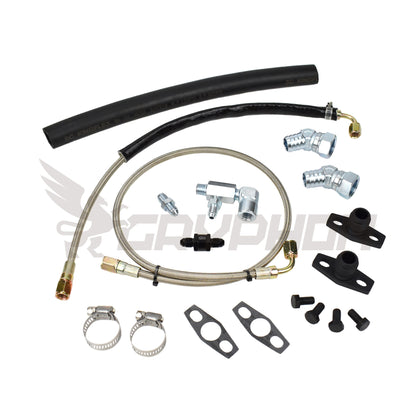

• -4AN PTFE braided stainless steel oil feed line
• Serviceable and washable external inline oil filter
• GT3582R turbo oil feed fitting with 1.0 mm restrictor
• Oil pressure sensor tee adapter
• GT3582R turbo oil drain flange
• Ford Territory Barra engine-side drain flange
• High-temperature oil-resistant reinforced NBR drain hose
• Gaskets, hose clamps, bolts and required mounting hardware

Vehicle Compatibility +

• Make: Ford / FPV
• Model: Territory / F6X
• Series: SY / SY II
• Year: 2006 - 2011
• Variant: Turbo, Ghia Turbo, F6X
• Engine: 4.0L Barra 245T / 270T I6 Turbo

Turbo Compatibility +

• Turbo Fitment: Garrett GT3582R (Factory Position)

Product Specifications +

• System: Turbo oil feed and gravity-return circuits
• Oil Feed Line: -4AN PTFE core with 304 stainless steel braid
• Oil Supply Source: Engine oil pressure sensor port
• Oil Pressure Sensor: Retained through supplied tee adapter
• Inline Filter: External, serviceable and washable
• Oil Feed Restrictor: 1.0 mm
• Oil Drain Hose: High-temperature oil-resistant reinforced NBR
• Drain Flanges: CNC-machined aluminum
• Installation Options: Stock Mount or Top Mount
• Kit Scope: Oil lines only; turbo water lines are not included
• Fitment Type: Vehicle-specific; not a universal oil line kit
