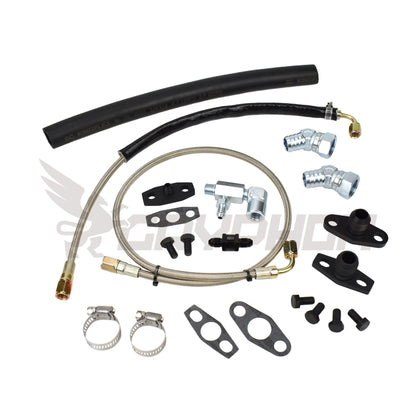

• Turbo Oil Feed Return Line Kit Ford Territory Ghia SX SY Garrett GT4202 GT4294
  • Retained OEM oil pressure sensor with tee fitting on Territory Barra 245T

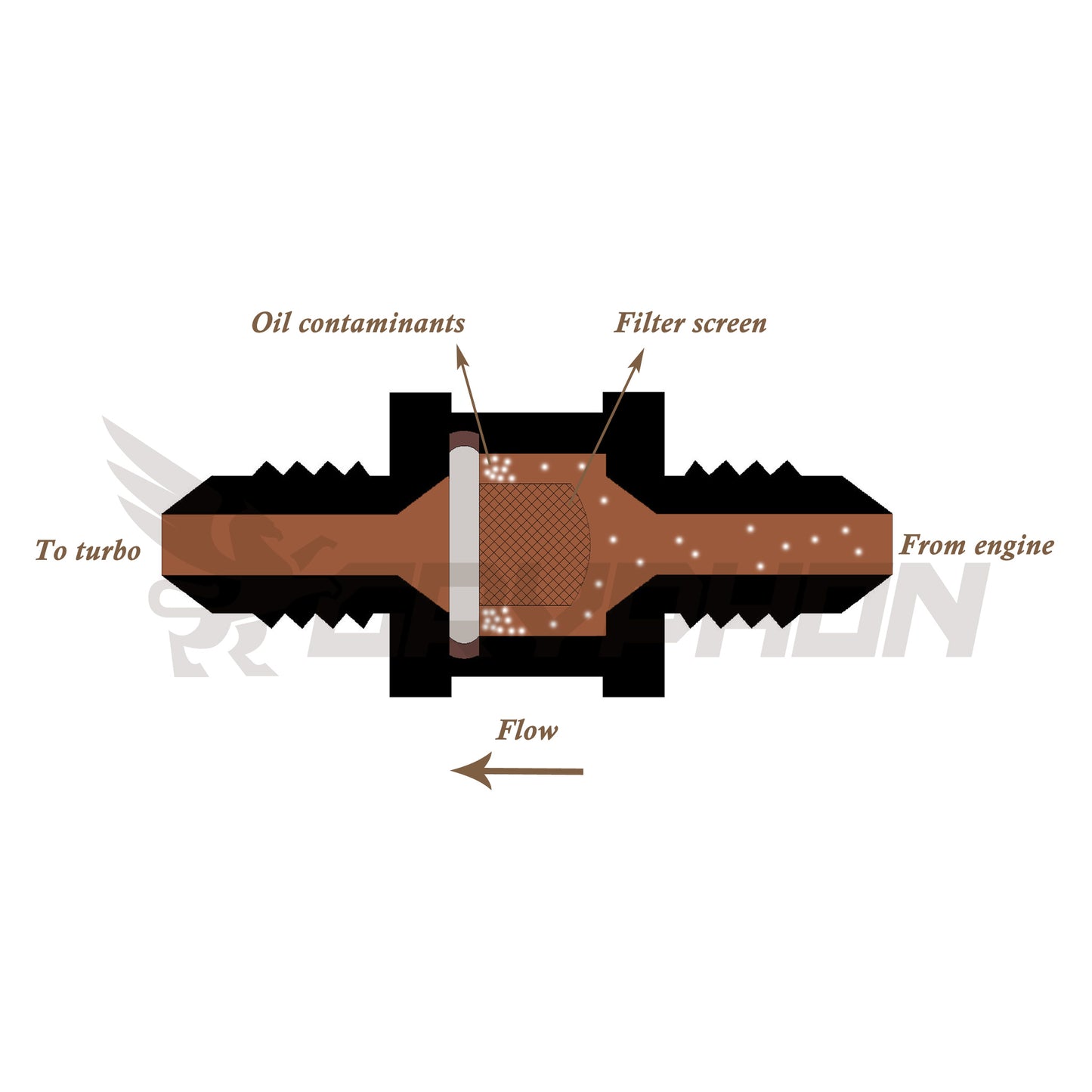

  • This handy device with -4 AN male to male allows the user to install the inline oil filter with any braided line with -4 AN hose end.
  • This handy device with -4 AN male to male allows the user to install the inline oil filter with any braided line with -4 AN hose end.
  • This handy device with -4 AN male to male allows the user to install the inline oil filter with any braided line with -4 AN hose end.
  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 8

Ford Territory G-Series G40 G42 G45 Turbo Oil Feed & Return Line Kit | SY F6X Barra 4.0L

Ford Territory G-Series G40 G42 G45 Turbo Oil Feed & Return Line Kit | SY F6X Barra 4.0L

$179.36 USD
$0.00 USD $179.36 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This turbo oil feed and return line kit is designed for Ford Territory Turbo, Ghia Turbo and FPV F6X SY / SY II models powered by Barra 4.0L 245T or 270T engines converted to a top-mount Garrett G-Series G40, G42 or G45 turbocharger.

When upgrading to a large-frame top-mount turbocharger, the original rigid oil feed and drain pipes may no longer suit the revised turbo position and routing. The original engine-side oil feed fitting also contains a small internal filter that can become restricted and is difficult to inspect while installed. On the return side, restricted hose, damaged flange seals or incorrect routing can slow the gravity-fed oil return from the turbocharger.

This GryphonTek kit replaces both oil circuits with a -4AN PTFE braided oil feed line, serviceable external inline filter, oil pressure sensor tee adapter and a G40/G42/G45 oil feed fitting with a 2.0 mm restrictor. The oil return system uses a reinforced 3/4" NBR hose with CNC-machined turbo and engine-side drain flanges to connect the turbocharger to the factory Barra engine return port.

Key Features

  • Complete top-mount oil feed and gravity-return kit for Garrett G40, G42 and G45 turbochargers
  • -4AN PTFE oil feed line with 2.0 mm restrictor and serviceable external filter
  • Oil pressure sensor tee adapter retains the original engine oil pressure sensor
  • Reinforced 3/4" NBR drain hose with turbo and Barra engine-side flanges

Correct downward drain routing is required. Avoid sharp bends, kinks, low points or extended horizontal hose sections that may restrict gravity oil return.

Not sure which turbo setup fits your vehicle? See the Ford Territory Turbo Line Guide.

Specifications & Data

Kit Included +

• -4AN PTFE braided stainless steel oil feed line
• Serviceable and washable external inline oil filter
• G40/G42/G45 oil feed fitting with 2.0 mm restrictor
• Oil pressure sensor tee adapter
• G40/G42/G45 turbo oil drain flange
• Ford Territory Barra engine-side drain flange
• 3/4" high-temperature oil-resistant reinforced NBR drain hose
• Drain flange gaskets
• Hose clamps, bolts and required mounting hardware

Vehicle Compatibility +

• Make: Ford / FPV
• Model: Territory / F6X
• Series: SY / SY II
• Year: 2006 - 2011
• Variant: Turbo, Ghia Turbo, F6X
• Engine: 4.0L Barra 245T / 270T I6 Turbo

Turbo Compatibility +

• Turbo Fitment: G-Series (G40-900, G40-1150, G42-1200, G42-1450, G45-1125, G45-1500)

Product Specifications +

• System: Turbo oil feed and gravity-return circuits
• Oil Feed Line: -4AN PTFE core with 304 stainless steel braid
• Oil Supply Source: Engine oil pressure sensor port
• Oil Pressure Sensor: Retained through supplied tee adapter
• Inline Filter: External, serviceable and washable
• Oil Feed Restrictor: 2.0 mm
• Oil Drain Hose: 3/4" high-temperature oil-resistant reinforced NBR
• Turbo-Side Drain Connection: G40/G42/G45 oil drain flange
• Engine-Side Drain Connection: Factory Barra engine return port
• Drain Flanges: CNC-machined aluminum
• Installation Position: Top Mount
• Kit Scope: Oil lines only; turbo water lines are not included
• Fitment Type: Vehicle-specific; not a universal oil line kit
