Technical Description

This turbo oil drain hose kit is designed for Ford Territory Turbo, Ghia Turbo and FPV F6X SY / SY II models powered by Barra 4.0L 245T or 270T engines converted to a top-mount Garrett G-Series G40, G42 or G45 turbocharger.

When upgrading to a large-frame top-mount turbocharger, the original rigid oil drain pipe may no longer suit the revised turbo position and return path. A restricted hose, damaged flange seal or incorrectly routed drain line can slow the gravity-fed oil return from the turbocharger.

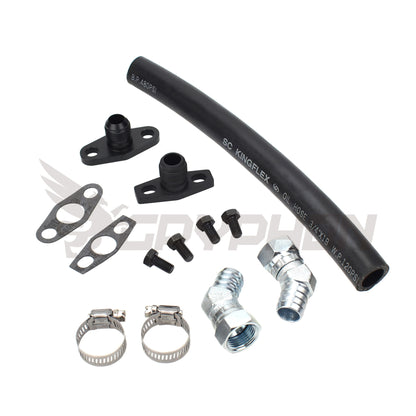

This GryphonTek kit provides a flexible oil return connection between the G40, G42 or G45 turbocharger and the factory Barra engine return port. It includes a 3/4" high-temperature, oil-resistant reinforced NBR hose, CNC-machined turbo and engine-side drain flanges, gaskets and mounting hardware.

Key Features

  • Top-mount oil drain hose kit for Garrett G40, G42 and G45 turbochargers
  • 3/4" high-temperature, oil-resistant reinforced NBR drain hose
  • CNC-machined G-Series turbo and Barra engine-side drain flanges
  • Vehicle-specific connection for Territory SY / SY II and FPV F6X applications

Correct downward routing is required for unrestricted gravity drainage. Avoid sharp bends, kinks, low points or extended horizontal hose sections during installation.

Not sure which turbo setup fits your vehicle? See the Ford Territory Turbo Line Guide.

Specifications & Data

Kit Included +

• G40/G42/G45 turbo oil drain flange
• Ford Territory Barra engine-side drain flange
• 3/4" high-temperature oil-resistant reinforced NBR drain hose
• Drain flange gaskets
• Hose clamps, bolts and required mounting hardware

Vehicle Compatibility +

• Make: Ford / FPV
• Model: Territory / F6X
• Series: SY / SY II
• Year: 2006 - 2011
• Variant: Turbo, Ghia Turbo, F6X
• Engine: 4.0L Barra 245T / 270T I6 Turbo

Turbo Compatibility +

• Turbo Fitment: G-Series (G40-900, G40-1150, G42-1200, G42-1450, G45-1125, G45-1500)

Product Specifications +

• System: Turbo gravity oil return circuit
• Oil Drain Hose: 3/4" high-temperature oil-resistant reinforced NBR
• Turbo-Side Connection: G40/G42/G45 oil drain flange
• Engine-Side Connection: Factory Barra engine return port
• Drain Flanges: CNC-machined aluminum
• Installation Position: Top Mount
• Kit Scope: Oil drain system only
• Fitment Type: Vehicle-specific; not a universal drain hose kit
