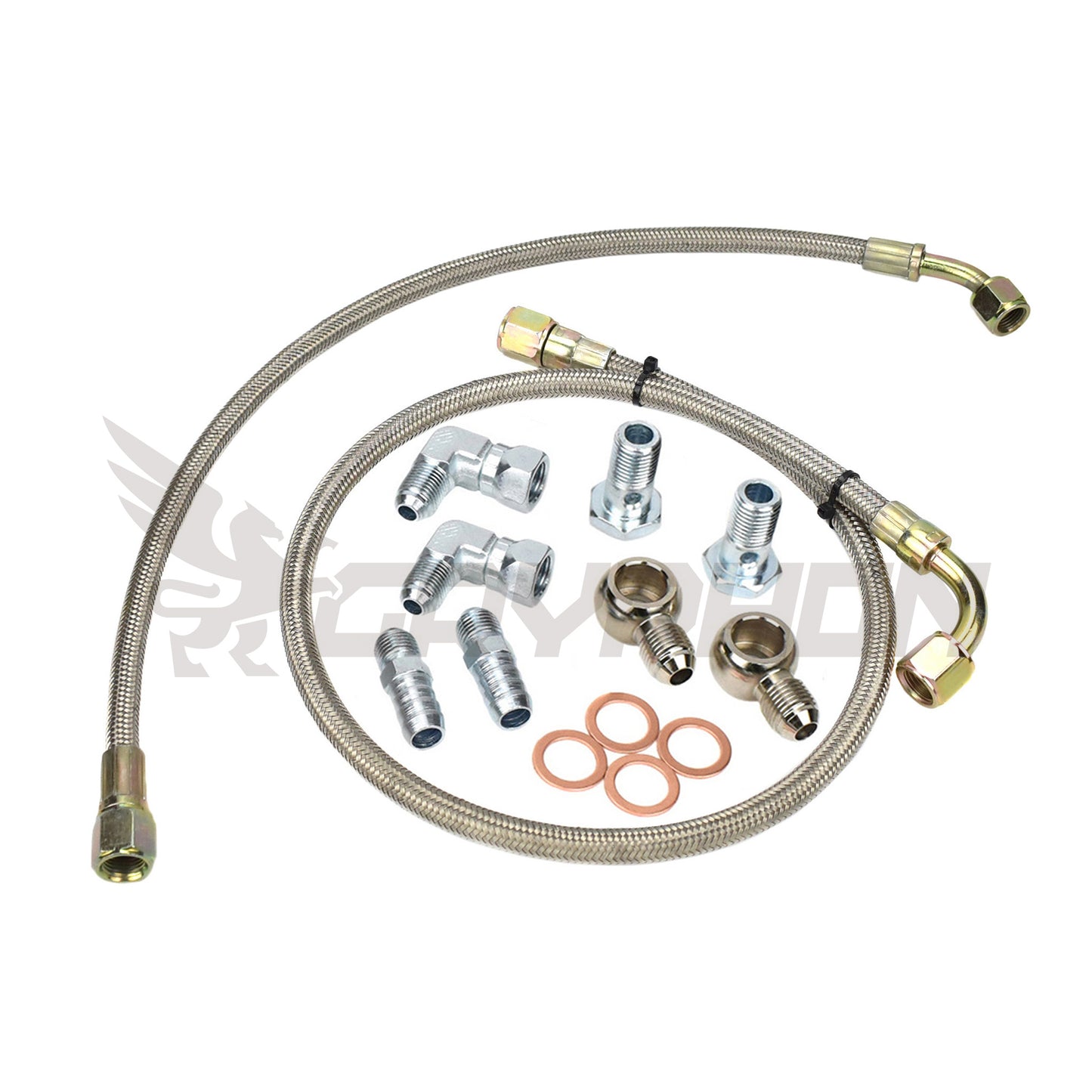

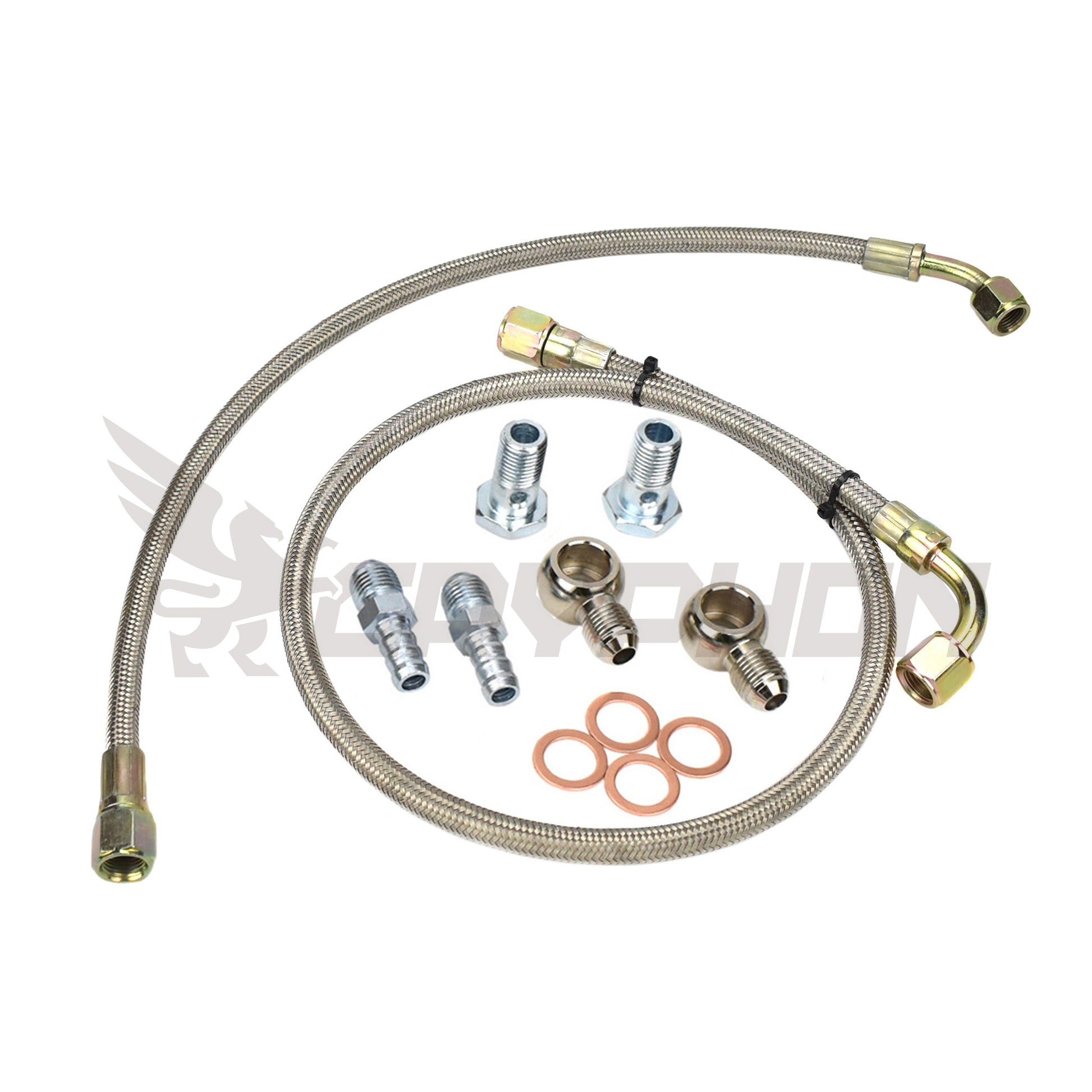

• Turbo water line kit with 6AN braided hoses for Ford Falcon XR6 Turbo BA BF with GT35R G35 top mount
  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 2

Ford Falcon XR6 Garrett G40 G42 G45 Turbo Water Line Kit | BA BF FG

Ford Falcon XR6 Garrett G40 G42 G45 Turbo Water Line Kit | BA BF FG

$125.01 USD
$0.00 USD $125.01 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This turbo water line kit is designed for Ford Falcon XR6 Turbo and FPV BA, BF, FG and FG-X Barra 4.0L engines upgraded with a Garrett G-Series G40, G42 or G45 turbocharger in a Top Mount configuration. Separate BA/BF and FG options provide chassis-specific hose lengths and routing.

A Top Mount turbo installation changes the position of the coolant connections, making the original rigid water pipes difficult to align or reuse. Flexible hose assemblies provide the routing adjustment required around the upgraded exhaust manifold, turbine housing and surrounding engine components.

This GryphonTek kit uses two -6AN PTFE braided hose assemblies to connect the turbo coolant feed and return circuits. Turbo-side water fittings matched to the Garrett G40, G42 and G45 port configuration are supplied with the required sealing hardware.

Key Features

  • Designed for Garrett G40 / G42 / G45 Top Mount installations
  • Two -6AN PTFE braided lines for turbo coolant feed and return
  • Includes matched G-Series turbo water fittings and sealing hardware
  • BA/BF and FG options with chassis-specific hose routing

Not sure which turbo configuration fits your setup? See the Ford Falcon XR6 Turbo Oil & Water Line Guide.

Specifications & Data

Kit Included +

• -6AN PTFE braided stainless steel turbo water feed line
• -6AN PTFE braided stainless steel turbo water return line
• G40 / G42 / G45 turbo water port fittings
• Copper sealing washers
• Required connection hardware

Vehicle Compatibility +

• Make: Ford / FPV
• Model: Falcon
• Series: BA / BF / FG / FG-X
• Variant: XR6 / G6E / F6 / F6-E / Force 6 / Typhoon
• Engine: 240T / 245T / 270T / 310T 4.0L Barra Turbo I6

Turbo Compatibility +

• Turbo Fitment: Garrett G-Series G40 / G42 / G45 (All Variants)

Product Specifications +

• Application: Turbo coolant feed and return
• Line Size: -6AN
• Hose Construction: Heat-resistant PTFE core with 304 stainless steel outer braid
• Turbo Connections: Garrett G40 / G42 / G45 water port fittings
• Sealing: Copper sealing washers
• Routing: Chassis-specific Top Mount configuration
• Chassis Options: BA/BF or FG/FG-X
