• -4AN PTFE braided stainless steel turbo oil feed line
• Oil pressure sensor tee adapter
• Serviceable external inline oil filter
• GT42R oil feed flange with integrated 2.0mm restrictor
• 3/4-inch reinforced NBR turbo oil drain hose
• CNC-machined aluminum GT42R turbo-side drain flange
• CNC-machined aluminum Barra engine-side drain flange
• Oil-resistant flange gaskets
• Hose clamps and mounting bolts
Ford Falcon XR6 Garrett GT42R Turbo Oil Feed & Return Line Kit
Ford Falcon XR6 Garrett GT42R Turbo Oil Feed & Return Line Kit
Regular price
$174.14 USD
Regular price
$0.00 USD
Sale price
$174.14 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
No PayPal Account Required
We accept Visa, Mastercard, Amex, JCB
Click PayPal, then select "Pay with a Card"
Worldwide
DHL, FEDEX, EMSFast Ship
48H DispatchFree Ship
AU/US & MoreTailored
Customizable30-Day
ReturnsSecured
SSL Encrypted
Technical Description
This turbo oil feed and return line kit is designed for Ford Falcon XR6 Turbo and FPV BA, BF, FG and FG-X Barra 4.0L engines fitted with a Garrett GT42R, including GT4202R and GT4294R, in a Top Mount configuration.
A Top Mount conversion changes the position and routing of the turbo oil connections, making the original rigid feed and drain pipes difficult to align or reuse. This kit provides both the pressurized oil supply and gravity oil return connections required between the Barra engine and GT42R turbocharger.

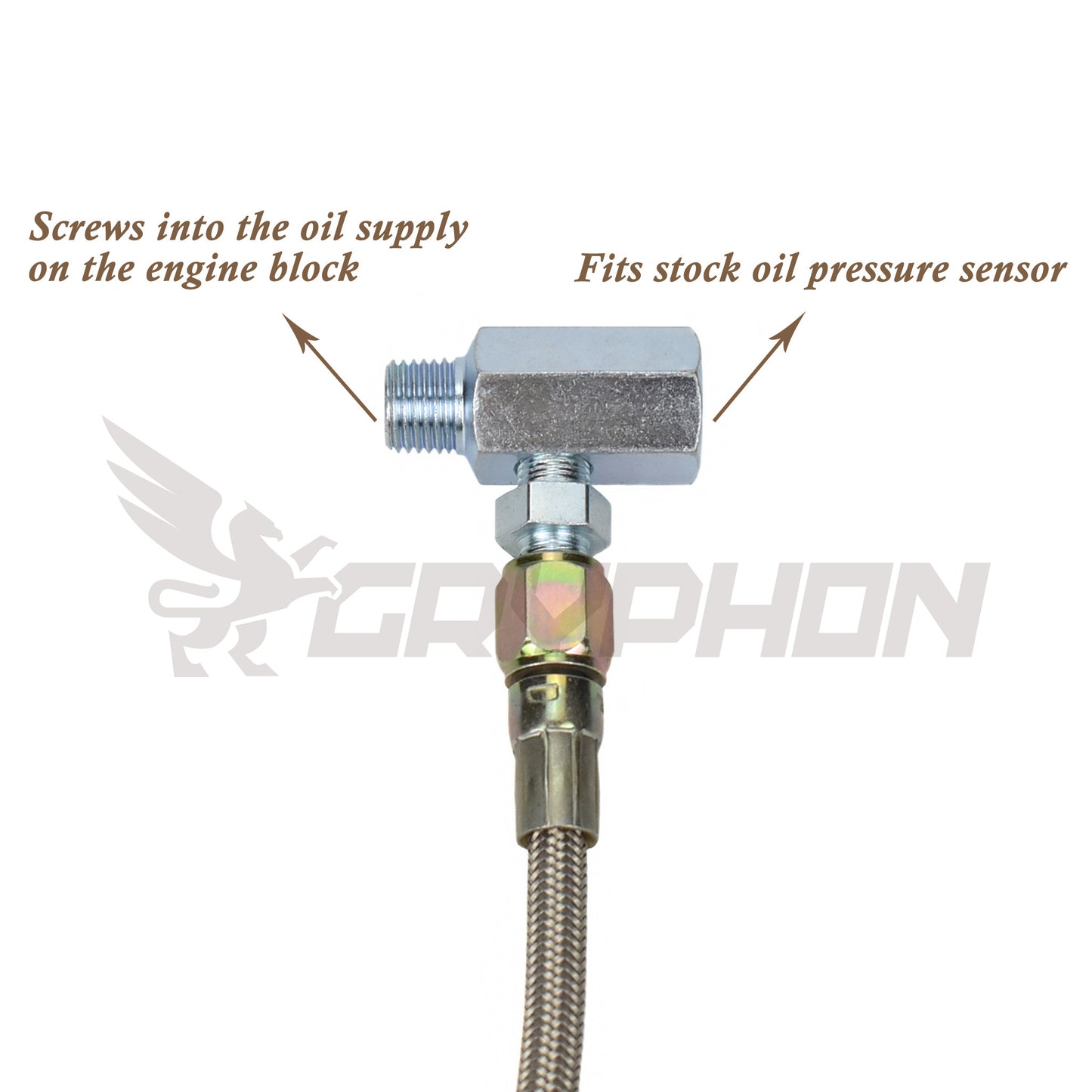

The oil feed system uses a -4AN PTFE braided line connected through an oil pressure sensor tee adapter, allowing the factory sensor to remain installed. A serviceable external inline filter is installed in the feed circuit, while the GT42R oil feed flange incorporates a 2.0mm restrictor to regulate oil delivery to the ball-bearing CHRA.
The oil return system uses a flexible 3/4-inch reinforced NBR hose with dedicated GT42R turbo-side and Barra engine-side drain flanges. Because turbo oil return relies on gravity, the CHRA must be correctly clocked and the hose must maintain a continuous downward path without kinks, restrictions or low spots.
Key Features
- Combined oil feed and gravity return kit for Garrett GT42R Top Mount installations
- -4AN PTFE oil feed line with external filter and 2.0mm restrictor
- 3/4-inch reinforced NBR oil drain hose with dedicated aluminum flanges
- Sensor tee retains the factory Barra oil pressure sensor
Not sure which turbo configuration fits your setup? See the Ford Falcon XR6 Turbo Oil & Water Line Guide.
Specifications & Data
Kit Included
Vehicle Compatibility
Turbo Compatibility
Product Specifications
