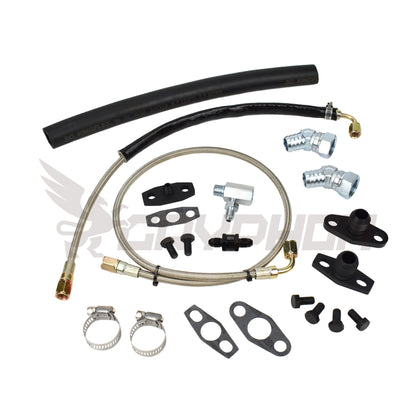

• Turbo Oil Feed & Return Line Kit Ford Falcon XR6 BA/BF FG FPV F6 Barra 240T 245T 270T 310T with top mount Garrett G-Series such as G40-900 G40-1150 G42-1200 G42-1450 G45-1125 G45-1350 G45-1500 turbo.

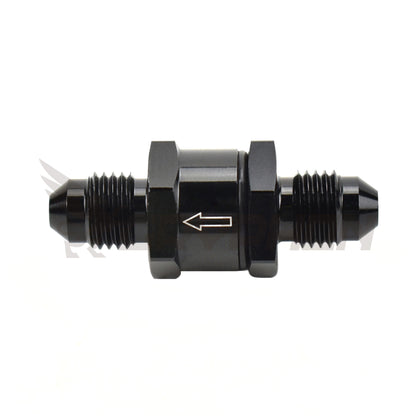

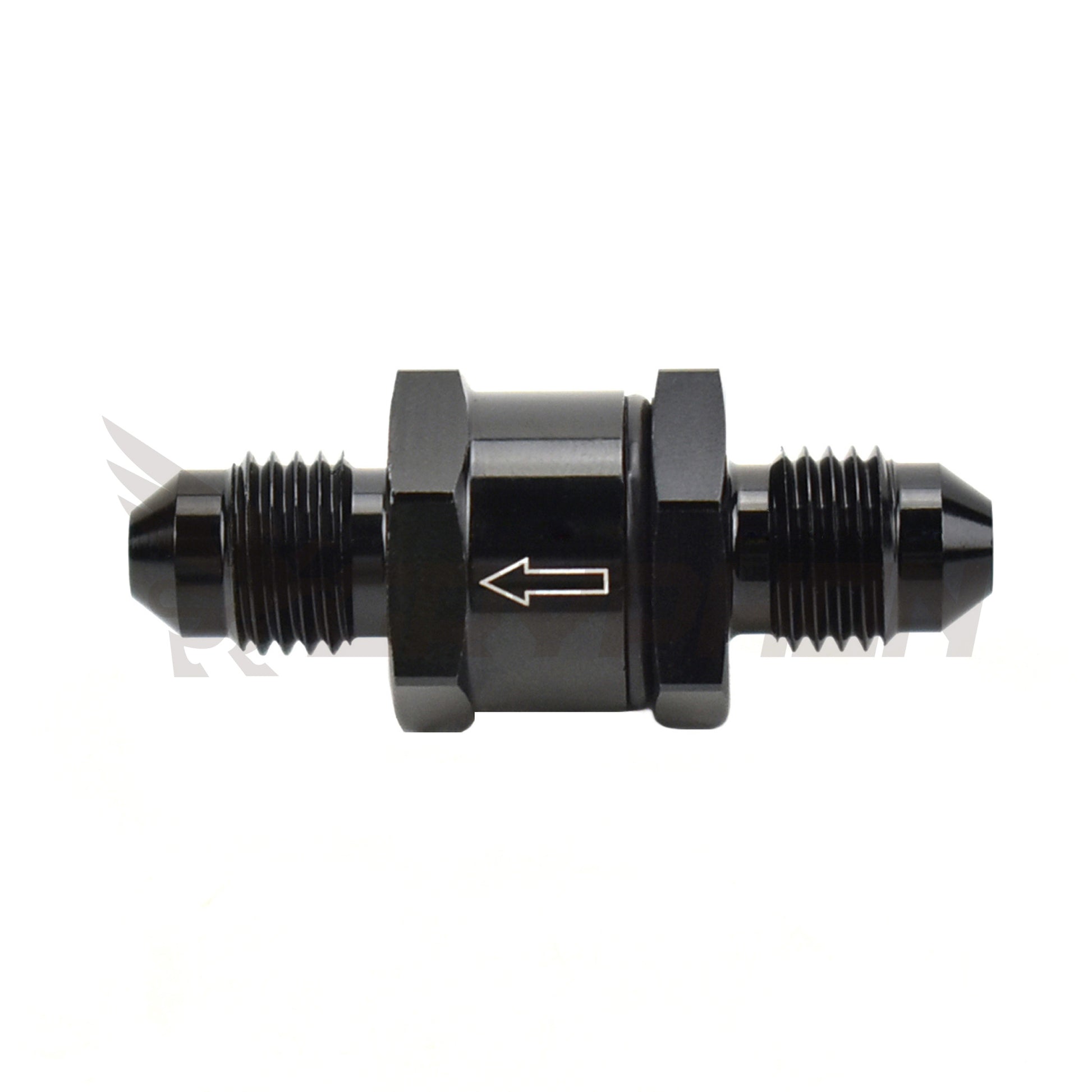

  • This handy device with -4 AN male to male allows the user to install the inline oil filter with any braided line with -4 AN hose end.
  • This handy device with -4 AN male to male allows the user to install the inline oil filter with any braided line with -4 AN hose end.
  • This handy device with -4 AN male to male allows the user to install the inline oil filter with any braided line with -4 AN hose end.
  • OEM oil pressure sensor retained using tee adapter on Ford Falcon Barra engine
  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 8

Ford Falcon XR6 Garrett G40 G42 G45 Turbo Oil Feed & Return Line Kit

Ford Falcon XR6 Garrett G40 G42 G45 Turbo Oil Feed & Return Line Kit

$174.14 USD
$0.00 USD $174.14 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This turbo oil feed and return line kit is designed for Ford Falcon XR6 Turbo and FPV BA, BF, FG and FG-X Barra 4.0L engines upgraded with a Garrett G-Series G40, G42 or G45 turbocharger in a Top Mount configuration. It combines the pressurized oil feed and gravity oil return circuits in one matched installation kit.

A Top Mount turbo installation changes the position and routing of both oil connections, making the original rigid lines difficult to align or reuse. The raised turbo position also requires a suitable gravity-return path between the turbocharger and engine.

The -4AN PTFE oil feed line connects through an oil pressure sensor tee adapter, allowing the factory sensor to remain installed. Oil passes through a serviceable external inline filter before reaching the G40 / G42 / G45 oil feed flange with an integrated 2.0mm restrictor.

The return side uses a flexible 3/4-inch reinforced NBR hose with dedicated turbo-side and Barra engine-side drain flanges. The drain hose must be installed with a continuous downward path toward the engine, without kinks, restrictions or low spots.

Key Features

  • Oil feed and gravity oil return kit for Garrett G40 / G42 / G45
  • -4AN PTFE feed line with external filter and integrated 2.0mm restrictor
  • Oil pressure sensor tee adapter retains the factory sensor
  • 3/4-inch reinforced NBR drain hose with CNC aluminum flanges

Not sure which turbo configuration fits your setup? See the Ford Falcon XR6 Turbo Oil & Water Line Guide.

Specifications & Data

Kit Included +

• -4AN PTFE braided stainless steel turbo oil feed line
• Oil pressure sensor tee adapter
• Serviceable external inline oil filter
• G40 / G42 / G45 turbo oil feed flange with integrated 2.0mm restrictor
• 3/4-inch reinforced NBR turbo oil drain hose
• CNC-machined aluminum turbo-side drain flange
• CNC-machined aluminum Barra engine-side drain flange
• Oil-resistant flange gaskets
• Hose clamps and mounting bolts

Vehicle Compatibility +

• Make: Ford / FPV
• Model: Falcon
• Series: BA / BF / FG / FG-X
• Variant: XR6 / G6E / F6 / F6-E / Force 6 / Typhoon
• Engine: 240T / 245T / 270T / 310T 4.0L Barra Turbo I6

Turbo Compatibility +

• Turbo Fitment: Garrett G-Series G40 / G42 / G45 (All Variants)

Product Specifications +

• Oil Feed Size: -4AN
• Feed Hose: Heat-resistant PTFE core with 304 stainless steel outer braid
• Turbo Feed Connection: G40 / G42 / G45 oil feed flange
• Turbo-Side Restrictor: 2.0mm
• Oil Filter: Serviceable external inline filter
• Engine Feed Connection: Oil pressure sensor tee adapter
• Sensor Retention: Retains the factory oil pressure sensor
• Oil Drain Size: 3/4 inch
• Drain Hose: Reinforced oil-resistant NBR
• Drain Type: Gravity turbo oil return
• Drain Flanges: CNC-machined aluminum
• Routing: Top Mount configuration
• Installation Requirement: Continuous downward drain routing without kinks, restrictions or low spots
