Ford Falcon XR6 Garrett GT42R Turbo Oil Drain Hose Kit | Top Mount

Ford Falcon XR6 Garrett GT42R Turbo Oil Drain Hose Kit | Top Mount

$125.12 USD
$125.12 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This turbo oil drain hose kit is designed for Ford Falcon XR6 Turbo and FPV BA, BF, FG and FG-X Barra 4.0L engines fitted with a Garrett GT42R, including GT4202R and GT4294R, in a Top Mount configuration.

A Top Mount conversion changes the position and angle of the turbo oil outlet, making the original rigid drain pipe difficult to align or reuse. Because turbo oil return relies on gravity rather than oil pressure, the hose must provide a clear downward path from the turbocharger to the engine.

This GryphonTek kit uses a flexible 3/4-inch reinforced NBR hose with dedicated GT42R turbo-side and Barra engine-side drain flanges. The flexible hose allows routing adjustment between the raised turbo position and the factory engine return location.

For proper drainage, the turbocharger CHRA must be correctly clocked and the hose must be installed with a continuous downward slope. Avoid kinks, restrictions, sharp bends and low spots that may allow oil to collect inside the return line.

Key Features

  • Designed for Garrett GT42R Top Mount installations
  • 3/4-inch reinforced NBR hose for gravity oil return
  • Dedicated GT42R turbo-side and Barra engine-side drain flanges
  • Flexible routing between the raised turbo and factory engine return location

Not sure which turbo configuration fits your setup? See the Ford Falcon XR6 Turbo Oil & Water Line Guide.

Specifications & Data

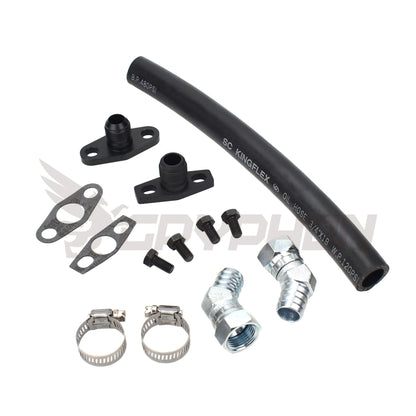

Kit Included +

• 3/4-inch reinforced NBR turbo oil drain hose
• CNC-machined aluminum GT42R turbo-side drain flange
• CNC-machined aluminum Barra engine-side drain flange
• Oil-resistant flange gaskets
• Hose clamps
• Mounting bolts

Vehicle Compatibility +

• Make: Ford / FPV
• Model: Falcon
• Series: BA / BF / FG / FG-X
• Variant: XR6 / G6E / F6 / F6-E / Force 6 / Typhoon
• Engine: 240T / 245T / 270T / 310T 4.0L Barra Turbo I6

Turbo Compatibility +

• Turbo Fitment: Garrett GT42R (GT4294R / GT4202R)

Product Specifications +

• Hose Size: 3/4 inch
• Hose Material: Reinforced oil-resistant NBR
• Drain Type: Gravity turbo oil return
• Turbo Connection: GT42R oil outlet flange
• Engine Connection: Barra engine-side drain flange
• Flange Material: CNC-machined aluminum
• Routing: Top Mount configuration
• Installation Requirement: Continuous downward routing without kinks, restrictions or low spots
