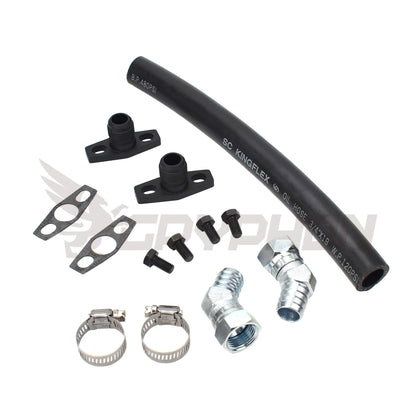

• Turbo Oil Drain Hose Kit Ford Falcon XR6 FG Garrett GT3576R
1 2

Ford Falcon XR6 Garrett G35 Turbo Oil Drain Hose Kit | Barra 4.0L

Ford Falcon XR6 Garrett G35 Turbo Oil Drain Hose Kit | Barra 4.0L

$125.21 USD
$125.21 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This turbo oil drain hose kit is designed for Ford Falcon XR6 Turbo and FPV Barra 4.0L engines upgraded with a Garrett G-Series G35-900 or G35-1050 turbocharger. It replaces the rigid turbo oil return assembly with a flexible reinforced NBR hose, CNC-machined aluminum flanges and the required sealing and mounting hardware.

Turbo upgrades and manifold changes can alter the position and alignment of the turbo oil outlet. Reusing a rigid factory return pipe in a modified installation may create alignment stress, sealing difficulties or an unsuitable drain path between the turbocharger and engine.

The GryphonTek kit uses a 3/4-inch oil-resistant NBR hose between dedicated G35 turbo-side and Barra engine-side drain flanges. The flexible hose allows the return path to be routed for the upgraded turbo position.

Turbo oil return is gravity-fed. The hose must be installed with a continuous downward path toward the engine, without kinks, restrictions or low spots that can retain oil.

Key Features

  • Designed for Garrett G35-900 / G35-1050 Barra upgrade installations
  • 3/4-inch reinforced oil-resistant NBR drain hose
  • CNC-machined aluminum turbo-side and engine-side drain flanges
  • Flexible gravity-return configuration for modified turbo routing

Not sure which turbo configuration fits your setup? See the Ford Falcon XR6 Turbo Oil & Water Line Guide.

Specifications & Data

Kit Included +

• 3/4-inch reinforced NBR turbo oil drain hose
• CNC-machined aluminum G35 turbo-side drain flange
• CNC-machined aluminum Barra engine-side drain flange
• Oil-resistant flange gaskets
• Hose clamps
• Mounting bolts

Vehicle Compatibility +

• Make: Ford / FPV
• Model: Falcon
• Series: BA / BF / FG / FG-X
• Variant: XR6 / G6E / F6 / F6-E / Force 6 / Typhoon
• Engine: 240T / 245T / 270T / 310T 4.0L Barra Turbo I6

Turbo Compatibility +

• Turbo Fitment: Garrett G-Series G35 (G35-900 / G35-1050)

Product Specifications +

• Hose Size: 3/4 inch
• Hose Material: Reinforced oil-resistant NBR
• Drain Type: Gravity turbo oil return
• Flange Material: CNC-machined 6061-T6 aluminum
• Turbo Connection: G35 turbo oil outlet flange
• Engine Connection: Barra engine-side drain flange
• Installation Requirement: Continuous downward routing without kinks or low spots
