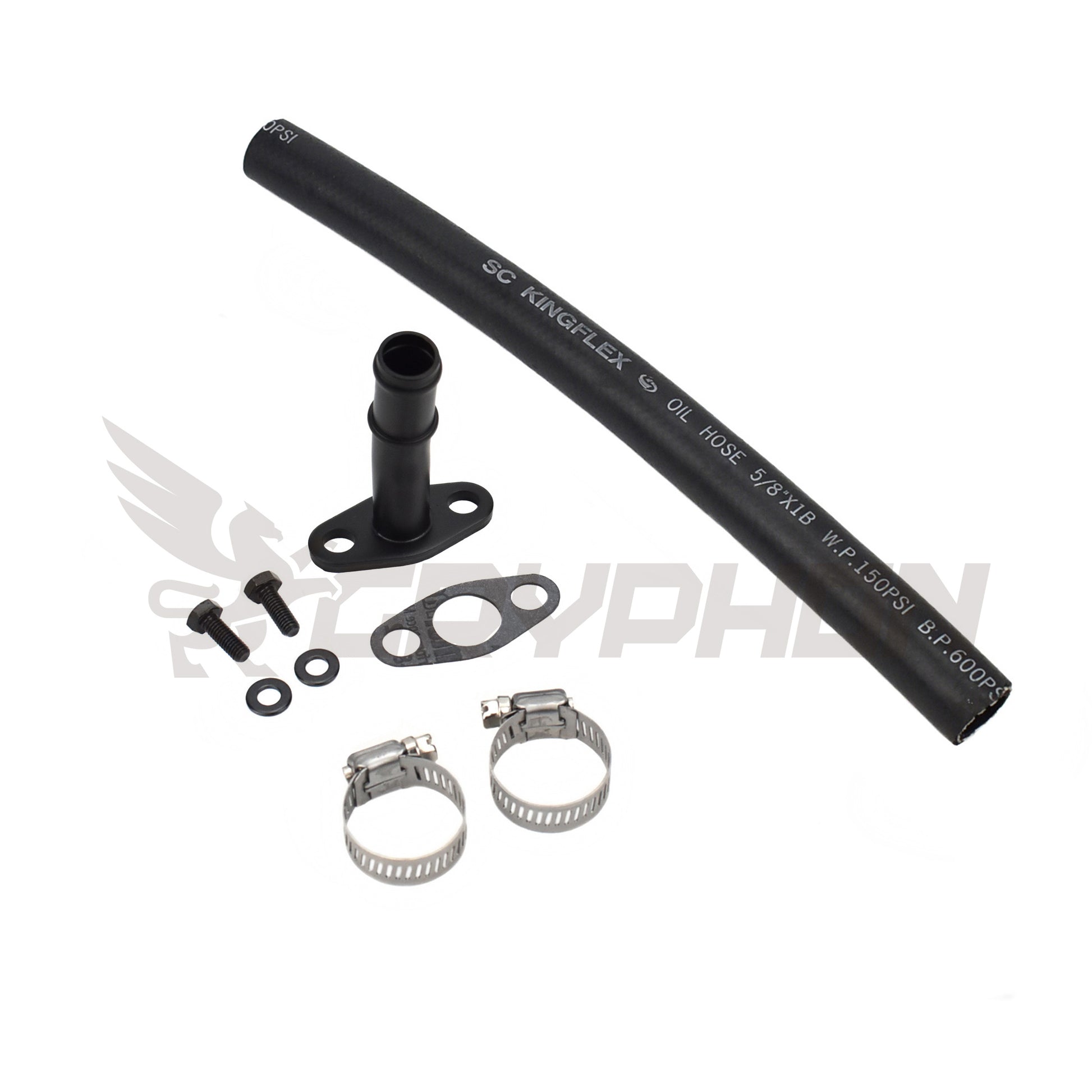

• GryphonTek Complete Turbo Oil Drain Hose Kit for Dodge Neon SRT-4 and Chrysler PT Cruiser GT - Fits TD04LR and Stage 3 TD05HR.
1 2

Dodge SRT-4 & PT Cruiser Turbo Oil Drain Hose Kit | TD04LR / TD05HR

Dodge SRT-4 & PT Cruiser Turbo Oil Drain Hose Kit | TD04LR / TD05HR

$89.34 USD
$0.00 USD $89.34 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This turbo oil drain hose kit is designed for Dodge Neon SRT-4 and Chrysler PT Cruiser 2.4L Turbo applications using the factory TD04LR-16GK or Mopar Stage 3 TD05HR-15GK2 turbocharger. It replaces the original turbo oil return hose and drain pipe assembly with application-specific components designed to maintain a stable gravity-fed oil return path.

The factory rubber drain section is exposed to continuous exhaust-side heat, engine movement and oil vapour. Over time, the hose may harden, crack or lose flexibility, while disturbed flange connections may begin to seep after turbo removal or servicing.

The GryphonTek kit uses a reinforced high-temperature NBR drain hose, corrosion-resistant steel drain pipe and Interface N-8092 gasket. The flexible hose section accommodates normal engine movement while the formed drain pipe maintains the required connection between the turbocharger and engine-side oil return.

Key Features

  • Replaces the original turbo oil drain hose and steel return pipe assembly
  • Reinforced oil-resistant NBR hose withstands engine-bay heat and movement
  • Electro-black coated steel drain pipe provides corrosion-resistant construction
  • Fits both factory TD04LR and Mopar Stage 3 TD05HR turbo configurations

Install the drain assembly without kinks, low points or upward sections. Turbo oil return relies on gravity, so the hose and pipe must maintain a continuous downward path toward the engine.

For turbo identification and kit selection, view the Dodge SRT-4 & PT Cruiser Turbo Oil & Water Line Guide.

Specifications & Data

Kit Included +

• Reinforced high-temperature NBR turbo oil drain hose
• Electro-black coated steel turbo oil drain pipe
• Interface N-8092 non-asbestos turbo drain gasket, 1mm
• Stainless steel hose clamps
• Class 8.8 mounting bolts

Vehicle Compatibility +

• Make: Dodge / Chrysler
• Models: Neon SRT-4 (2003–2005), PT Cruiser GT (2003–2009)
• Engine: 2.4L Turbocharged I4 (EDV / EDT)

Turbo Compatibility +

• Turbo: Stock TD04LR-16GK / Mopar Stage 3 TD05HR-15GK2

Product Specifications +

• Oil Drain Hose:
Reinforced high-temperature, oil-resistant NBR

• Oil Drain Pipe:
Mild steel with anti-corrosion electro-black coating

• Turbo Drain Gasket:
Interface N-8092 non-asbestos gasket, 1mm thickness

• Hose Clamps:
Stainless steel

• Mounting Hardware:
Class 8.8 steel bolts

• Installation Type:
Application-specific replacement for the original turbo oil drain hose and return pipe assembly

• Oil Return Method:
Gravity-fed turbo oil return
