Dodge SRT-4 & PT Cruiser Garrett GT30R GT35R Turbo Oil Drain Hose Kit

Dodge SRT-4 & PT Cruiser Garrett GT30R GT35R Turbo Oil Drain Hose Kit

$82.16 USD
$0.00 USD $82.16 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This turbo oil drain hose kit is designed for Dodge Neon SRT-4 and Chrysler PT Cruiser 2.4L Turbo applications converted to a Garrett GT30R or GT35R turbocharger. It connects the Garrett turbo oil drain outlet to the original engine-side oil return location using application-specific drain components.

The factory TD04LR or TD05HR oil return pipe does not directly match the Garrett drain flange spacing or the routing required by a GT30R / GT35R conversion. Using mismatched factory pipes or poorly routed universal hoses can create flange alignment, clearance and gravity-drain problems.

The GryphonTek kit combines a formed steel turbo drain pipe with a reinforced high-temperature NBR hose and Interface N-8092 gasket. The rigid pipe establishes the correct Garrett turbo-side connection, while the flexible hose section accommodates engine movement and installation variation between the turbocharger and engine return point.

Key Features

  • Dedicated oil drain configuration for Garrett GT30R and GT35R conversions
  • Formed steel drain pipe provides the required Garrett flange position and routing
  • Reinforced oil-resistant NBR hose accommodates heat and engine movement
  • Includes gasket, clamps and mounting hardware for the drain assembly

This kit is designed for Garrett GT30R and GT35R turbochargers using the compatible Garrett drain flange configuration. It is not designed for the factory TD04LR-16GK, Mopar Stage 3 TD05HR-15GK2, Garrett G-Series G30 / G35, or turbochargers using a different drain flange.

For turbo identification and kit selection, view the Dodge SRT-4 & PT Cruiser Turbo Oil & Water Line Guide.

Specifications & Data

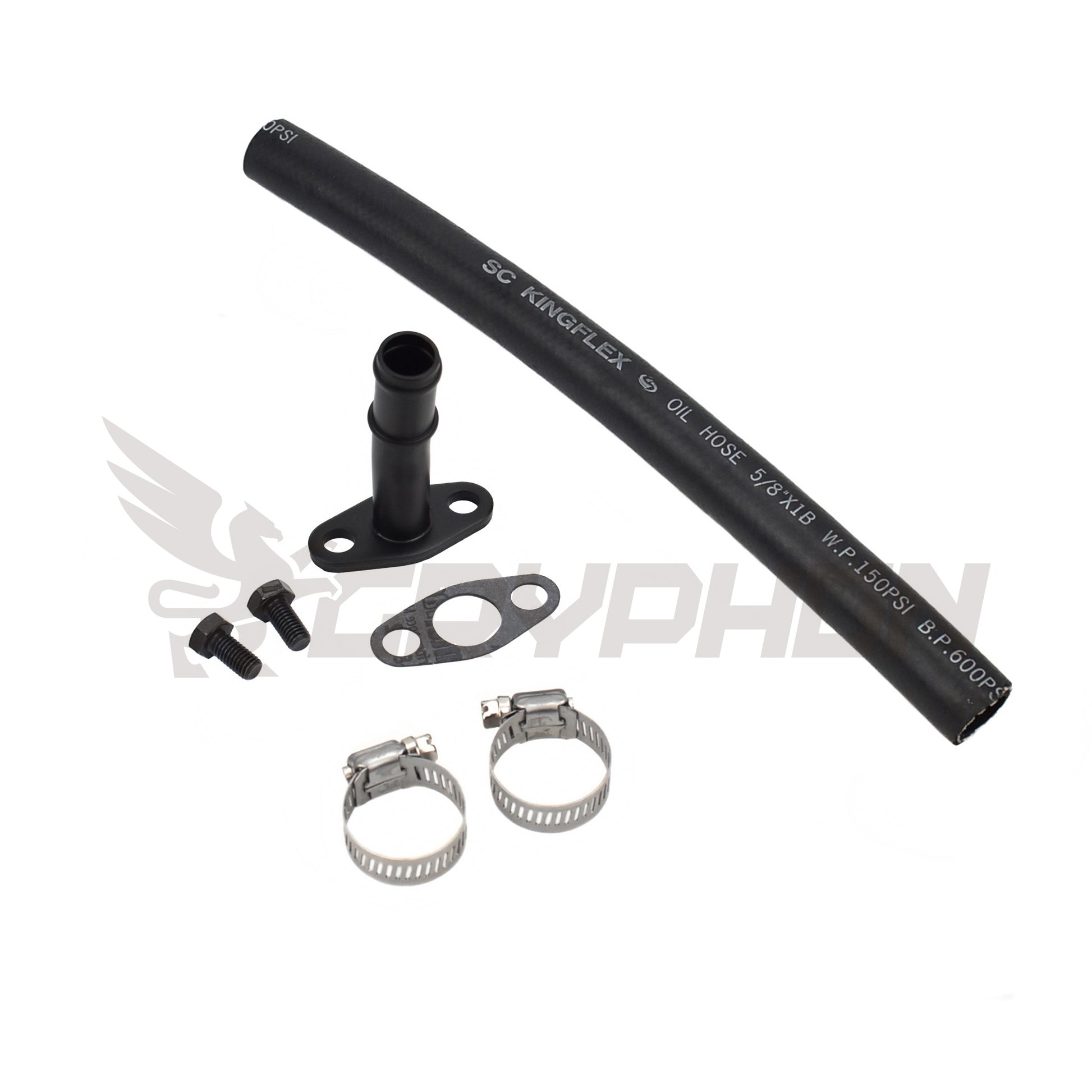

Kit Included +

• Electro-black coated steel turbo oil drain pipe
• Reinforced high-temperature NBR turbo oil drain hose
• Interface N-8092 non-asbestos turbo drain gasket, 1mm
• Stainless steel hose clamps
• Class 8.8 mounting bolts

Vehicle Compatibility +

• Make: Dodge / Chrysler
• Models: Neon SRT-4 (2003–2005), PT Cruiser GT (2003–2009)
• Engine: 2.4L Turbocharged I4 (EDV / EDT)

Turbo Compatibility +

• Garrett Ball-Bearing: GT30R, GT35R

Product Specifications +

• Oil Drain Pipe:
Mild steel with anti-corrosion electro-black coating

• Oil Drain Hose:
Reinforced high-temperature, oil-resistant NBR

• Turbo Drain Gasket:
Interface N-8092 non-asbestos gasket, 1mm thickness

• Hose Clamps:
Stainless steel

• Mounting Hardware:
Class 8.8 steel bolts

• Turbo-Side Connection:
Garrett GT30R / GT35R compatible two-bolt oil drain flange

• Engine-Side Connection:
Application-specific connection to the original engine oil return location

• Oil Return Method:
Gravity-fed turbo oil return

• Installation Type:
Vehicle-specific engine-side routing with Garrett-compatible turbo-side drain connection
