• GryphonTek Turbo Oil Feed Line Kit for Dodge Neon SRT-4 and Chrysler PT Cruiser GT - Garrett GT30R GT35R with 1.0mm Restrictor.
  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 3

Dodge SRT-4 & PT Cruiser Garrett GT30R GT35R Turbo Oil Feed Line Kit

Dodge SRT-4 & PT Cruiser Garrett GT30R GT35R Turbo Oil Feed Line Kit

$87.60 USD
$0.00 USD $87.60 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This turbo oil feed line kit is designed for Dodge Neon SRT-4 and Chrysler PT Cruiser 2.4L Turbo applications converted to a Garrett GT30R or GT35R ball-bearing turbocharger. It provides a dedicated oil supply connection between the engine block and the Garrett turbo oil inlet.

The original TD04LR or TD05HR oil feed pipe does not directly match the Garrett turbo-side oil inlet used in a GT30R or GT35R conversion. Universal hoses and mismatched adapters can also create sealing, routing and oil-control problems around the turbocharger.

The GryphonTek kit uses a flexible -4AN PTFE braided stainless steel line, an application-specific engine block adapter and a Garrett oil inlet fitting with a 1.0mm restrictor. The restrictor meters the oil supplied to the ball-bearing center housing, while the flexible line allows cleaner routing around the manifold and exhaust-side components.

Key Features

  • Dedicated turbo oil feed setup for Garrett GT30R and GT35R conversions
  • -4AN PTFE braided line provides heat-resistant and flexible oil routing
  • Garrett-specific oil inlet fitting includes a 1.0mm restrictor
  • Application-specific engine block adapter connects to the original oil supply point

This kit is not designed for the factory TD04LR-16GK, Mopar Stage 3 TD05HR-15GK2, Garrett G-Series G30 / G35, or turbochargers using a different oil inlet connection.

For turbo identification and kit selection, view the Dodge SRT-4 & PT Cruiser Turbo Oil & Water Line Guide.

Specifications & Data

Kit Included +

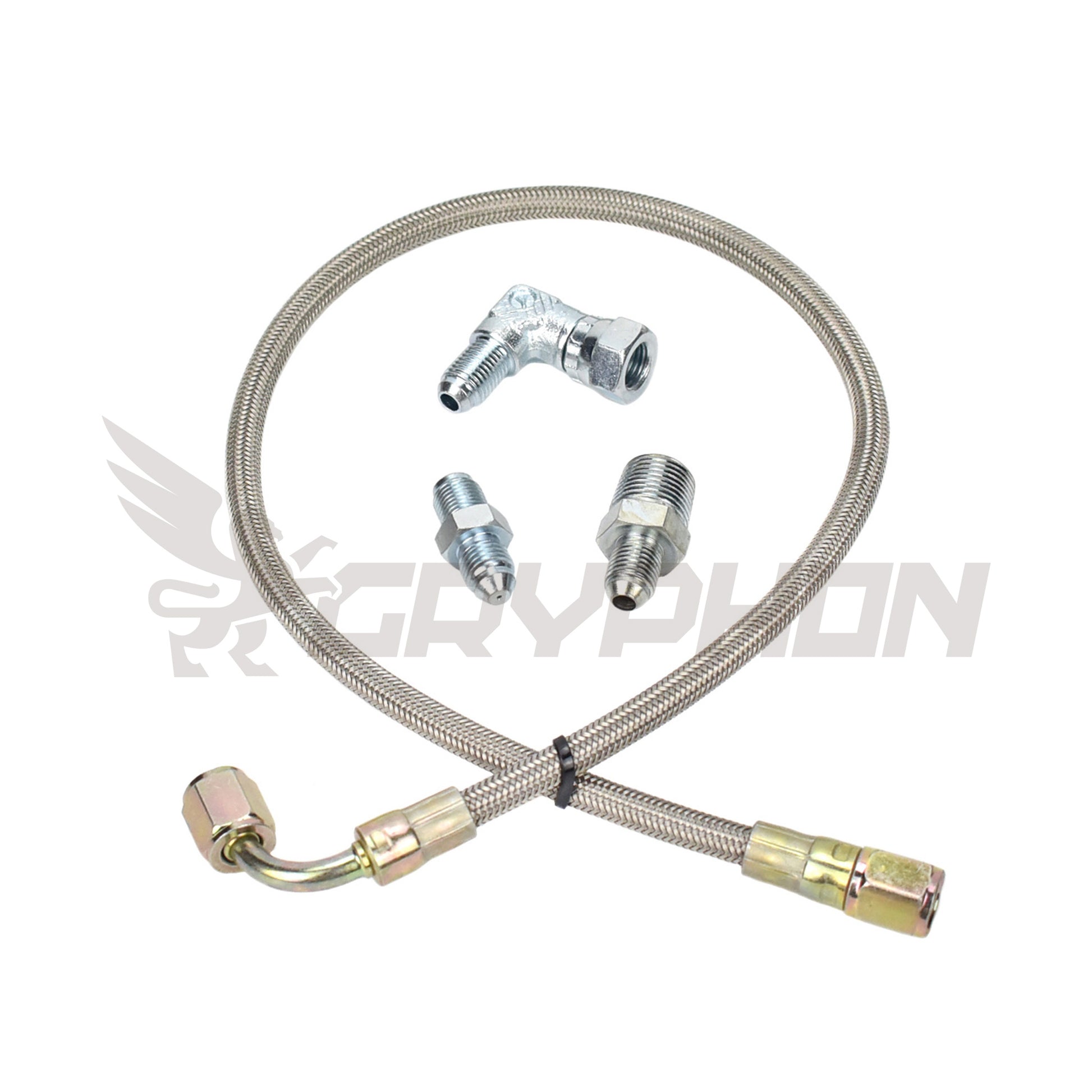

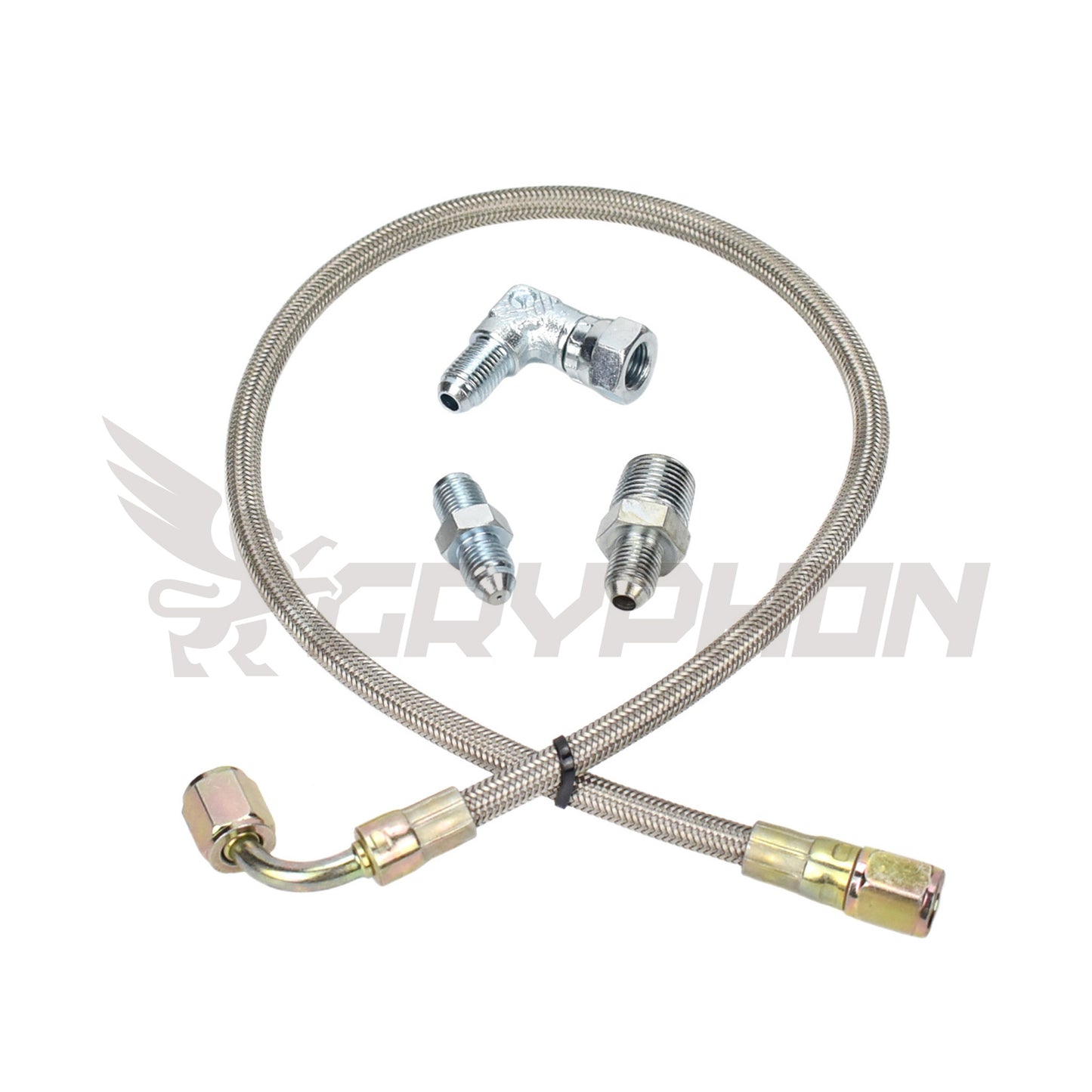

• -4AN PTFE braided stainless steel turbo oil feed line
• Garrett-specific -4AN oil inlet fitting with 1.0mm restrictor
• Engine block oil port adapter with -4AN flare

Vehicle Compatibility +

• Make: Dodge / Chrysler
• Models: Neon SRT-4 (2003–2005), PT Cruiser GT (2003–2009)
• Engine: 2.4L Turbocharged I4 (EDV / EDT)

Turbo Compatibility +

• Garrett Ball-Bearing: GT30R, GT35R

Product Specifications +

• Oil Feed Line Size:
-4AN

• Hose Construction:
PTFE inner hose with 304 stainless steel outer braid

• Engine-Side Connection:
Application-specific engine block oil port adapter with -4AN flare

• Turbo-Side Connection:
Garrett-specific -4AN oil inlet fitting

• Restrictor Size:
1.0mm orifice

• Oil Feed Application:
Garrett GT30R / GT35R ball-bearing turbo conversion

• Installation Type:
Vehicle-specific engine-side connection with Garrett-compatible turbo-side fitting
