• -4AN PTFE braided stainless steel turbo oil feed line
• Garrett-specific -4AN oil inlet fitting with 1.0mm restrictor
• -6AN PTFE braided stainless steel turbo water lines
• Electro-black coated steel turbo oil drain pipe
• Reinforced high-temperature NBR turbo oil drain hose
• Interface N-8092 non-asbestos turbo drain gasket, 1mm
• Engine-side oil and coolant adapters
• Garrett turbo-side coolant fittings and banjo bolts
• High-torque hose clamps
• Annealed copper sealing washers
• Required installation hardware

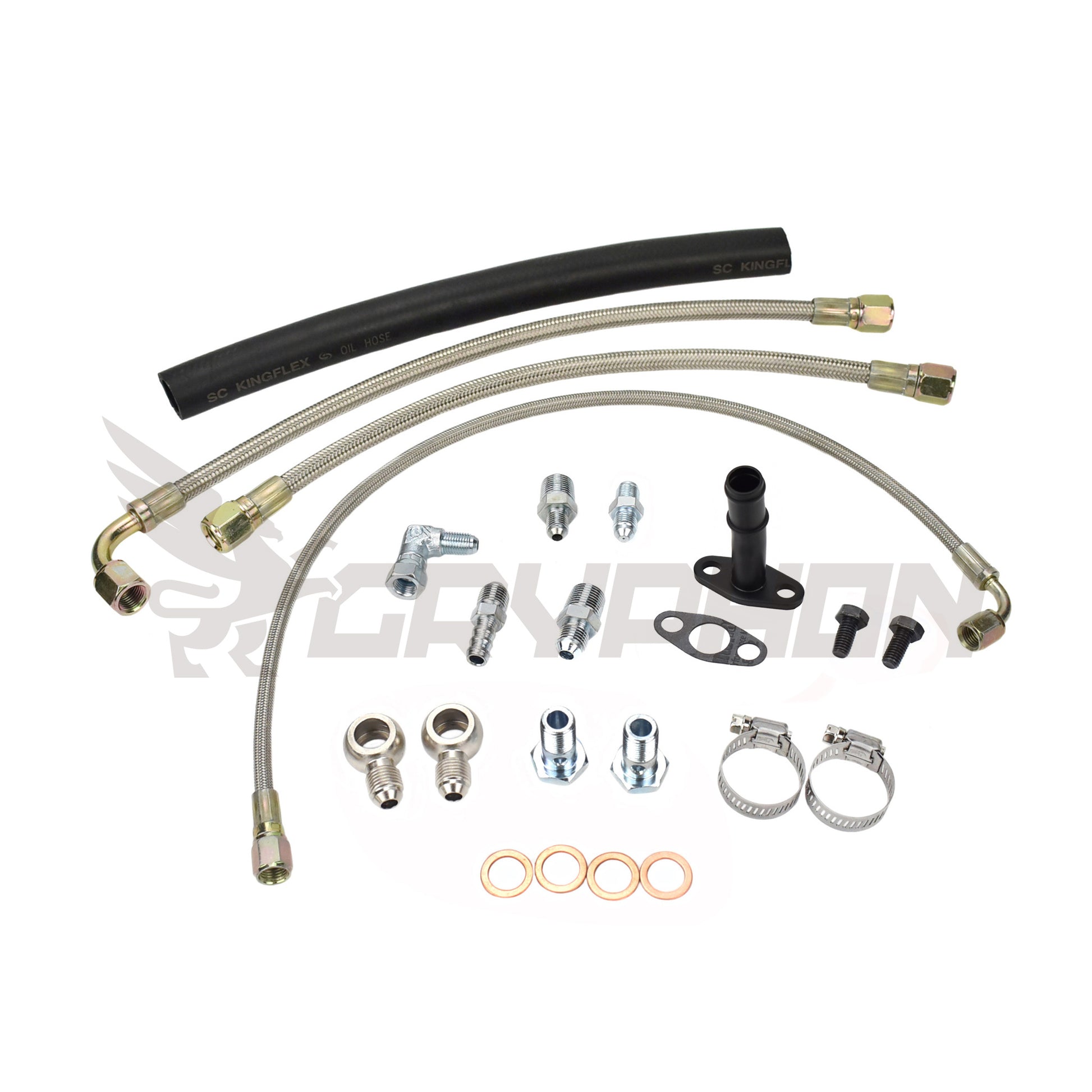

Dodge SRT-4 & PT Cruiser Garrett GT30R GT35R Turbo Oil & Water Line Kit
Dodge SRT-4 & PT Cruiser Garrett GT30R GT35R Turbo Oil & Water Line Kit
Regular price
$145.13 USD
Regular price
$0.00 USD
Sale price
$145.13 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
No PayPal Account Required
We accept Visa, Mastercard, Amex, JCB
Click PayPal, then select "Pay with a Card"
Worldwide
DHL, FEDEX, EMSFast Ship
48H DispatchFree Ship
AU/US & MoreTailored
Customizable30-Day
ReturnsSecured
SSL Encrypted
Technical Description
This complete turbo oil and water line kit is designed for Dodge Neon SRT-4 and Chrysler PT Cruiser 2.4L Turbo applications converted to a water-cooled Garrett GT30R or GT35R ball-bearing turbocharger. It provides the oil feed, oil drain and coolant line components required to connect the Garrett turbo to the vehicle’s engine oil and cooling circuits.
The factory TD04LR and TD05HR plumbing does not directly match the Garrett turbo-side oil inlet, drain flange and coolant connections. Combining mismatched factory pipes or universal hoses can also create routing, sealing and clearance problems around the manifold and exhaust-side components.
The GryphonTek kit uses a -4AN PTFE braided oil feed line with a Garrett-specific 1.0mm restrictor fitting, dual -6AN PTFE braided water lines, and a reinforced NBR oil drain hose connected to a formed steel return pipe. The components are configured to provide a coordinated oil supply, gravity-fed oil return and water-cooling circuit for the GT-series conversion.
Key Features
- Complete oil feed, oil drain and water line package for GT30R and GT35R conversions
- -4AN PTFE oil feed line with a Garrett-specific 1.0mm restrictor fitting
- Dual -6AN PTFE braided water lines for water-cooled ball-bearing center housings
- Garrett-specific drain pipe and reinforced NBR hose maintain a downward oil return path
This kit is not designed for the factory TD04LR-16GK, Mopar Stage 3 TD05HR-15GK2, or Garrett G-Series G30 / G35 turbochargers.
For turbo identification and kit selection, view the Dodge SRT-4 & PT Cruiser Turbo Oil & Water Line Guide.
Specifications & Data
Kit Included
Vehicle Compatibility
Turbo Compatibility
Product Specifications
