• -4AN PTFE braided stainless steel turbo oil feed line
• -6AN PTFE braided stainless steel turbo water lines
• Electro-black coated steel turbo oil drain pipe
• Reinforced high-temperature NBR oil drain hose
• Interface N-8092 non-asbestos turbo drain gasket, 1mm
• Engine block oil feed adapter
• Turbo oil inlet fitting
• Engine-side coolant fittings
• Turbo-side water banjo bolts in the selected thread size
• Copper sealing washers
• Stainless steel hose clamps
• Class 8.8 mounting bolts
• Required installation hardware
Dodge SRT-4 & PT Cruiser Turbo Oil & Water Line Kit | TD04LR / TD05HR
Dodge SRT-4 & PT Cruiser Turbo Oil & Water Line Kit | TD04LR / TD05HR
Regular price
$141.75 USD
Regular price
$0.00 USD
Sale price
$141.75 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
No PayPal Account Required
We accept Visa, Mastercard, Amex, JCB
Click PayPal, then select "Pay with a Card"
Worldwide
DHL, FEDEX, EMSFast Ship
48H DispatchFree Ship
AU/US & MoreTailored
Customizable30-Day
ReturnsSecured
SSL Encrypted
Technical Description

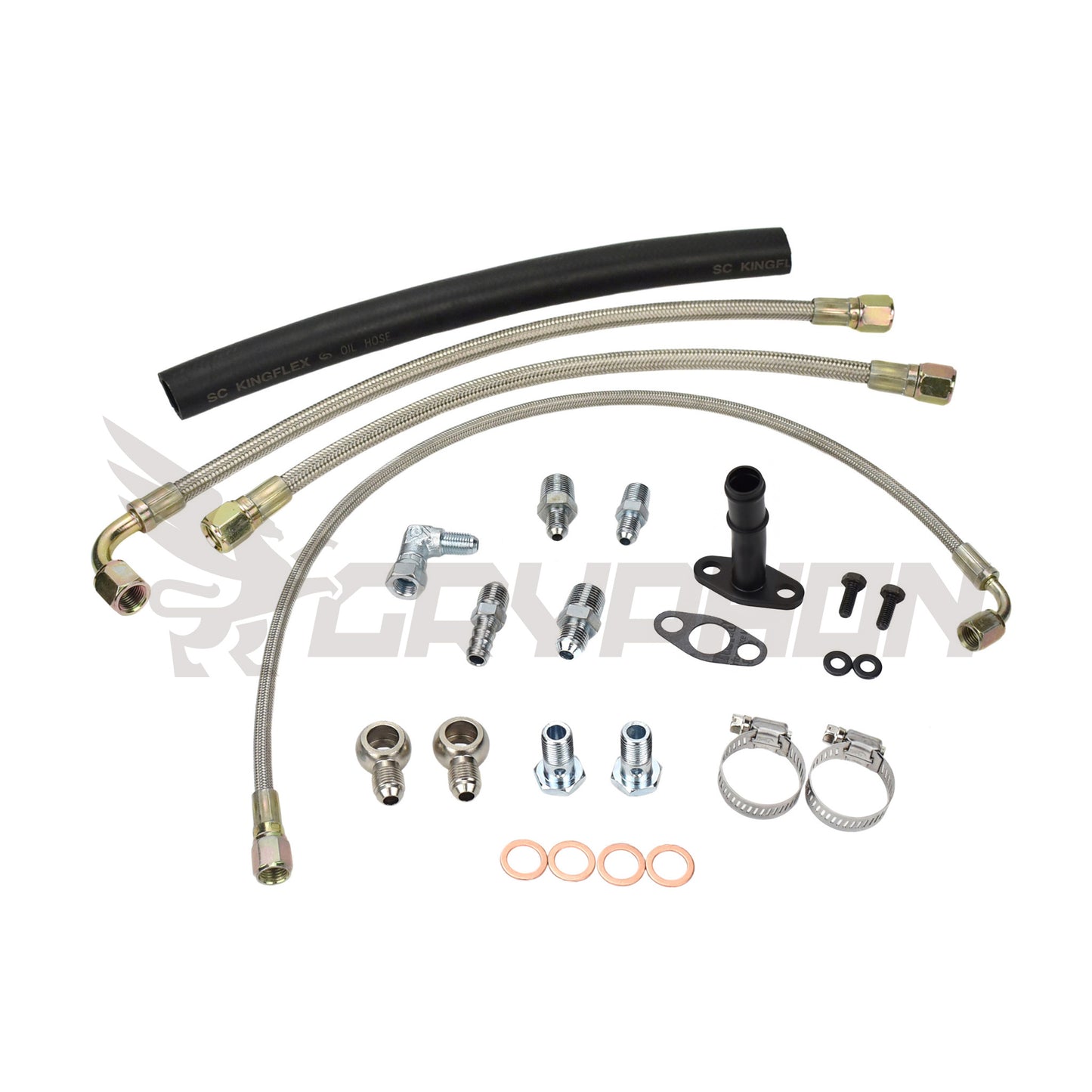

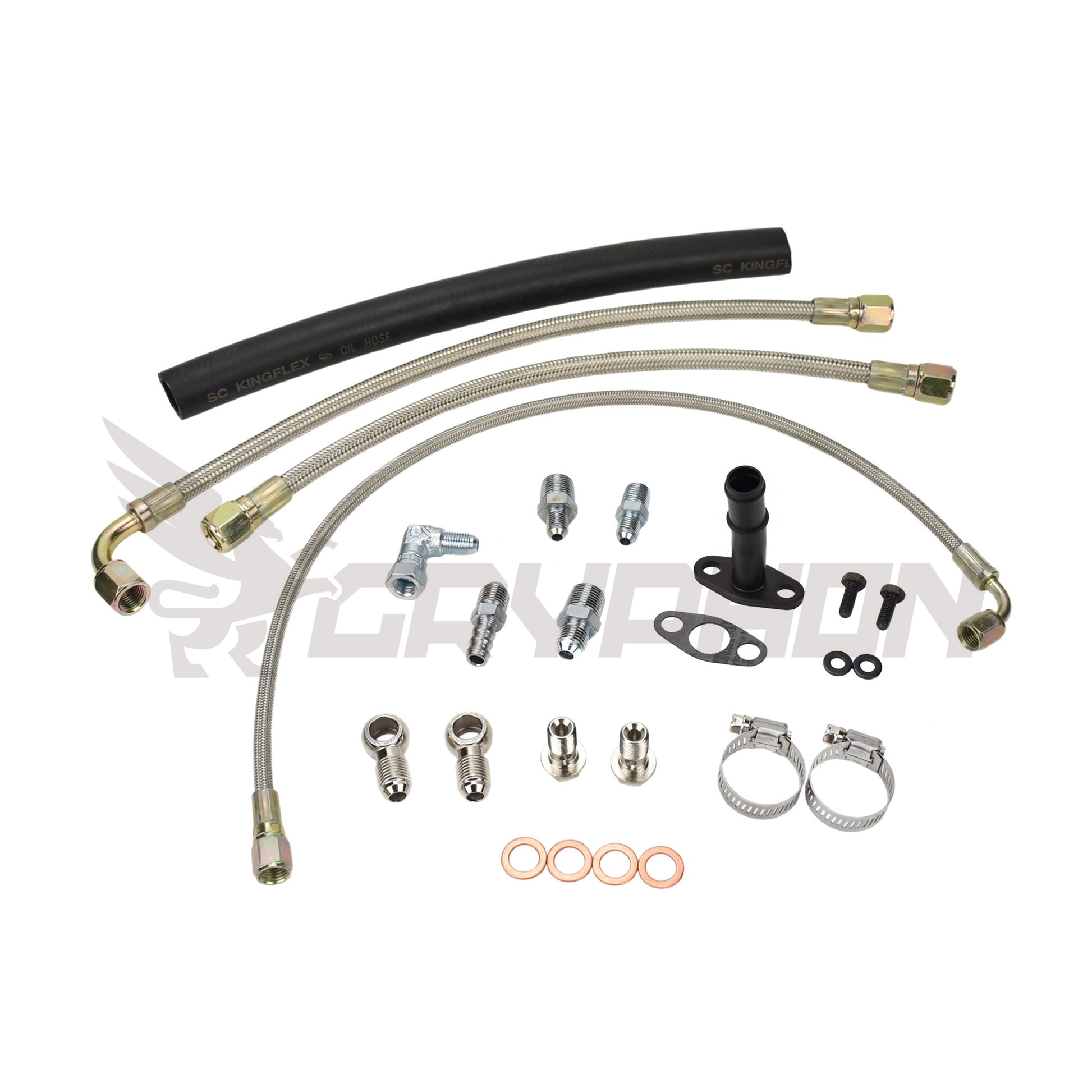

This complete turbo oil and water line kit is designed for Dodge Neon SRT-4 and Chrysler PT Cruiser 2.4L Turbo applications using the factory TD04LR-16GK or Mopar Stage 3 TD05HR-15GK2 turbocharger. It replaces the original turbo oil feed, oil drain and coolant line assemblies with flexible, application-specific components.
The original rigid pipes, rubber drain section and sealing joints are exposed to repeated heat cycles, engine movement and corrosion. As these components age or are disturbed during turbo service, oil or coolant seepage may develop around the pipe connections, banjo fittings, drain hose or flange sealing surfaces.
The GryphonTek kit uses a -4AN PTFE braided oil feed line, -6AN PTFE braided water lines, a reinforced NBR oil drain hose and a corrosion-resistant steel drain pipe. The flexible line design reduces stress on the connection points while maintaining a stable oil supply, coolant circuit and gravity-fed turbo oil return path.
Select the correct turbo type before ordering:
- Factory TD04LR-16GK: M12 x 1.25 turbo water ports
- Mopar Stage 3 TD05HR-15GK2: M14 x 1.5 turbo water ports
The oil feed and oil drain components fit both turbo configurations, but the turbo-side water fittings are different and are not interchangeable.
Key Features
- Complete turbo oil feed, oil drain and coolant line replacement
- Flexible PTFE braided lines reduce stress from rigid factory routing
- Reinforced NBR hose and coated steel pipe support a smooth oil return path
- Available with the correct M12 or M14 water fittings for the selected turbo
Confirm the turbocharger model currently installed on the vehicle before ordering. This kit is not designed for Garrett GT30R or GT35R turbo conversions.
For turbo identification and kit selection, view the Dodge SRT-4 & PT Cruiser Turbo Oil & Water Line Guide.
