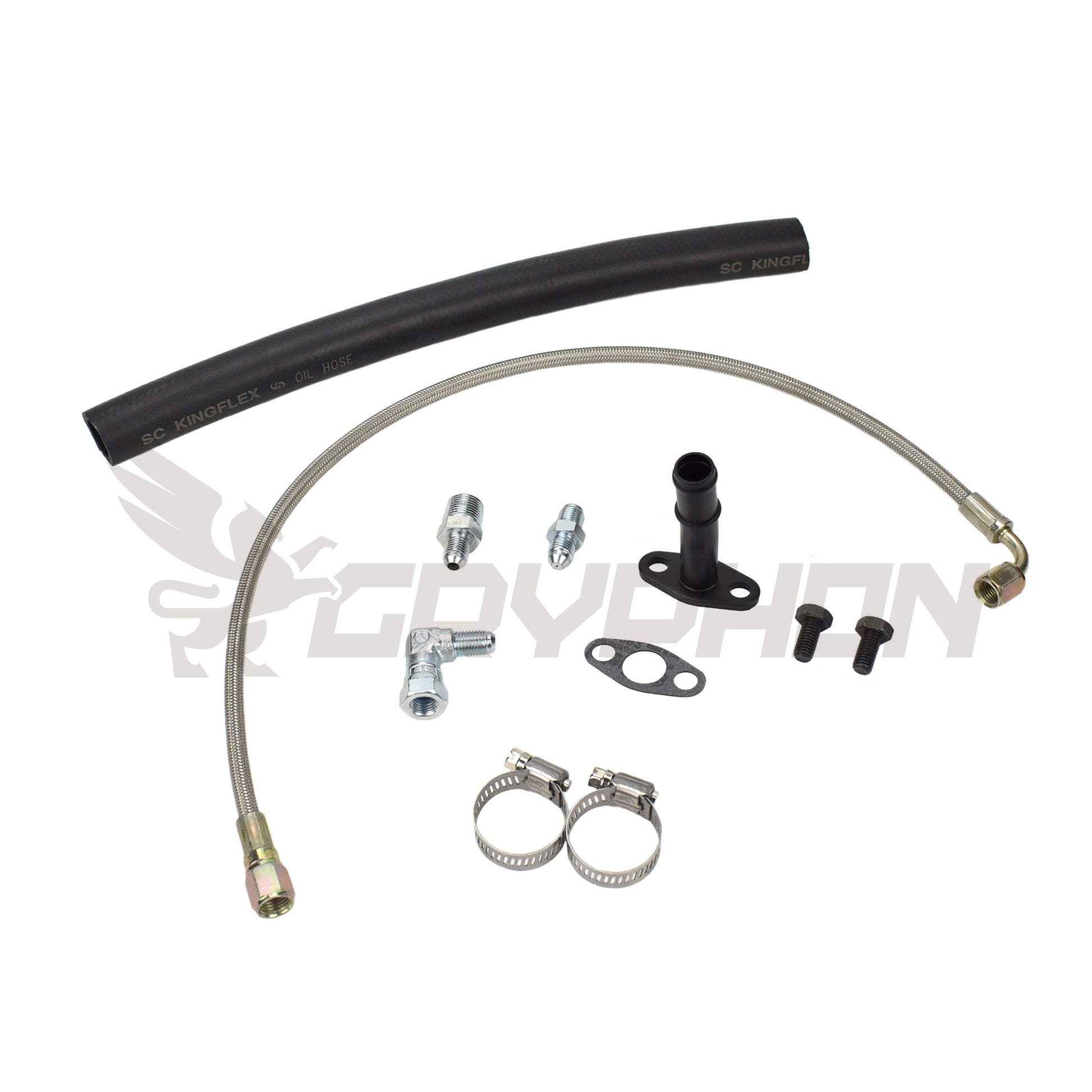

• -4AN PTFE braided stainless steel turbo oil feed line
• Garrett-specific -4AN oil inlet fitting with 1.0mm restrictor
• Electro-black coated steel turbo oil drain pipe
• Reinforced high-temperature NBR turbo oil drain hose
• Interface N-8092 non-asbestos turbo drain gasket, 1mm
• Engine block oil port adapter with -4AN connection
• Hose clamps
• Required fittings and installation hardware
Dodge SRT-4 & PT Cruiser Garrett GT30R GT35R Turbo Oil Feed & Return Line Kit
Dodge SRT-4 & PT Cruiser Garrett GT30R GT35R Turbo Oil Feed & Return Line Kit
Regular price
$106.65 USD
Regular price
$0.00 USD
Sale price
$106.65 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
No PayPal Account Required
We accept Visa, Mastercard, Amex, JCB
Click PayPal, then select "Pay with a Card"
Worldwide
DHL, FEDEX, EMSFast Ship
48H DispatchFree Ship
AU/US & MoreTailored
Customizable30-Day
ReturnsSecured
SSL Encrypted
Technical Description
This complete turbo oil feed and return line kit is designed for Dodge Neon SRT-4 and Chrysler PT Cruiser 2.4L Turbo applications converted to a Garrett GT30R or GT35R ball-bearing turbocharger. It provides the components required to connect the engine oil supply and return points to the Garrett turbocharger.
The factory TD04LR and TD05HR oil lines do not directly match the Garrett turbo oil inlet or drain flange used in a GT30R / GT35R conversion. Reusing mismatched factory pipes or combining universal hoses and adapters can create sealing, alignment, clearance and oil return problems.
The GryphonTek kit uses a flexible -4AN PTFE braided oil feed line with a Garrett-specific 1.0mm restrictor fitting. The return side combines a formed steel drain pipe, reinforced high-temperature NBR hose and Interface N-8092 gasket to provide a coordinated gravity-fed oil return path between the turbocharger and engine.
Key Features
- Complete turbo oil feed and return package for GT30R and GT35R conversions
- -4AN PTFE braided feed line with a Garrett-specific 1.0mm restrictor
- Formed steel drain pipe provides the required Garrett flange connection and routing
- Reinforced NBR return hose accommodates engine movement and installation variation
This kit is designed for compatible Garrett GT30R and GT35R turbochargers. It is not designed for the factory TD04LR-16GK, Mopar Stage 3 TD05HR-15GK2, Garrett G-Series G30 / G35, or turbochargers using different oil inlet or drain flange connections.
For turbo identification and kit selection, view the Dodge SRT-4 & PT Cruiser Turbo Oil & Water Line Guide.
Specifications & Data
Kit Included
Vehicle Compatibility
Turbo Compatibility
Product Specifications
