Citroën 1.6THP Complete Turbo Oil Feed & Return Line Kit | C4 C5 DS3 DS4 DS5

Citroën 1.6THP Complete Turbo Oil Feed & Return Line Kit | C4 C5 DS3 DS4 DS5

$114.14 USD
$0.00 USD $114.14 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

24H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

The total reliability solution to eliminate "Burning Oil" risks and cabin odors. The Citroën 1.6THP (EP6) engine operates in an extremely high-temperature environment that inevitably destroys factory plumbing. The rigid oil feed (OE #037956) fails at its O-ring and crimp points, while the rubber drain hose (OE #037979) hardens and seeps oil. This GryphonTek Signature Series Complete Kit is the professional upgrade—replacing failure-prone OEM hardware with motorsport-grade PTFE Braided Stainless Steel and High-Temp Silicone.

  • Double Leak Protection: Replaces both the high-pressure feed and the high-flow return circuit. Our flexible designs eliminate the "rotation leak" phenomenon at both factory crimps and rubber junctions.
  • Precision Pressure & Flow: Features a 1.8mm restricted banjo bolt for the turbo side to protect internal seals, paired with a billet aluminum high-flow return fitting for unrestricted drainage.
  • Industrial-Grade Thermal Defense: Includes a high-temp PTFE core and reinforced silicone protected by an Aluminum Foil Corrugated Sleeve to survive intense radiant heat.
  • Direct Citroën Fitment: A 100% plug-and-play refresh for C4, C5, DS3, DS4, and DS5 models. Designed to navigate the specific EP6 engine bay geometry perfectly.

GryphonTek vs. Factory Hardware: The Engineered Fix

Feature

Factory Rigid/Rubber Setup

GryphonTek Complete Kit

Feed Design

Rigid Metal + O-ring (Leak prone)

PTFE Braided Stainless (Flexible)

Drain Design

Standard Rubber (Hardens/Cracks)

High-Temp Silicone + Billet Alum

Oil Control

Standard Bolt

1.8mm Precision Restrictor

Heat Shield

Minimal

Aluminum Foil Corrugated Sleeve

Reliability

"Maintenance Item" (Fails often)

Permanent Solution (Lifetime use)

Specifications & Data

Kit Included +

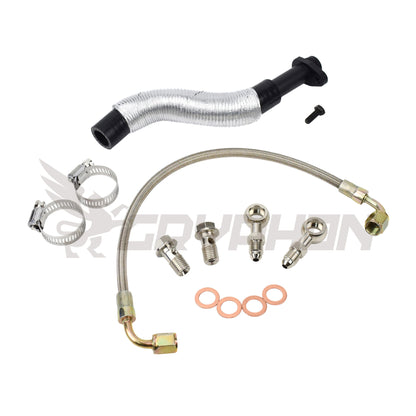

• -4AN PTFE Braided Oil Feed Line (Stainless Steel Braid)
• Restricted Banjo Bolt (1.8mm Orifice for Turbo Side)
• Unrestricted Banjo Bolt (for Engine Block Side)
• Custom High-Temp Silicone Oil Drain Hose
• 6061-T6 Billet Aluminum Drain Fitting
• Aluminum Foil Corrugated Protective Sleeve (for Drain)
• High-Temp Viton O-Ring
• Full Hardware Kit: Copper Washers, Clamps, and Class 8.8 Bolts

Vehicle Compatibility +

• Make: Citroën
• Engine: 1.6THP (EP6DT, EP6CDT, EP6CDTX, EP6DTS)
• Models: C4, C4 Picasso, C5, DS3, DS3 Racing, DS4, DS5

Turbo Compatibility +

• OE References: Replaces #037956 (Feed) and #037979 (Return)
• Turbo Fitment: Optimized for Stock K03 and Upgraded K04 Series

Product Specifications +

• Material Spec: PTFE / 304 Stainless Steel / 6061-T6 Billet / Viton
• Benefit: Eliminates both high-pressure oil spray and low-pressure seepage
• Installation: Direct bolt-on; replaces factory rigid metal and rubber pipes

Why Upgrade / Why Choose +

The 1.6THP "Prince" engine runs notoriously hot. This constant heat soak "cooks" the factory O-rings in the rigid feed line and turns the rubber drain hose into a hard, brittle tube. Once these components lose their elasticity, they begin to seep oil directly onto the turbo and exhaust manifold. This is the primary cause of the "burning oil" smell that ruins the refined cabin atmosphere of your DS or C-series Citroën.

The GryphonTek Complete Kit is the professional choice to stop the leak cycle. By converting the entire oiling loop to a Flexible PTFE and Silicone Architecture, you remove the stress points that cause factory hardware to fail. It ensures your turbo receives perfect, regulated oil pressure while draining back freely to the engine block. Fix it once, fix it right, and restore the mechanical integrity your Citroën deserves.
