• Turbo Oil Feed Line Kit Mazdaspeed Miata 1.8L IHI VJ35
  • PTFE Teflon stainless braided hose for turbo oil water line, heat-resistant and durable
1 3

2004-2005 Mazdaspeed Miata MSM | Turbo Oil Feed Line Kit | IHI VJ35 BP8J

2004-2005 Mazdaspeed Miata MSM | Turbo Oil Feed Line Kit | IHI VJ35 BP8J

$109.97 USD
$0.00 USD $109.97 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

24H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted

Don't let a discontinued factory hard line sideline your rare MSM. The 2004-2005 Mazdaspeed Miata is a modern classic, but its aging factory turbo plumbing is a major liability. The original rigid oil feed pipe (BP8J-14-270A) is notorious for cracking under engine vibration and is nearly impossible to install or remove in the cramped MSM engine bay. This GryphonTek Oil Feed Kit is the professional, 100% bolt-on solution to replace failure-prone OEM hardware with motorsport-grade reliability.

  • The NLA Solution: Specifically engineered to replace the discontinued Mazda factory part (BP8J-14-270A) with a permanent, high-performance alternative.
  • End the Maintenance Nightmare: Flexible PTFE lines make turbo removal and installation significantly easier in the MSM’s famously tight engine bay compared to rigid factory pipes.
  • Vibration Resilient: Unlike factory hard lines that suffer from fatigue cracking, our braided hoses soak up the harmonics of the 1.8L BP engine to prevent leaks.

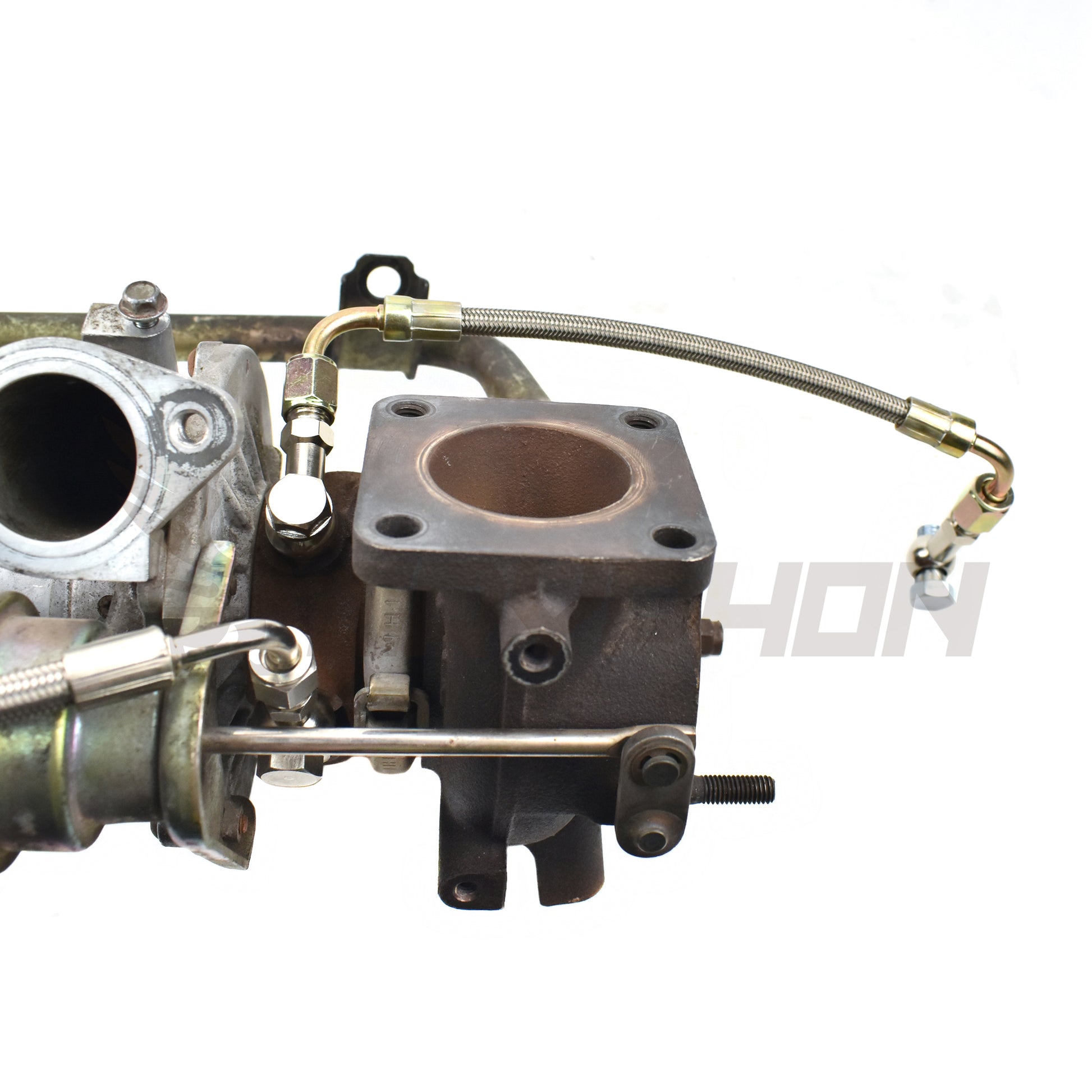

  • Precision VJ35 Fitment: Tailored specifically for the Mazdaspeed Miata’s IHI VJ35 turbocharger—no universal hacks or custom bending required.

Vehicle Compatibility

• Make: Mazda
• Model: Mazdaspeed Miata (MSM)
• Years: 2004, 2005
• Engine: 1.8L BP-4W I4 Turbo

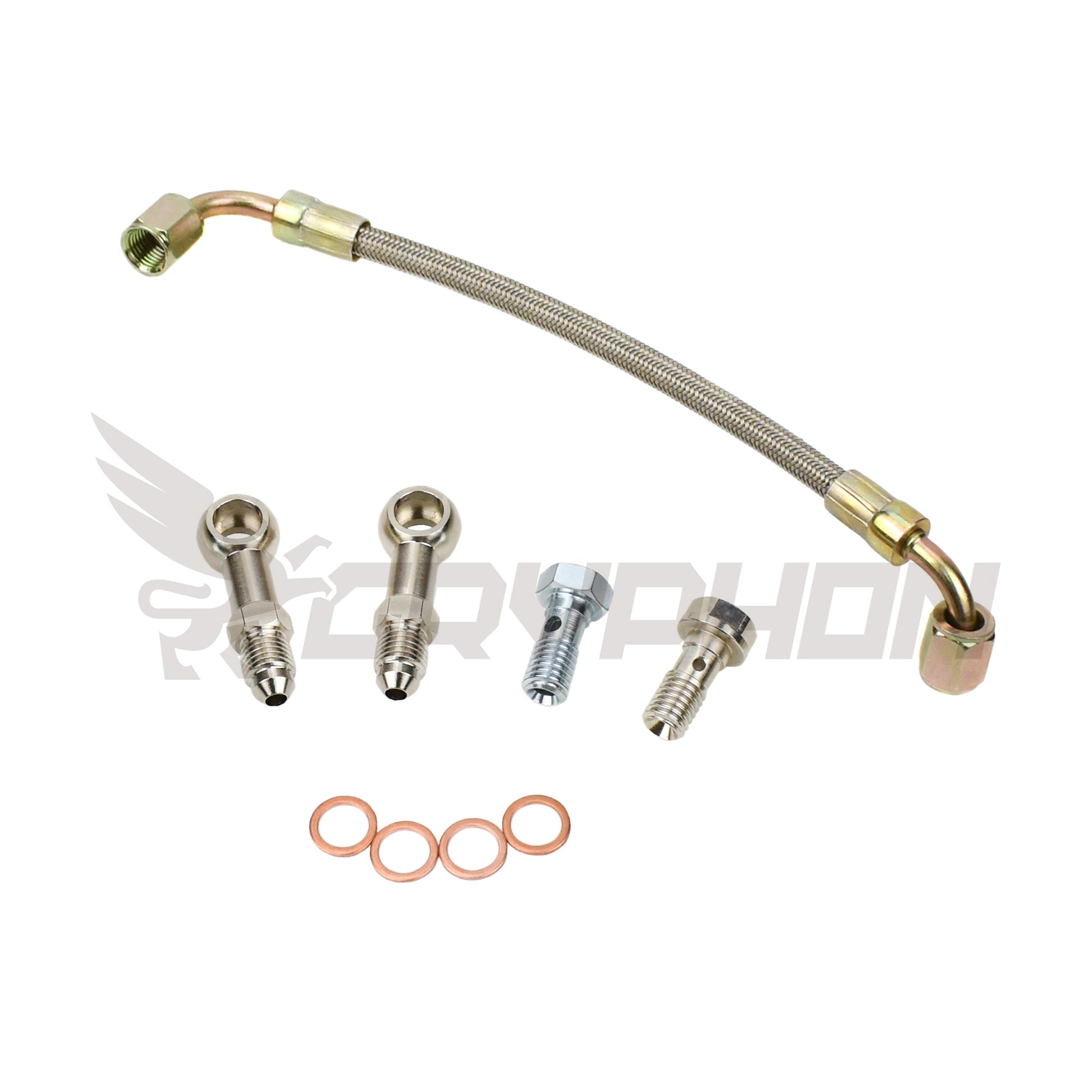

Kit Included

• -4AN PTFE Braided Oil Feed Line (Stainless Steel Braid)
• VJ35 Specific Turbo Inlet Banjo Bolt (1.8mm Restrictor)
• MSM Block Oil Port Banjo Bolt

Product Specifications

• Turbo Model: IHI RHF5 VJ35 (BP8J-13-700)
• Replaces OEM Part Numbers: BP8J-14-270A / BP8J14270A / BP8J14270
• Line Material: PTFE (Teflon) Core with 304 Stainless Steel Braid
• Fittings: Anti-Corrosive Mild Steel
• Feature: Vibration-dampening flexible design
• Installation: 100% Bolt-on (Replaces factory hard pipe)
• Benefit: Eliminates NLA part sourcing issues and prevents fatigue leaks

Why Upgrade / Why Choose

Owning an MSM means managing a unique but aging platform. The factory oil feed relies on a rigid steel pipe that becomes brittle after two decades of intense heat cycles. Because the MSM engine bay traps so much radiant heat around the turbo, these hard lines often develop hairline fractures that lead to oil starvation and bearing failure.

The GryphonTek MSM Oil Feed Kit is a "set and forget" investment for collectors and enthusiasts alike. We use high-temp PTFE (Teflon) because it stays flexible indefinitely, allowing you to snake the line through the tight gaps around the BP-4W head without stress. Protected by 304 Stainless Steel braiding, it handles the heat and pressure of a high-performance build while ensuring your rare VJ35 turbo receives a constant, clean supply of oil.
