Upgrading your Mazda MX-5 Miata MK1, MK2, or MK2.5 with a Garrett GT25R, GT28R turbocharger demands precise oil pressure management.
Ball-bearing GT turbos require a restricted oil supply to maintain optimal lubrication without overwhelming the bearing housing.

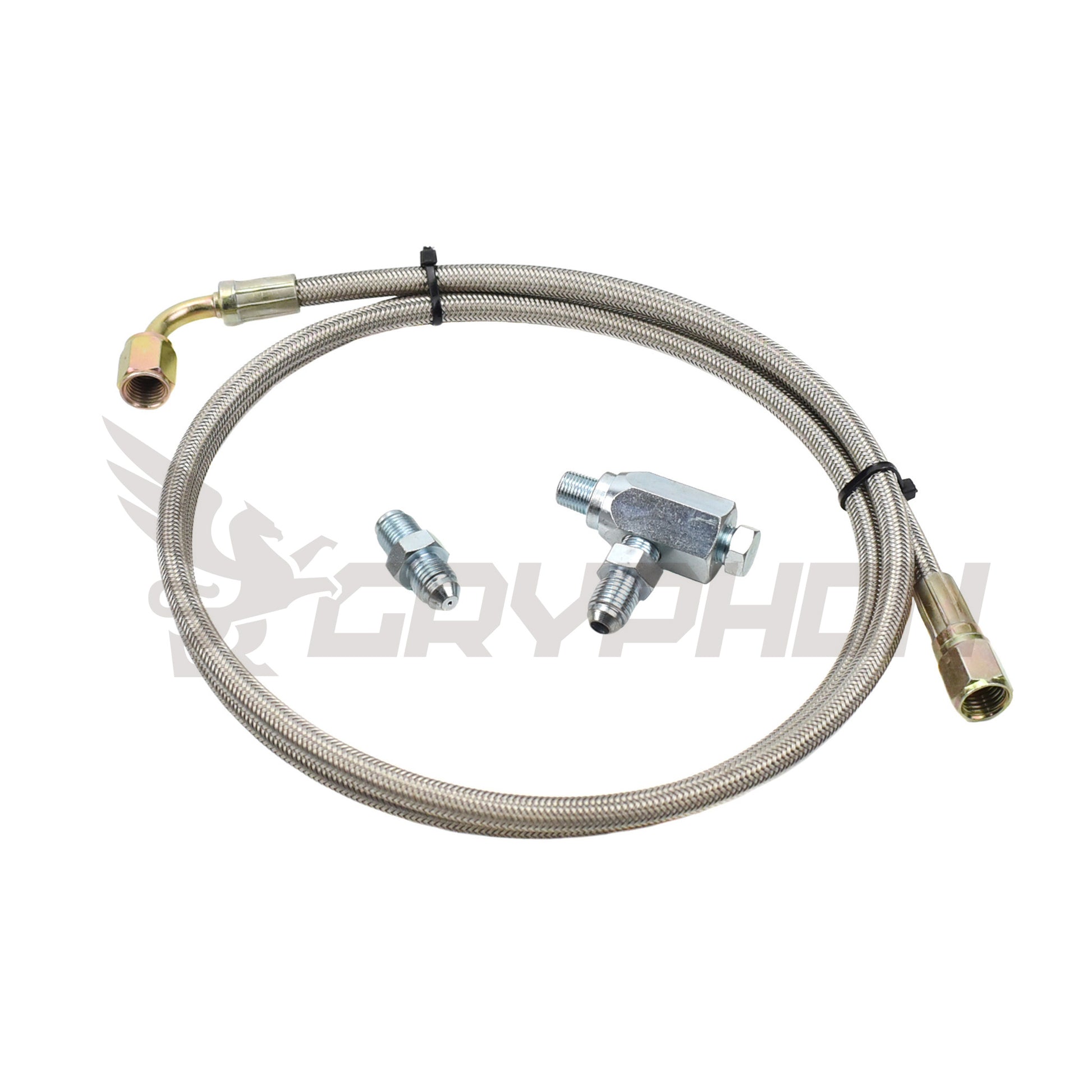

This 4AN PTFE Teflon stainless-braided turbo oil feed line kit is purpose-built for Garrett GT-series ball-bearing turbos, featuring a 1.0 mm restricted adapter fitting with copper crush washer.
It ensures clean, consistent oil flow to the turbo while preventing over-oiling—a common cause of premature seal failure.
Designed for N/A-to-turbo Miata conversions, this kit provides a complete, leak-free oiling path that’s easy to install and built to last under boost.
‣ Application: Mazda MX-5 Miata MK1, MK2, MK2.5 with Garrett GT25R / GT28R turbo conversion

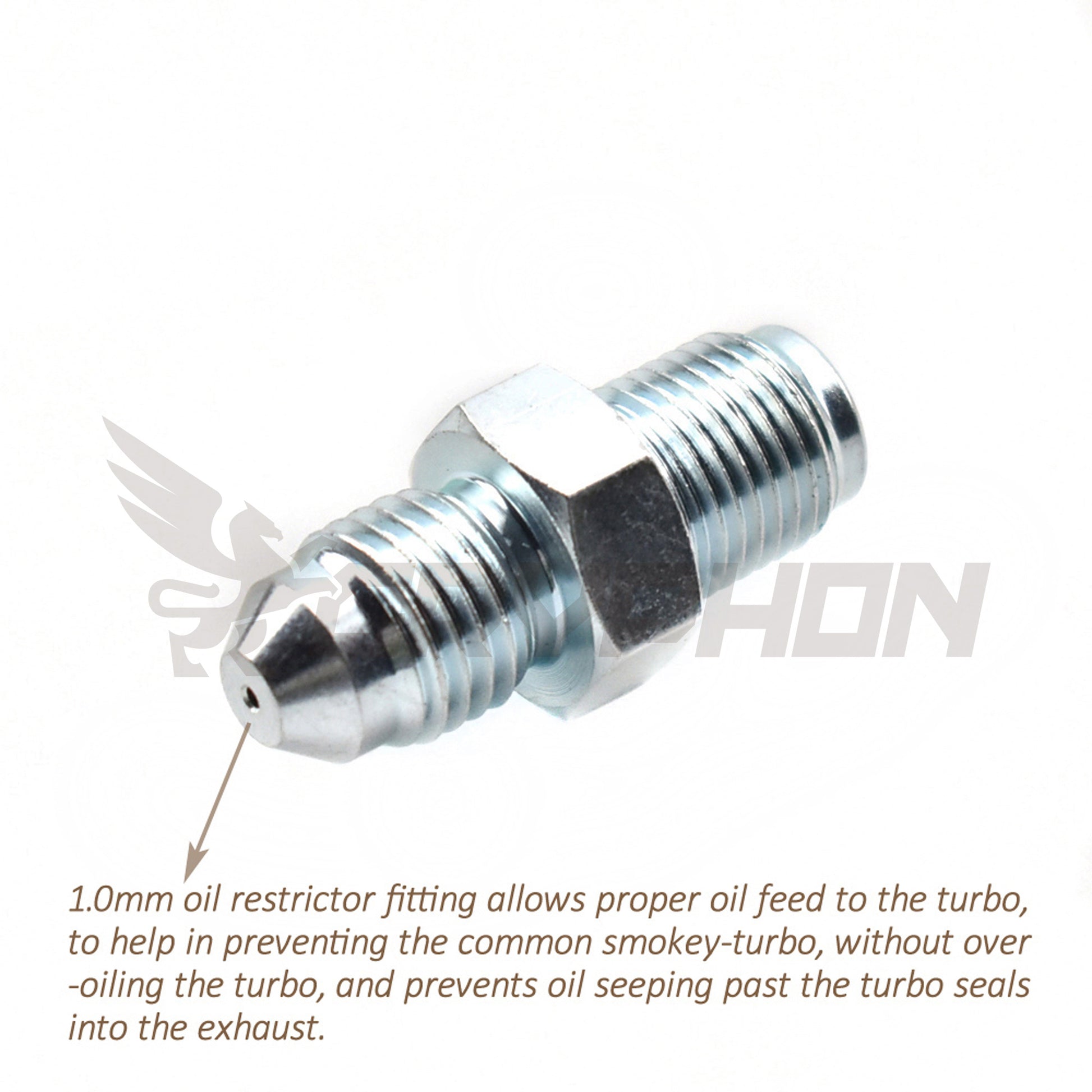

‣ 1.0 mm restricted adapter fitting – optimized for Garrett GT ball-bearing oil pressure requirements
‣ Copper crush washer included – provides secure, leak-free turbo inlet sealing
‣ 4AN PTFE Teflon stainless braided hose – resists oil pressure spikes and high heat cycles
‣ Pre-crimped stainless steel fittings – durable under vibration and boost pressure
‣ Engine-side fitting adapter – simple, reliable oil source for N/A engines
‣ Complete plug-and-play kit – includes every fitting for direct installation
Garrett GT-series ball-bearing turbos depend on precise oil control to perform and last.
This Gryphontek oil feed line kit ensures accurate pressure through its 1.0 mm restrictor and copper-sealed connection, keeping your turbo properly lubricated for smooth spool and long-term reliability.
📦 Order now to complete your Miata GT turbo upgrade with a proven, precision-engineered oil feed solution.
⚙️ Technical Note
Early MK1 engines supply oil from the exhaust-side port, while Late MK1, MK2, and MK2.5 use the oil pressure sensor location.
Please select your correct version using the vehicle generation filter before purchase.
