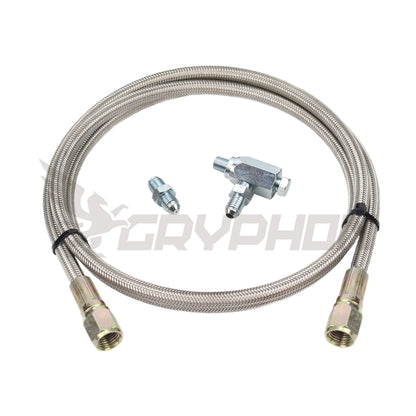

Toyota Land Cruiser 1HZ N/A to Garrett G-Series G25 Turbo Oil Feed Line Kit｜4AN Braided
Toyota Land Cruiser 1HZ N/A to Garrett G-Series G25 Turbo Oil Feed Line Kit｜4AN Braided
Regular price
$110.30 USD
Regular price
$0.00 USD
Sale price
$110.30 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
No PayPal Account Required
We accept Visa, Mastercard, Amex, JCB
Click PayPal, then select "Pay with a Card"
Worldwide
DHL, FEDEX, EMSFast Ship
24H DispatchFree Ship
AU/US & MoreTailored
Customizable30-Day
ReturnsSecured
SSL Encrypted
Technical Description
Controlled Oil Feed Configuration For 1HZ G-Series Turbo Installation
The Garrett G-Series G25 is a modern ball-bearing turbocharger platform widely adopted across a range of petrol and diesel turbo applications, offering compact packaging and efficient bearing design.
When integrating a G25 turbocharger onto the Toyota Land Cruiser 1HZ 4.2L diesel engine, attention to oil feed configuration is important, as the 1HZ was originally designed as a naturally aspirated engine without a factory turbo oil supply system.
This Gryphontek 4AN PTFE Teflon stainless-braided turbo oil feed line kit is designed to provide a consistent and regulated oil supply for 1HZ G-Series G25 installations, using a 1.0 mm restrictor commonly specified for Garrett ball-bearing turbochargers.
The configuration supports stable oil delivery across a wide range of operating conditions, making it suitable for touring, towing, and general turbo-converted 1HZ applications.
Key Features
‣ Application: Toyota Land Cruiser HZJ70 / HZJ75 / HZJ79 / HZJ80 / HZJ105
‣ Engine Compatibility: Toyota 1HZ 4.2L N/A diesel engine (turbo conversion)
‣ Turbo Compatibility: Garrett G-Series G25 ball-bearing turbocharger
‣ Oil Flow Control: 1.0 mm restrictor for regulated oil supply commonly used with G-Series turbos
‣ Line Construction: 4AN PTFE Teflon stainless-braided hose, pre-crimped for durability and leak resistance
‣ Fittings: Robust mild steel AN fittings suitable for diesel engine heat cycles
‣ Design Intent: Supports consistent lubrication without relying on unrestricted oil volume
‣ Custom Length Available: Hose length can be specified to suit individual engine bay and turbo positioning
Clean & Consistent Oil Supply For G-Series Turbo Conversions
A well-matched oil feed configuration is a key part of any 1HZ turbo conversion.
This Gryphontek 4AN PTFE oil feed line kit, configured with a 1.0 mm restrictor, provides a clean and consistent oil supply suited to Garrett G-Series G25 installations.
⚙️ A practical oil feed solution designed for 1HZ diesel engines using modern Garrett ball-bearing turbos, focused on consistency, durability, and straightforward installation.
