• Turbo oil feed line kit for Toyota 2RZ / 3RZ engines with Garrett GT28R / GT30R turbos, includes 4AN braided PTFE hose, 1.0mm restrictor fitting, and T-fitting for oil supply.
1 3

Toyota 2RZ 3RZ + Garrett GT28R GT30R Turbo Oil Feed Line Kit｜4AN Braided

Toyota 2RZ 3RZ + Garrett GT28R GT30R Turbo Oil Feed Line Kit｜4AN Braided

$65.50 USD
$0.00 USD $65.50 USD
Sale Sold out
Shipping calculated at checkout.

When upgrading a Toyota 2RZ or 3RZ N/A engine to a Garrett GT28R or GT30R ball bearing turbo, one of the first challenges is that the factory engine has no turbo oil feed line provision. Without the correct restrictor and fittings, you risk over-oiling or starving the turbo bearings, which can lead to premature failure.

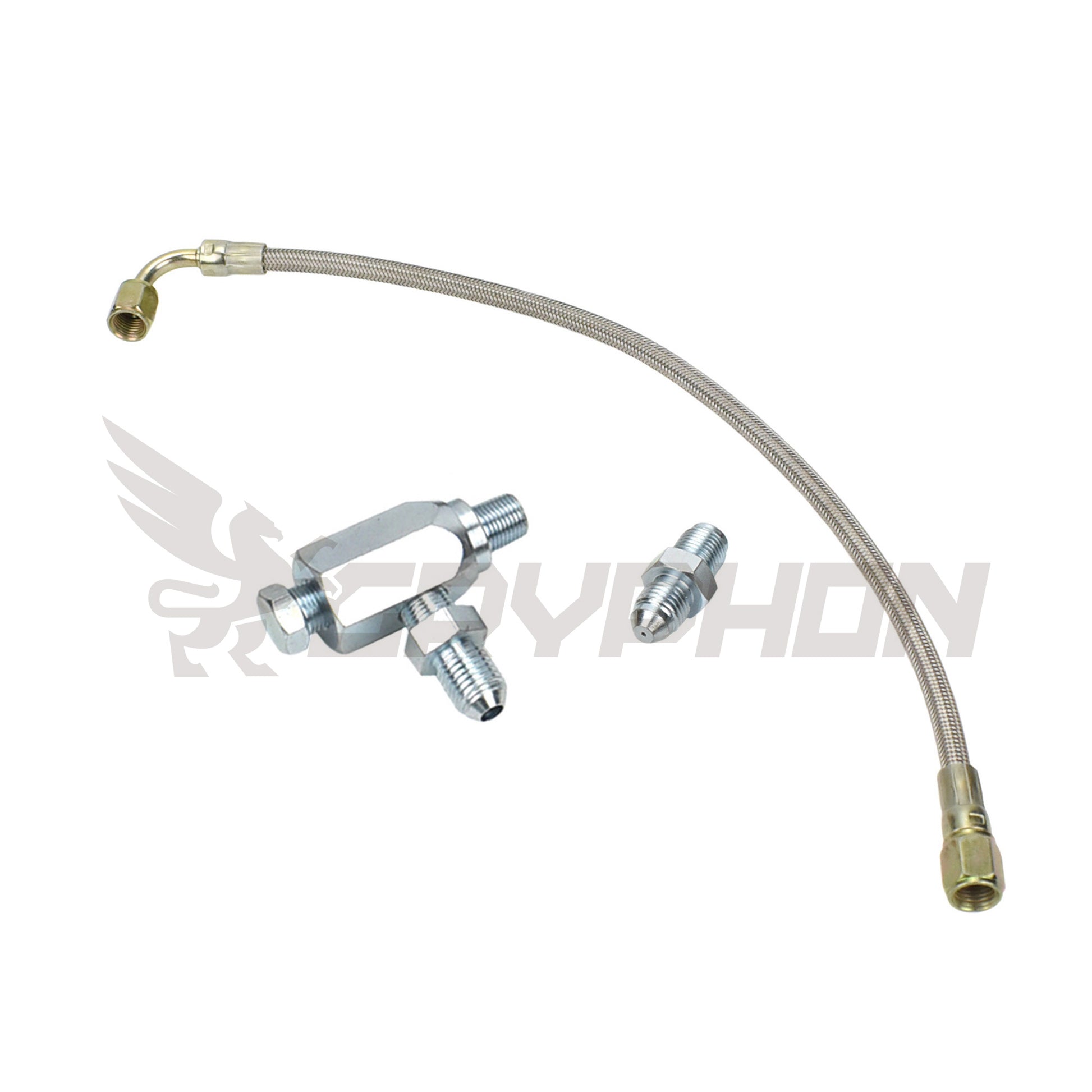

This GT28R / GT30R turbo oil feed line kit solves that problem by providing a pre-crimped 4AN PTFE stainless braided line, a 1.0mm restrictor fitting, and all required hardware. Designed specifically for GT-Series turbos, it ensures safe and precise oil delivery for both street performance and high-boost track setups.

‣ Application: Toyota 2RZ / 3RZ N/A-to-turbo conversions
‣ Turbo compatibility: Garrett GT28R / GT30R (ball bearing)
‣ Includes 1.0mm restrictor oil feed fitting – matched for GT-Series
‣ 4AN PTFE stainless braided hose – built for heat & vibration resistance
‣ T-fitting for clean connection to engine oil supply
‣ Pre-crimped mild steel fittings for strength and durability
‣ Direct bolt-on solution – no fabrication required
‣ Prevents oil starvation & over-oiling issues
‣ Custom line length option available
‣ In-stock and ready for worldwide shipping

Turn your Toyota 2RZ / 3RZ N/A engine into a turbocharged powerhouse with confidence.
This GT28R / GT30R oil feed kit provides the correct restrictor, durable braided line, and all hardware to protect your turbo investment.

📦 Order today and get a leak-free, performance-ready oil supply for your GT-Series turbo setup.
