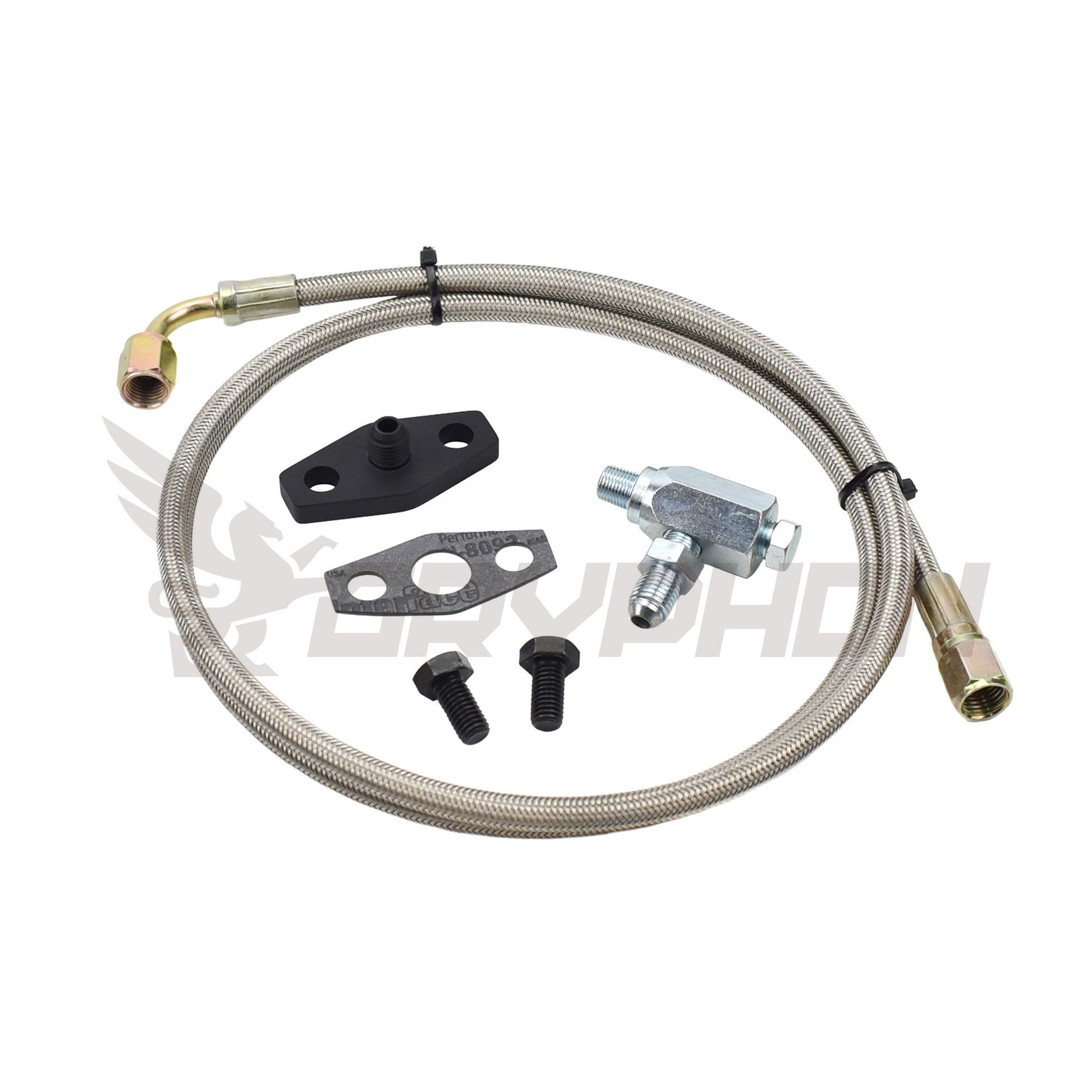

• Turbo oil feed line kit for Toyota 22R / 22RE with Garrett T3 T4, includes 4AN PTFE braided hose, T-fitting, restricted flange, gasket, and bolts
  • Installation view of oil feed T-fitting connected to Toyota 22R 22RE engine
  • Installation view of oil feed T-fitting connected to Toyota 22R 22RE engine
  • Close-up of PTFE braided oil feed line and fittings for Toyota 22R 22RE

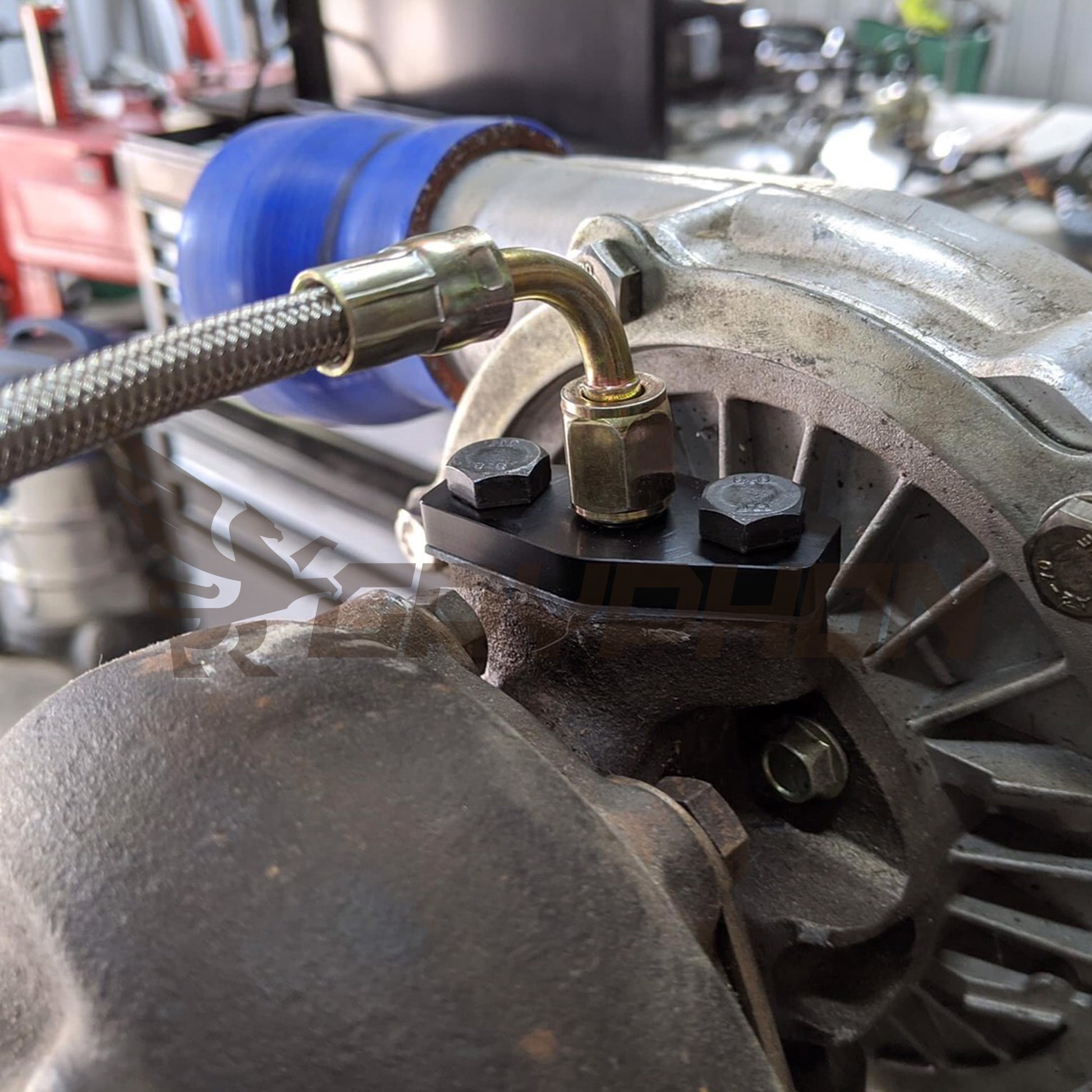

  • Garrett T3 T4 turbo oil feed flange with 2.0mm restrictor installed on Toyota 22RE

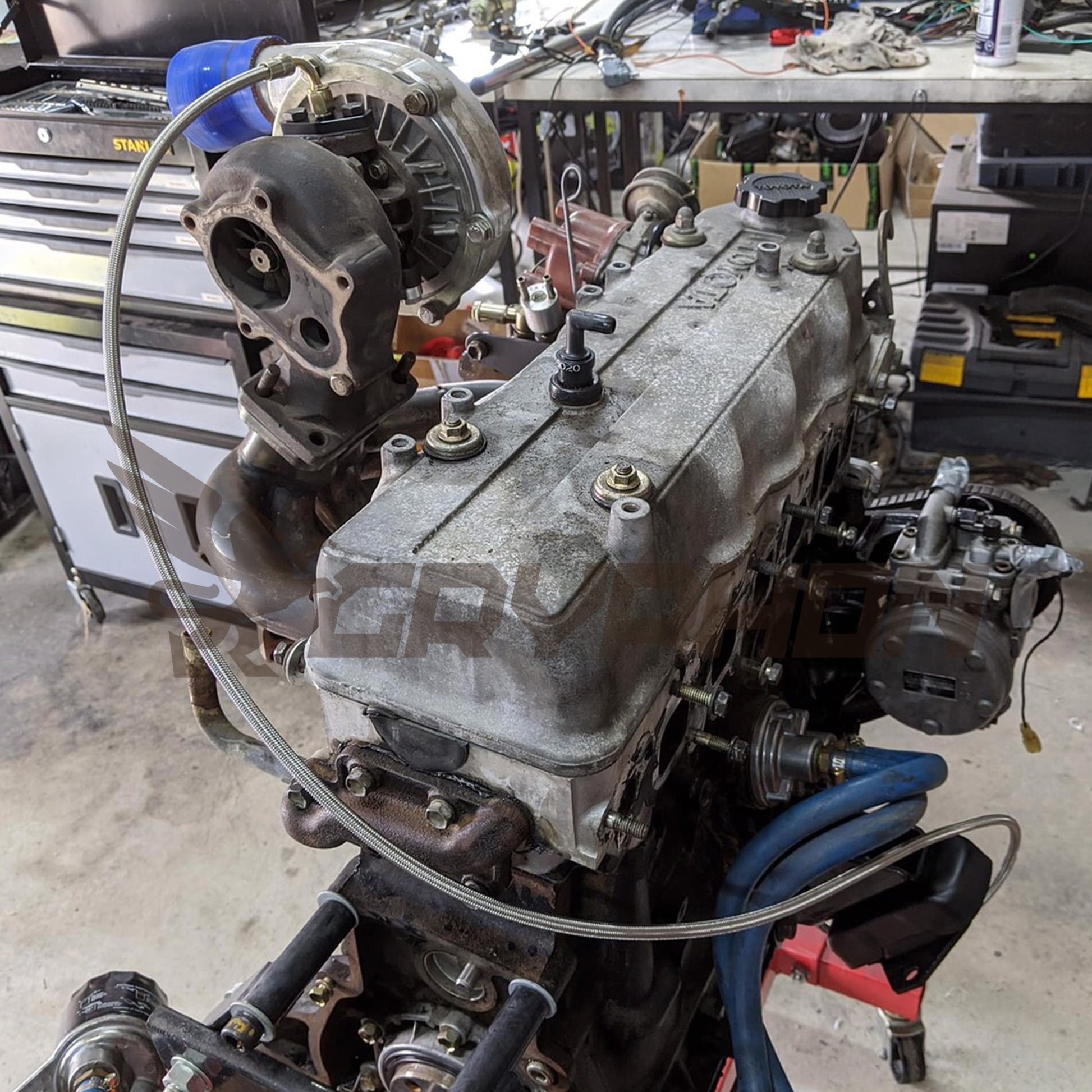

  • Braided 4AN turbo oil feed line routing from engine block to Garrett T3 T4 turbocharger on Toyota 22R/22RE
  • PTFE Teflon stainless braided hose for turbo oil water line, heat-resistant and durable
1 7

Toyota 22R / 22RE + Garrett T3 T4 Turbo Oil Feed Line Kit｜4AN Braided

Toyota 22R / 22RE + Garrett T3 T4 Turbo Oil Feed Line Kit｜4AN Braided

$117.96 USD
$0.00 USD $117.96 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

24H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

When boosting your Toyota 22R or 22RE engine with a Garrett T3/T4 turbocharger, a dependable oil feed solution is absolutely critical. Since the 22R/22RE platform was originally N/A with no factory turbo oil line, you need a kit that ensures your turbo receives consistent lubrication under high load and heat.

This upgraded 4AN PTFE stainless braided oil feed kit provides everything required for a clean installation – from the T-fitting at the engine to the restricted flange and gasket at the turbo inlet. Designed specifically for Garrett T3/T4 turbos, the included 2.0mm restrictor flange delivers the correct oil flow, preventing over-oiling while ensuring long-term turbo reliability.

Built for street, off-road, and track applications, this kit combines durability, precision, and easy installation, making it the ultimate solution for your Toyota 22R/22RE turbo conversion.

‣ Application: Toyota 22R / 22RE N/A to turbo conversions
‣ Turbo compatibility: Garrett T3 / T4 turbos
‣ 4AN PTFE stainless braided oil feed line – heat & pressure resistant
‣ 2.0mm restricted oil feed flange – prevents turbo over-oiling
‣ Includes T-fitting for oil supply integration at the engine block
‣ 6061-T6 aluminum flange with Interface N-8092 gasket & high-tensile bolts
‣ Complete all-in-one kit – no need to source fittings separately
‣ Ideal for high-boost and daily-driven builds
‣ Ready for worldwide shipping

Unlock the full potential of your Toyota 22R / 22RE turbo build with this Garrett T3/T4 oil feed line kit. Engineered for leak-free performance and long-lasting reliability, it ensures your turbocharger receives stable oil flow at any boost level.

📦 Order today and give your Garrett T3/T4 turbo the protection it deserves with this premium 4AN braided oil feed solution.
