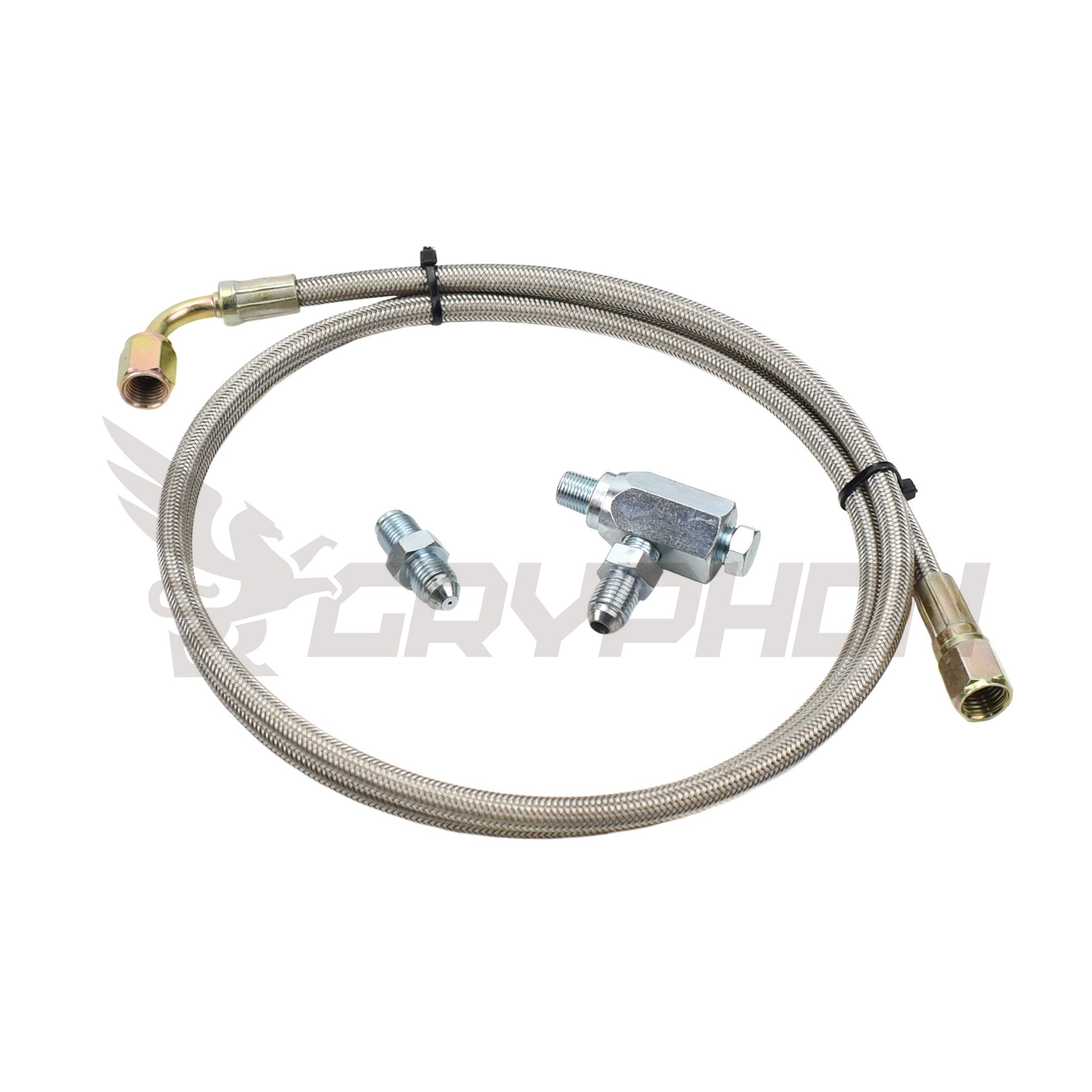

• Turbo oil feed line kit for Toyota 22R / 22RE with Garrett GT28R GT30R ball bearing turbo, includes 4AN braided hose, 1.0mm restrictor fitting, and T-fitting

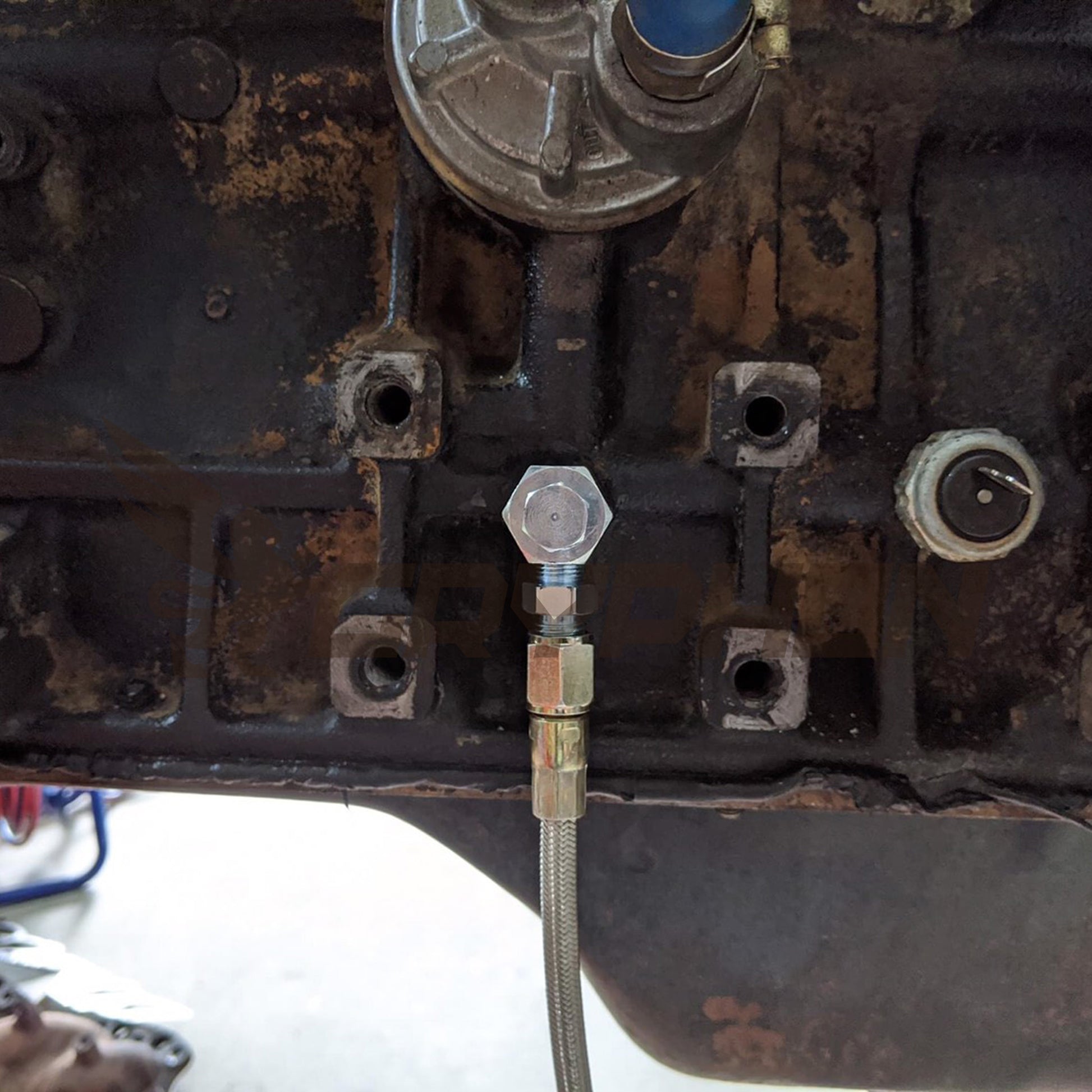

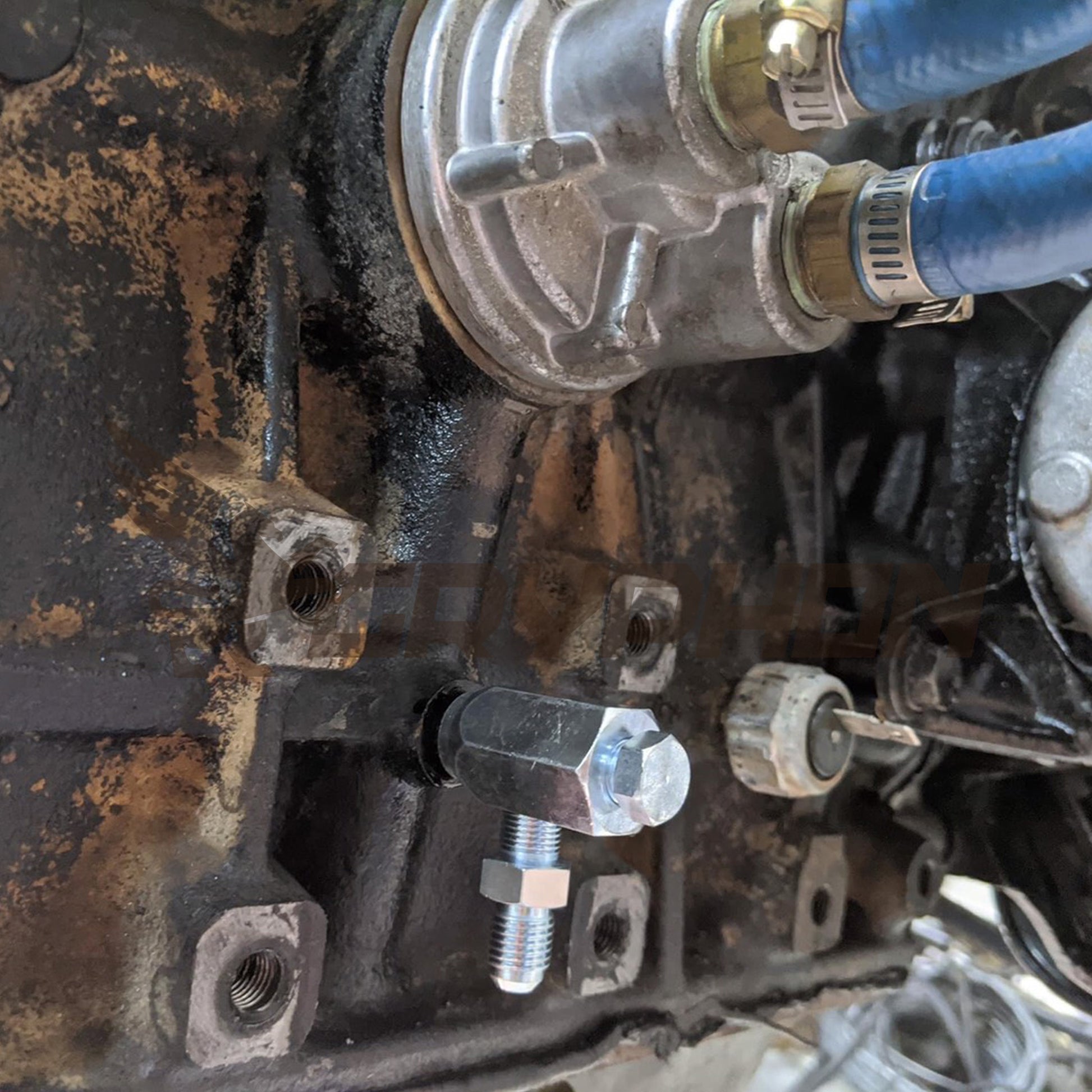

  • Installation view of oil feed T-fitting connected to Toyota 22R 22RE engine
  • Installation view of oil feed T-fitting connected to Toyota 22R 22RE engine

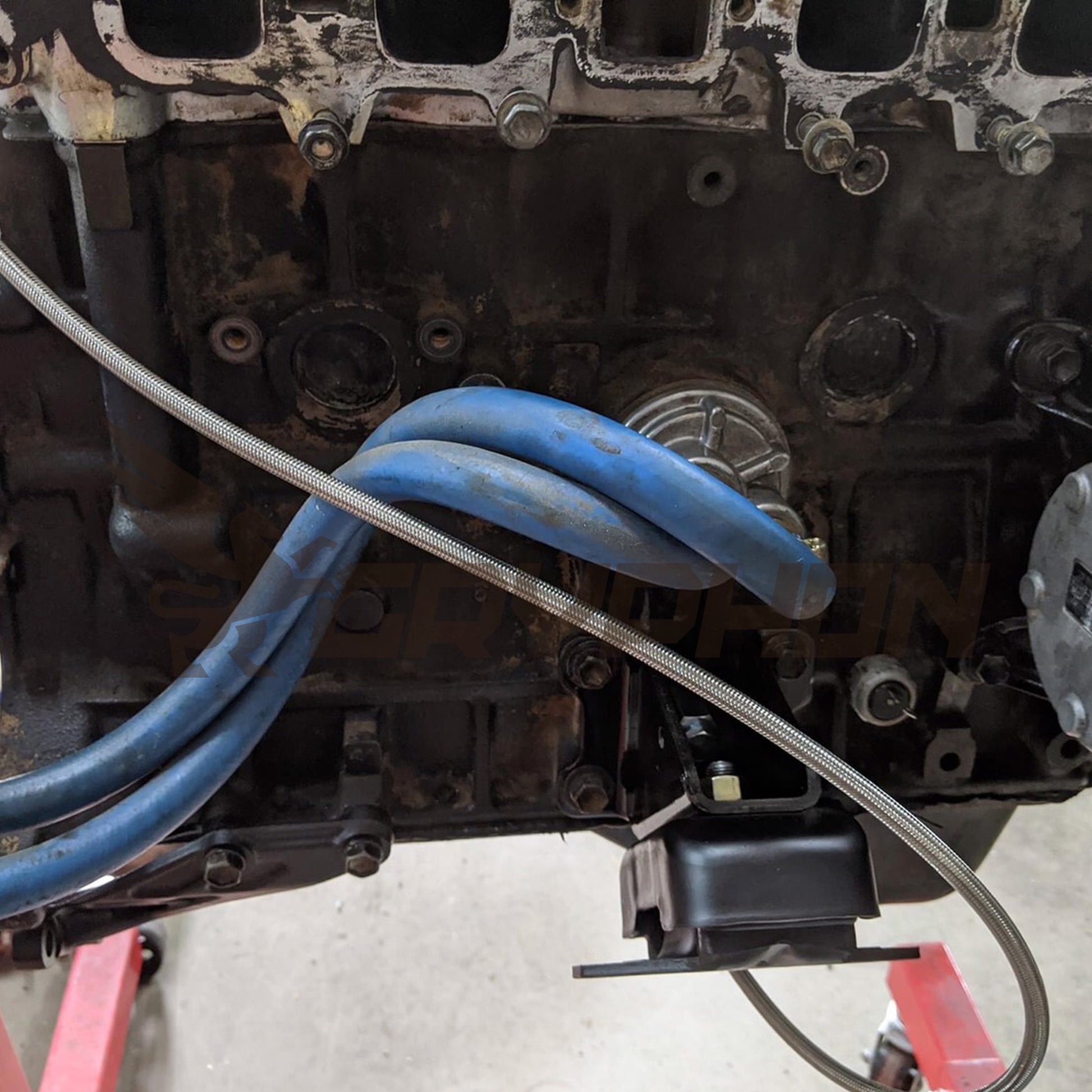

  • Close-up of PTFE braided oil feed line and fittings for Toyota 22R 22RE
1 6

Toyota 22R / 22RE + Garrett GT28R GT30R Turbo Oil Feed Line Kit｜4AN Braided

Toyota 22R / 22RE + Garrett GT28R GT30R Turbo Oil Feed Line Kit｜4AN Braided

$68.75 USD
$0.00 USD $68.75 USD
Sale Sold out
Shipping calculated at checkout.

Upgrading your Toyota 22R or 22RE engine with a Garrett GT28R or GT30R ball bearing turbo requires a precise oil feed system. Ball bearing units are sensitive to oil pressure, and without the correct restrictor size, they can suffer from oil leakage, smoking, or premature bearing failure.

This kit is engineered specifically for GT-series ball bearing turbos, featuring a 1.0mm restricted oil feed fitting to deliver the right amount of lubrication. The 4AN PTFE stainless braided hose with pre-crimped mild steel ends ensures reliability under high boost, while the included T-fitting integrates seamlessly with the 22R/22RE engine block. Perfect for turbo conversions, it eliminates the hassle of sourcing fittings and guarantees leak-free operation.

‣ Application: Toyota 22R / 22RE N/A engine turbo conversions
‣ Turbo compatibility: Garrett GT28R / GT30R ball bearing turbos
‣ 4AN PTFE stainless braided oil line – pre-crimped for strength & reliability
‣ 1.0mm restrictor fitting – ensures correct oil flow for ball bearing GT-series turbos
‣ Includes T-fitting for oil supply integration at the engine block
‣ Heat & vibration resistant mild steel fittings
‣ Reduces risk of turbo oil seal leakage or smoking issues
‣ All-in-one kit – eliminates guesswork and mismatched fittings
‣ Suitable for street, drift, and off-road turbo builds
‣ Fast worldwide shipping available

Protect your Garrett GT28R or GT30R turbo investment with this engineered oil feed line kit. Designed for the Toyota 22R / 22RE engine, it delivers the precise oil pressure ball bearing turbos demand.

📦 Order now and ensure long-term turbo reliability with this 4AN braided feed line solution, purpose-built for GT-series ball bearing applications.
