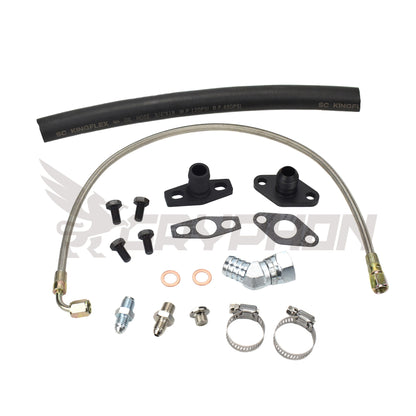

• Turbo Oil Feed Return Line Kit Toyota Supra 1JZ 2JZ with Garrett T25 T28
  • 1JZ 2JZ Turbo Oil Feed Line Installed
  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 4

Toyota 1JZ 2JZ Complete Turbo Oil Line Kit - Garrett T25 T28 Conversion

Toyota 1JZ 2JZ Complete Turbo Oil Line Kit - Garrett T25 T28 Conversion

$131.90 USD
$0.00 USD $131.90 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This oil line kit covers both feed and return setup for Garrett T25 and T28 journal bearing single turbo conversions on Toyota 1JZ-GTE and 2JZ-GTE engines.

It combines a 1.8mm oil feed configuration with a high-flow 3/4" drain to maintain stable oil flow and help reduce oil leaks, turbo smoking, and uneven lubrication.

  • Balanced Oil System: Feed and drain designed to work together
  • Correct Restrictor: 1.8mm for journal bearing turbos
  • Reduces Common Issues: Helps prevent smoke and leaks
  • Complete Kit: No need to source parts separately

Specifications & Data

Kit Included +

• -4AN oil feed line
• 1.8mm restrictor
• 3/4" drain hose
• Feed and drain fittings
• Gaskets and hardware

Vehicle Compatibility +

• Make: Toyota
• Model: Supra JZA70 / JZA80, Chaser JZX90 / JZX100, Soarer JZZ30
• Engine: 1JZ-GTE / 2JZ-GTE Single Turbo Conversions

Turbo Compatibility +

• Garrett T25 T28 Journal Bearing

Product Specifications +

• Feed Line Size: -4AN
• Restrictor Size: 1.8mm
• Line Material: PTFE inner with stainless braided outer
• Drain Hose Inner Diameter: 3/4" (19mm)
• Drain Hose Material: Oil-resistant NBR
• Flange Material: Billet aluminum
