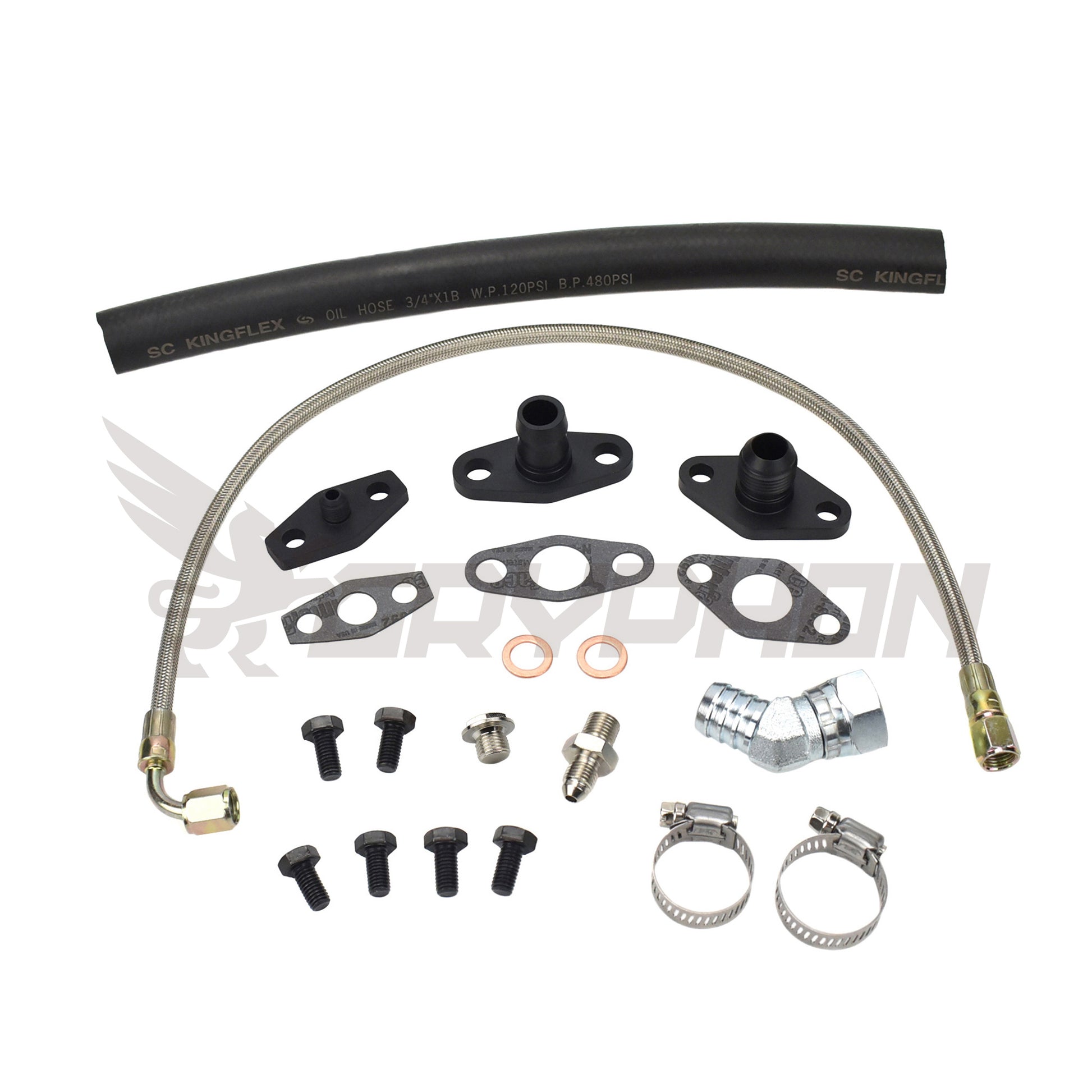

• Turbo Oil Feed Return Line Kit Toyota Supra 1JZ 2JZ with Holset Super HX30W
  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 3

Toyota 1JZ 2JZ Complete Oil Line Kit for Holset Super HX30W | Feed and Drain

Toyota 1JZ 2JZ Complete Oil Line Kit for Holset Super HX30W | Feed and Drain

$134.97 USD
$0.00 USD $134.97 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This oil line kit is for Holset Super HX30W single top mount turbo conversions on Toyota 1JZ-GTE and 2JZ-GTE engines.

Holset turbos do not require an external oil restrictor in this setup, but they still need stable oil supply and smooth gravity return. A restricted feed or poor drain routing can lead to lubrication issues, oil leakage, or turbo smoke.

This kit combines an unrestricted -4AN PTFE turbo oil feed line with a 3/4" high flow oil drain hose to support stable oil circulation for Super HX30W single turbo builds.

  • Complete Oil Setup: Oil feed and oil drain included
  • No Restrictor Setup: Suitable for Holset turbos
  • High Flow Return: 3/4" drain hose helps prevent oil buildup
  • Conversion Ready: Built for Super HX30W single turbo setups

Specifications & Data

Kit Included +

• -4AN PTFE feed line
• 3/4" NBR drain hose
• Non restrictor flange
• Drain flange
• All required gaskets and hardware

Vehicle Compatibility +

• Make: Toyota
• Model: Supra JZA70 / JZA80, Chaser JZX90 / JZX100, Soarer JZZ30
• Engine: 1JZ-GTE / 2JZ-GTE Single Turbo Conversions

Turbo Compatibility +

• Holset Super HX30W

Product Specifications +

• -4AN Feed / 3/4" Drain
• 6061-T6 Billet Aluminum
• Class 8.8 Hardware

Support & Logistics

Shipping & Global Export +

Proudly exported to 75+ countries. All orders are dispatched via DHL Express, FedEx, or EMS from our Taiwan hub.

  • AU / USA: 3-5 Business Days.
  • Rest of World: 5-12 Business Days.
  • Tracking: End-to-end tracking number provided within 48H.
Import Duties & Taxes +

We’ve optimized our tax process for core markets to ensure zero hidden fees:

USA MARKET

All-inclusive pricing. No hidden duties or extra fees at delivery.

AUSTRALIA

Orders under AUD 1,000 are typically tax-free. No GST surprises.

*Other Countries: All import duties and carrier processing fees are the buyer's responsibility.

30-Day Returns & Warranty +

30-Day Returns: Return or exchange within 30 days of delivery. (Shipping at buyer's expense).

Limited Lifetime Warranty: Covers manufacturing defects. (Excludes racing misuse).

GryphonTek Engineering — Precision Fitment. Global Delivery.
