• Turbo Oil Drain Hose Kit Toyota Supra 1JZ 2JZ with Holset Super HX30W
1 3

Toyota 1JZ 2JZ Turbo Oil Drain Hose Kit for Holset Super HX30W | 3/4 High Flow

Toyota 1JZ 2JZ Turbo Oil Drain Hose Kit for Holset Super HX30W | 3/4 High Flow

$116.03 USD
$0.00 USD $116.03 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This oil drain hose kit is for Holset Super HX30W single top mount turbo setups on Toyota 1JZ-GTE and 2JZ-GTE engines.

Holset turbos need a clear and unrestricted oil return path. If the drain hose is too small or routed poorly, oil can build up inside the turbo and cause smoke, leakage, or unstable operation.

This kit uses a 3/4" high flow turbo oil drain hose to support smooth gravity return and help reduce oil backup.

  • High Flow Drain: 3/4" hose supports unrestricted oil return
  • Helps Prevent Oil Backup: Reduces risk of turbo smoke and leakage
  • Stable Drain Flow: Maintains consistent oil evacuation
  • Direct Fitment: Suitable for Super HX30W turbo layouts

Specifications & Data

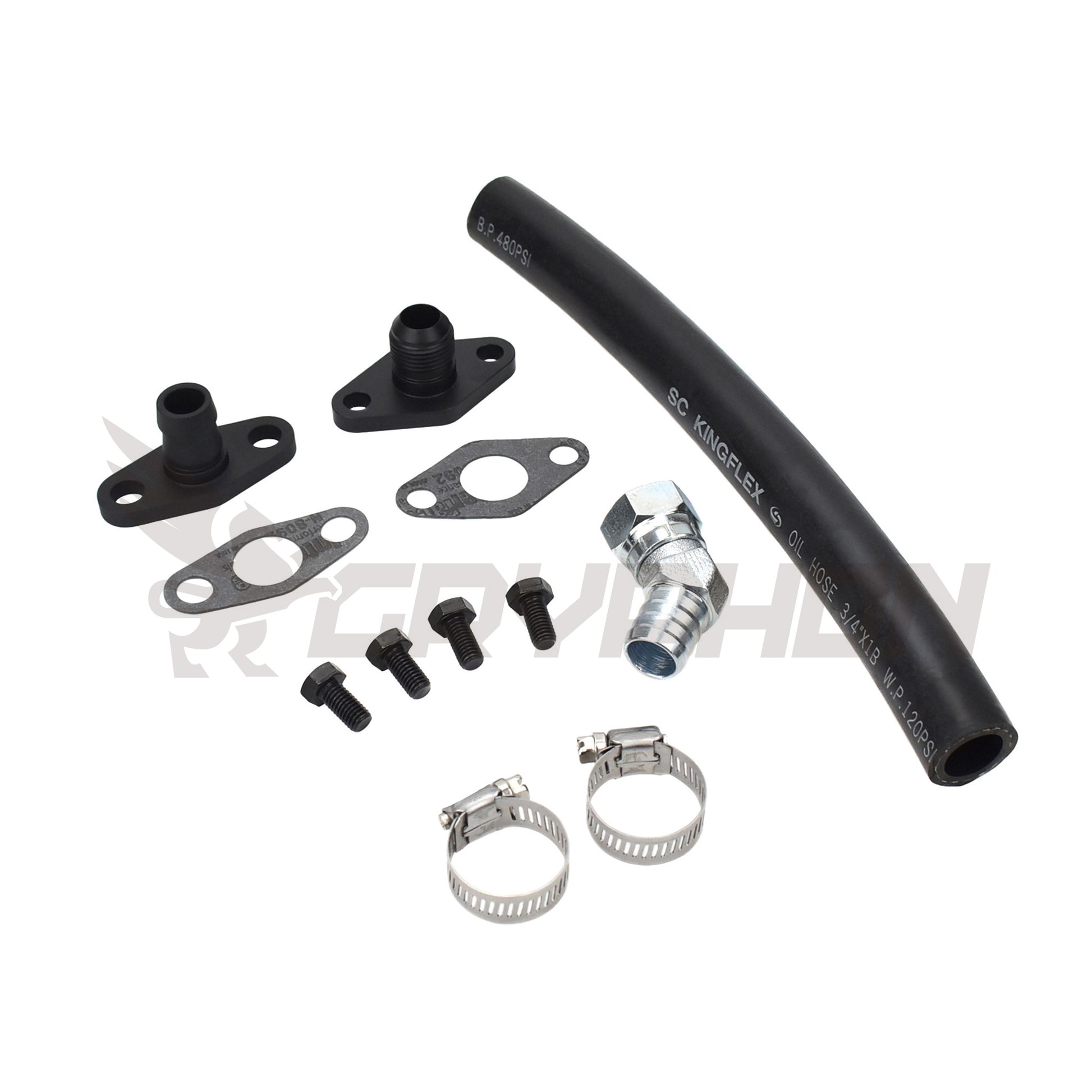

Kit Included +

• 3/4" high flow turbo oil drain hose
• Turbo oil drain flange
• Drain gasket
• Hose clamps
• Mounting hardware

Vehicle Compatibility +

• Make: Toyota
• Model: Supra JZA70 / JZA80, Chaser JZX90 / JZX100, Soarer JZZ30
• Engine: 1JZ-GTE / 2JZ-GTE Single Turbo Conversions

Turbo Compatibility +

• Holset Super HX30W

Product Specifications +

• Drain Hose Size: 3/4" (19mm)
• Hose Material: Oil-resistant NBR
• Flange Material: Billet aluminum
