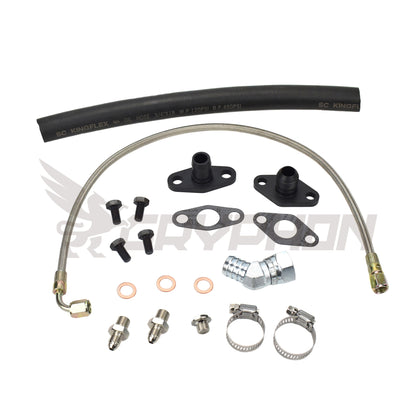

• Turbo Oil Feed Return Line Kit Toyota Supra 1JZ 2JZ with Holset HX35 HX40
  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 4

Toyota 1JZ 2JZ Complete Turbo Oil Line Kit for Holset HX30 HX35 | Feed and Drain

Toyota 1JZ 2JZ Complete Turbo Oil Line Kit for Holset HX30 HX35 | Feed and Drain

$129.94 USD
$0.00 USD $129.94 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This oil line kit is for Holset HX30 and HX35 single top mount turbo conversions on Toyota 1JZ-GTE and 2JZ-GTE engines.

A Holset single turbo setup needs a stable oil feed path and unrestricted oil return. Poorly matched fittings or restricted drain flow can lead to oil leaks, turbo smoking, or poor oil circulation.

This kit combines a -4AN PTFE turbo oil feed line with a 3/4" high flow oil drain hose to support reliable oil flow.

  • Complete Oil Setup: Oil feed and oil drain included
  • Stable Oil Feed: -4AN line supports consistent lubrication
  • High Flow Return: 3/4" drain hose helps prevent oil buildup
  • Conversion Ready: Suitable for Holset HX single turbo builds

Specifications & Data

Kit Included +

• -4AN PTFE turbo oil feed line
• Turbo oil feed fitting
• 3/4" turbo oil drain hose
• Turbo oil drain flange
• Gaskets and mounting hardware

Vehicle Compatibility +

• Make: Toyota
• Model: Supra JZA70 / JZA80, Chaser JZX90 / JZX100, Soarer JZZ30
• Engine: 1JZ-GTE / 2JZ-GTE Single Turbo Conversions

Turbo Compatibility +

• Holset HX30 HX35

Product Specifications +

• Feed Line Size: -4AN
• Drain Hose Size: 3/4" (19mm)
• Restrictor: Non
• Materials: PTFE feed line, NBR drain hose, billet fittings

Support & Logistics

Shipping & Global Export +

Proudly exported to 75+ countries. All orders are dispatched via DHL Express, FedEx, or EMS from our Taiwan hub.

  • AU / USA: 3-5 Business Days.
  • Rest of World: 5-12 Business Days.
  • Tracking: End-to-end tracking number provided within 48H.
Import Duties & Taxes +

We’ve optimized our tax process for core markets to ensure zero hidden fees:

USA MARKET

All-inclusive pricing. No hidden duties or extra fees at delivery.

AUSTRALIA

Orders under AUD 1,000 are typically tax-free. No GST surprises.

*Other Countries: All import duties and carrier processing fees are the buyer's responsibility.

30-Day Returns & Warranty +

30-Day Returns: Return or exchange within 30 days of delivery. (Shipping at buyer's expense).

Limited Lifetime Warranty: Covers manufacturing defects. (Excludes racing misuse).
