• Turbo Oil Feed Return Line Kit Toyota Supra 1JZ 2JZ with Garrett GT30R GT35R
  • 1JZ 2JZ Turbo Oil Feed Line Installed
  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 5

Toyota 1JZ 2JZ Complete Turbo Oil Line Kit for Garrett GT30R GT35R

Toyota 1JZ 2JZ Complete Turbo Oil Line Kit for Garrett GT30R GT35R

$131.90 USD
$0.00 USD $131.90 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

24H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This oil line kit covers both feed and return setup for Garrett GT30R and GT35R single top mount turbo conversions on Toyota 1JZ-GTE and 2JZ-GTE engines.

Incorrect oil pressure or restricted drain flow can quickly lead to turbo smoking, oil leaks, or seal damage.

This kit combines a 1.0mm oil feed setup with a high-flow 3/4" drain to maintain stable oil flow and reduce the risk of setup errors.

  • Balanced Oil System: Feed and drain designed to work together
  • Correct Restrictor: 1.0mm for ball bearing turbos
  • Reduces Turbo Issues: Helps prevent leaks and smoke
  • Complete Kit: No need to source parts separately

Specifications & Data

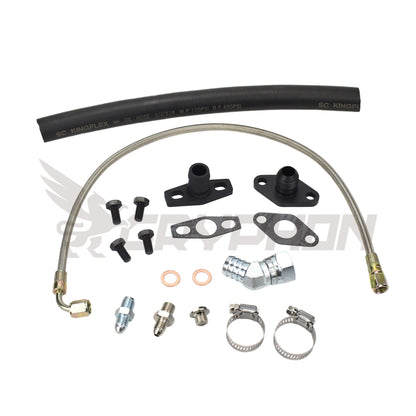

Kit Included +

• -4AN oil feed line
• 1.0mm restrictor
• 3/4" drain hose
• Feed and drain fittings
• Gaskets and hardware

Vehicle Compatibility +

• Make: Toyota
• Model: Supra JZA70 / JZA80, Chaser JZX90 / JZX100, Soarer JZZ30
• Engine: 1JZ-GTE / 2JZ-GTE Single Turbo Conversions

Turbo Compatibility +

• Garrett GT30R GT35R Ball Bearing

Product Specifications +

• Feed Line Size: -4AN
• Restrictor Size: 1.0mm
• Material: PTFE inner with stainless braided outer
• Oil Drain Size: 3/4" (19mm) NBR hose
• Flange: 6061-T6 aluminum flange
• Hardware: Class 8.8 high-tensile bolts
