• This kit is for a single turbo conversion on a Toyota 1JZ-GTE 2JZ-GTE top mount Garrett GBC Series GBC20-300 GBC22-350 journal bearing turbo.
  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 3

Toyota 1JZ 2JZ Complete Turbo Oil Line Kit for Garrett GBC22-350 | 1.8mm Restrictor

Toyota 1JZ 2JZ Complete Turbo Oil Line Kit for Garrett GBC22-350 | 1.8mm Restrictor

$131.57 USD
$0.00 USD $131.57 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This oil line kit is for Garrett GBC22-350 single top mount turbo conversions on Toyota 1JZ-GTE and 2JZ-GTE engines.

Incorrect oil pressure or restricted drain flow can lead to oil leaks, turbo smoking, or unstable lubrication, especially on oil-cooled turbo setups.

This kit combines a 1.8mm oil feed setup with a 3/4" high-flow drain system to support balanced oil circulation.

  • Balanced Oil Flow: Controlled feed with unrestricted return
  • Correct Restrictor: 1.8mm for GBC22 oil-cooled turbo
  • Helps Reduce Turbo Issues: Supports stable lubrication
  • Complete Kit: No need to source parts separately

Specifications & Data

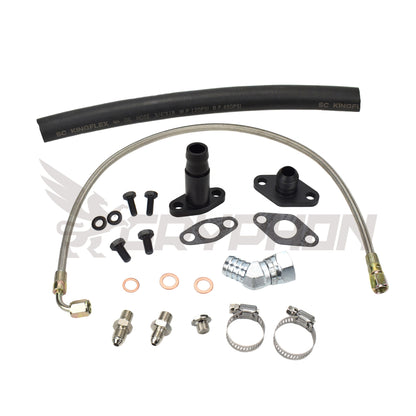

Kit Included +

• -4AN oil feed line
• 1.8mm restrictor
• 3/4" oil drain hose
• Feed and drain fittings
• Gaskets and hardware

Vehicle Compatibility +

• Make: Toyota
• Model: Supra JZA70 / JZA80, Chaser JZX90 / JZX100, Soarer JZZ30
• Engine: 1JZ-GTE / 2JZ-GTE Single Turbo Conversions

Turbo Compatibility +

• Garrett GBC-Series GBC22-350

Product Specifications +

• Feed Line Size: -4AN
• Restrictor Size: 1.8mm
• Material: PTFE inner with stainless braided outer
• Oil Drain Size: 3/4" (19mm) NBR hose
• Flange: 6061-T6 aluminum flange
• Hardware: Class 8.8 high-tensile bolts
