Toyota 1JZ 2JZ Complete Turbo Oil Line Kit for Garrett G40 G42 G45

Toyota 1JZ 2JZ Complete Turbo Oil Line Kit for Garrett G40 G42 G45

Regular price $134.97 USD
Regular price $0.00 USD Sale price $134.97 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
JUNE HOLIDAY SHIPPING UPDATE

Please be advised that June 17 is our final shipping date before the upcoming national holiday break.

June 17 Last Dispatch
June 18-21 No Shipping
June 22 Regular Resumes

Technical support remains active during the holiday period.

View full details

Technical Description

This oil line kit is for Garrett G40, G42, and G45 single turbo conversions on Toyota 1JZ-GTE and 2JZ-GTE engines.

High oil pressure combined with restricted return flow can lead to oil leaks, turbo smoking, or seal damage.

This kit combines a 2.0mm oil feed setup with a 3/4" high-flow drain system to control oil pressure while allowing unrestricted oil return.

  • Balanced Oil System: Controlled feed + high-flow return
  • Prevents Oil Issues: Helps reduce leaks, smoke, and seal problems
  • Stable Operation: Supports high boost applications
  • Complete Kit: No need to source parts separately

Specifications & Data

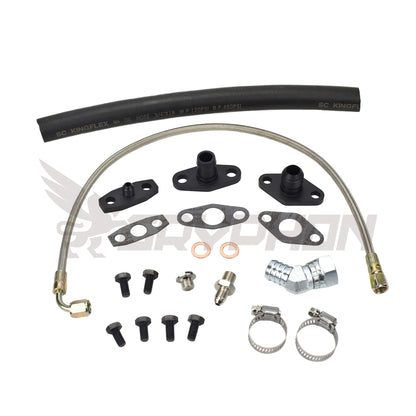

Kit Included +

• -4AN PTFE oil feed line
• Oil feed flange with 2.0mm restrictor
• Flange gasket
• Mounting hardware
• Engine block oil fitting
• Copper washers
• 3/4" oil drain hose
• Turbo drain flange
• Gasket
• Clamps

Vehicle Compatibility +

• Make: Toyota
• Model: Supra JZA70 / JZA80, Chaser JZX90 / JZX100, Soarer JZZ30
• Engine: 1JZ-GTE / 2JZ-GTE Single Turbo Conversions

Turbo Compatibility +

• Garrett G-Series G40 G42 G45

Product Specifications +

• Feed Line Size: -4AN
• Restrictor Size: 2.0mm
• Material: PTFE inner with stainless braided outer
• 3/4" (19mm) NBR hose
• Class 8.8 high-tensile bolts
• Flange: 6061-T6 Billet Aluminum
