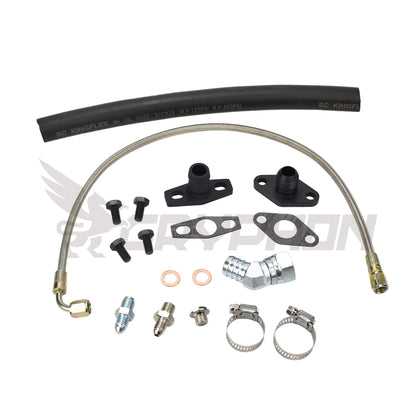

• Turbo Oil Feed Return Line Kit Toyota Supra 1JZ 2JZ with Garrett G-Series G25 G30 G35
  • 1JZ 2JZ Turbo Oil Feed Line Installed
  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 5

Toyota 1JZ 2JZ Complete Oil Line Kit for Garrett G25 G30 G35 | 1.0mm Restrictor

Toyota 1JZ 2JZ Complete Oil Line Kit for Garrett G25 G30 G35 | 1.0mm Restrictor

$131.90 USD
$0.00 USD $131.90 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
JUNE HOLIDAY SHIPPING UPDATE

Please be advised that June 17 is our final shipping date before the upcoming national holiday break.

June 17 Last Dispatch
June 18-21 No Shipping
June 22 Regular Resumes

Technical support remains active during the holiday period.

View full details

Technical Description

This oil line kit is designed for Garrett G-Series single top mount turbo conversions on Toyota 1JZ-GTE and 2JZ-GTE engines.

G-Series turbos benefit from stable oil control. Too much oil or poor return flow can cause leaks, smoke, or inconsistent performance.

This kit combines a 1.0mm restricted feed and a high-flow 3/4" drain into one reliable system. It removes the guesswork from your single turbo conversion and protects your G-Series investment.

  • Balanced Oil Control: Feed and drain matched for stable flow
  • Proper Restrictor Size: 1.0mm for G-Series turbos
  • Helps Reduce Issues: Supports cleaner turbo operation
  • Complete Package: No need to mix separate components

Specifications & Data

Kit Included +

• -4AN PTFE feed line
• Oil feed fitting with 1.0mm restricted
• 3/4" High-flow NBR drain hose
• Drain flanges (Turbo & engine side)
• Full gasket and hardware set

Vehicle Compatibility +

• Make: Toyota
• Model: Supra JZA70 / JZA80, Chaser JZX90 / JZX100, Soarer JZZ30
• Engine: 1JZ-GTE / 2JZ-GTE Single Turbo Conversions

Turbo Compatibility +

• Garrett G-Series G25 G30 G35 Ball Bearing

Product Specifications +

• Feed Line Size: -4AN
• Restrictor Size: 1.0mm
• Material: PTFE inner with stainless braided outer
• Oil Drain Size: 3/4" (19mm) NBR hose
• Flange: 6061-T6 aluminum flange
• Hardware: Class 8.8 high-tensile bolts
