• Turbo oil and water line kit for Peugeot EP6 1.6THP 16V engine with K03 turbo – 207 308 508 RCZ
  • PTFE Teflon stainless braided hose for turbo oil water line, heat-resistant and durable
  • High-temperature silicone hose for turbo oil return line, heat and oil resistant
1 4

Peugeot 1.6THP Complete Turbo Oil & Water Line Kit | 207 308 508 3008 5008 RCZ

Peugeot 1.6THP Complete Turbo Oil & Water Line Kit | 207 308 508 3008 5008 RCZ

$174.57 USD
$0.00 USD $174.57 USD
Sale Sold out
Shipping calculated at checkout.
💳 No PayPal Account Required
We accept Visa, Mastercard, Amex, JCB
Click the PayPal button, then select "Pay with a Card"

The definitive "Once and For All" reliability solution for your 1.6THP engine. The Peugeot EP6 platform operates under extreme thermal stress, causing the factory's rigid oil and water lines to become ticking time bombs. This GryphonTek Signature Series Complete Kit replaces the entire failure-prone circuit with motorsport-grade PTFE Braided Stainless Steel and High-Temp Silicone, eliminating the "burning oil" smell and catastrophic coolant loss in one professional upgrade.

  • Zero-Weld PTFE Architecture: Replaces all weak factory weld points and crimp junctions with a continuous, high-pressure PTFE core and stainless steel braid. Eliminates the risk of weld fatigue, "rotation leaks," and cracking forever.
  • End the "Disturbance Leak" Cycle: Factory rigid lines often leak the moment they are moved during service. Our flexible PTFE hoses provide the necessary "degrees of freedom" for a perfect seal, ensuring no new leaks appear after servicing your turbo.
  • Industrial-Grade Durability: Built with 304 Stainless Steel braiding, Viton O-rings, and anti-corrosive fittings. A rust-proof, heat-shielded, and maintenance-free solution engineered for the long haul.
  • Direct Bolt-on for K03: 100% plug-and-play fitment for all Peugeot 1.6THP engines equipped with factory K03 turbos. No modifications, custom bending, or "universal" hacks required.

Vehicle Compatibility

• Make: Peugeot
• Engine: 1.6THP (EP6DT, EP6DTS, EP6CDT, EP6CDTX)
• Models: 207, 308, 508, 3008, 5008, RCZ, RCZ

Kit Included

• -4AN PTFE Braided Oil Feed Line (Stainless Steel Braid)
• Restricted Banjo Bolt (1.8mm Orifice for Turbo Side)
• -6AN PTFE Braided Water Lines (Inlet & Outlet)
• Custom High-Temp Silicone Oil Drain Hose (with Billet Aluminum Fitting)

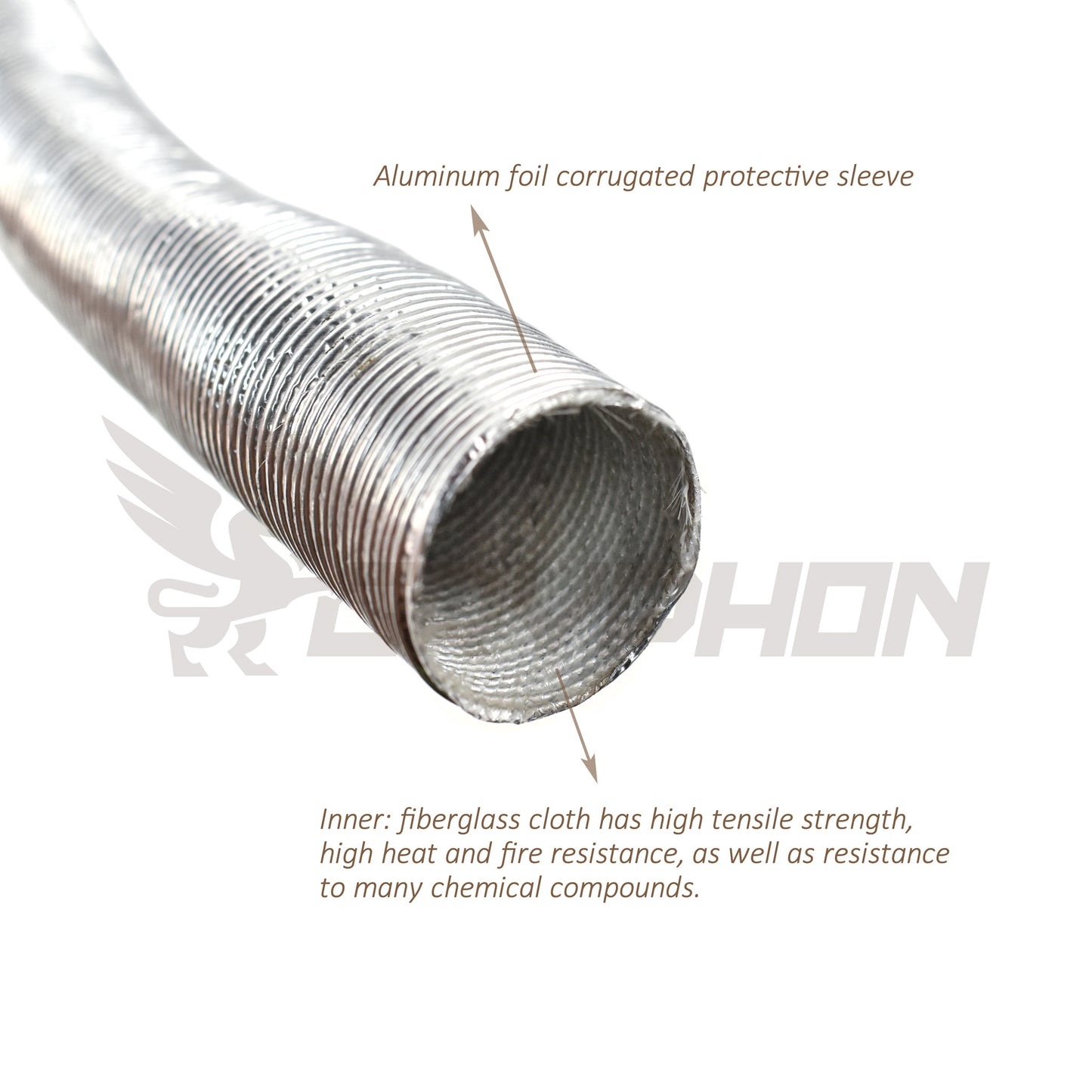

• Aluminum Foil Corrugated Protective Sleeve (for Drain)
• Full Hardware Kit: Copper Washers, Viton O-Rings, and Clamps

Product Specifications

• Material: PTFE (Teflon) Core / 304 Stainless Steel Braid / Viton / 6061-T6 Billet
• Oil Control: Integrated 1.8mm Restrictor for Turbo Seal Protection
• Benefit: Eliminates "Disturbance Leaks" and rigid pipe fatigue cracks
• Installation: 100% Bolt-on; simplifies maintenance in cramped engine bays

Why Upgrade / Why Choose

The 1.6THP "Prince" engine is notorious for its "Hot Side" failures. The factory rigid pipes act as levers against their own seals every time the engine vibrates, leading to the dreaded "rotation leak" at the oil feed and brittle weld cracks on the water lines. Furthermore, because these lines are so closely packed, replacing just one often "disturbs" the others, causing a chain reaction of new leaks.

The GryphonTek Signature Series Complete Kit is the professional way to break this cycle. By converting the entire oiling and cooling loop to a Flexible PTFE & Silicone System, you eliminate every rigid stress point. It ensures your K03 turbocharger receives perfect oil pressure through our 1.8mm restrictor while maintaining maximum coolant flow. Fix it once, fix it right, and protect your Peugeot investment with the hardware engineered for the definitive fix.
