Nissan RB20DET RB25DET RB30 + TD05H TD06 Turbo Oil Drain Hose Kit

Oil Drain System for RB20 / RB25 / RB30 Running TD05H / TD06 Turbos

The Nissan RB-series engines—RB20DET, RB25DET, and RB30—are widely upgraded with Mitsubishi TD05H and TD06 turbos thanks to their strong mid-range response and excellent top-end airflow.

Whether replacing old OEM drain hardware on a factory-turbo RB20/RB25, or adding a complete oil drain path to an RB30 N/A turbo conversion, a proper oil return system is essential to prevent oil pooling, smoke, and CHRA damage.

This Gryphontek turbo oil drain hose kit includes a TD05H/TD06 CNC-machined drain flange, heat-resistant NBR oil drain hose, mild-steel fittings, a 1 mm non-asbestos gasket, and high-tensile hardware.

Designed for the thermal load, higher RPM operation, and engine movement typical of RB platforms, it provides a clean, reliable oil return path for both stock-mount and top-mount TD05H / TD06 turbo applications.

Key Features

‣ Application: Nissan RB20DET / RB25DET / RB30 — Skyline R32 / R33 / R34 & RB30 conversions
‣ Turbo Compatibility: Mitsubishi TD05H / TD06 journal-bearing turbos
‣ Hose Construction: High-temperature NBR oil drain hose designed for high-RPM turbo applications
‣ Flange Material: CNC-machined 6061-T6 aluminum TD05H/TD06 drain flange
‣ Fittings: Mild-steel oil drain fittings with secure sealing for high-vibration inline-six engines
‣ Gasket: Interface N-8092 1 mm non-asbestos gasket
‣ Hardware: Stainless hose clamps + class 8.8 high-tensile bolts
‣ RB Upgrade Ready: Ideal for replacing aging stock RB20/RB25 drain hoses or adding a complete drain system to RB30 turbo conversions
‣ Performance Benefit: Ensures stable oil evacuation under boost, sustained high RPM, and elevated temperature
‣ Custom Length Option: Hose length can be customized to suit different turbo placements, supporting both stock-mount and top-mount configurations

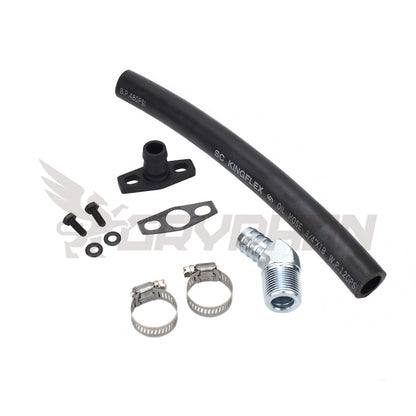

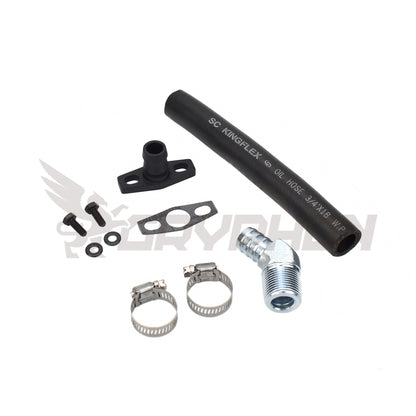

Kit Includes

• NBR turbo oil drain hose
• 6061-T6 CNC-machined TD05H/TD06 drain flange
• 1 mm Interface N-8092 gasket
• Mild-steel oil drain fittings
• High-tensile bolts
• Hose clamps

Reliable Oil Return for TD05H / TD06 Turbocharged RB Builds

A proper oil drain system is critical for turbo reliability on RB20DET, RB25DET, and RB30 engines—especially when upgraded to TD05H or TD06 turbos.
This Gryphontek kit delivers the correct flange, hose, gasket, and fittings needed for a clean, leak-free oil return setup.

⚙️ Support your RB turbo upgrade with an oil drain kit engineered for TD05H/TD06 performance.
