Nissan RB20DET RB25DET RB30 + Holset Super HX30W Turbo Oil Drain Hose Kit
Nissan RB20DET RB25DET RB30 + Holset Super HX30W Turbo Oil Drain Hose Kit
Regular price
$99.70 USD
Regular price
$0.00 USD
Sale price
$99.70 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
No PayPal Account Required
We accept Visa, Mastercard, Amex, JCB
Click PayPal, then select "Pay with a Card"
Worldwide
DHL, FEDEX, EMSFast Ship
48H DispatchFree Ship
AU/US & MoreTailored
Customizable30-Day
ReturnsSecured
SSL Encrypted
JUNE HOLIDAY SHIPPING UPDATE
Please be advised that June 17 is our final shipping date before the upcoming national holiday break.
June 17
Last Dispatch
June 18-21
No Shipping
June 22
Regular Resumes
Technical support remains active during the holiday period.
Technical Description
High-Flow Oil Drain System for RB Engines Running Super HX30W Top-Mount Turbos
The Holset Super HX30W is a highly efficient high-flow turbo option for RB20DET, RB25DET, and RB30 builds, offering quick spool with strong mid–upper RPM power.
Due to its elevated mounting height and larger CHRA oil volume, a high-flow oil drain solution is required to maintain proper oil evacuation and prevent CHRA pooling—especially on top-mount manifold setups.
This Gryphontek turbo oil drain hose kit features a CNC-machined Holset-pattern drain flange with an enlarged bottom port, a large-diameter high-temperature NBR drain hose, steel fittings, a 1 mm non-asbestos gasket, and high-tensile hardware.
Engineered for the demands of high-flow Holset turbos, it provides a smooth, unrestricted oil return path for RB top-mount installations.
Key Features
‣ Application: Nissan RB20DET / RB25DET / RB30 — Skyline R32 / R33 / R34 (top-mount turbo setups)
‣ Turbo Compatibility: Holset Super HX30W
‣ High-Flow Design: Enlarged drain passage and hose diameter to support increased Holset oil volume
‣ Hose Construction: Large-diameter high-temp NBR oil drain hose for consistent drainage at elevated turbo height
‣ Flange Material: 6061-T6 CNC-machined aluminum Holset drain flange
‣ Fittings: Mild-steel drain fittings with stable sealing for RB vibration and heat
‣ Gasket: Interface N-8092 1 mm non-asbestos gasket
‣ Hardware: Stainless clamps + class 8.8 bolts
‣ Performance Benefit: Prevents CHRA oil pooling under boost, extended RPM, and high turbine temperature
‣ Custom Length Option: Hose length can be customized for various turbo heights or manifold layouts

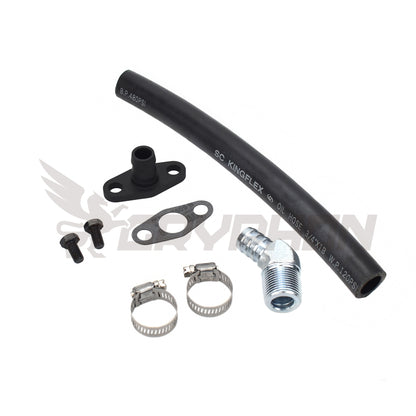

Kit Includes
- Large-diameter high-flow NBR turbo oil drain hose
- 6061-T6 CNC-machined Holset Super HX30W drain flange（enlarged bottom port）
- 1 mm Interface N-8092 gasket
- Mild-steel drain fittings
- High-tensile bolts
- Hose clamps
High-Flow Oil Return for Holset Super HX30W RB Top-Mount Builds
High-flow Holset turbos demand a properly sized oil return path—especially when mounted high on RB top-mount manifolds.
This Gryphontek kit provides the correct oversized flange, hose, and hardware to keep your HX30W draining smoothly.
⚙️ Upgrade your RB top-mount turbo build with a high-flow oil drain system engineered for the Holset Super HX30W.
