Nissan TD42 GU GQ + Holset Super HX30W Turbo Oil Drain Hose Kit

Nissan TD42 GU GQ + Holset Super HX30W Turbo Oil Drain Hose Kit

$90.17 USD
$0.00 USD $90.17 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

24H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
UpdateHoliday Shipping Schedule

GryphonTek will be observing public holidays from Apr 3 to Apr 6. Orders placed during this period will be processed and dispatched starting Tuesday, April 7.

Our technical support remains available for fitment inquiries. We appreciate your patience.

View full details

Technical Description

High-Flow Oil Drain System for TD42 Running the Holset Super HX30W

The Holset Super HX30W is a popular high-flow turbo upgrade for the Nissan TD42 diesel engine, known for its fast spool, strong mid-range torque, and durability in heavy off-road use.

Whether refreshing the factory turbo hardware on a TD42 GU or adding a complete oil drain system for a TD42 GQ N/A to turbo conversion, a proper oil return path is essential—especially for high-flow Holset units that circulate more oil through the CHRA.

This Gryphontek turbo oil drain hose kit includes a CNC-machined Super HX30W drain flange with an enlarged bottom port, a large-diameter NBR oil drain hose, steel fittings, a 1 mm non-asbestos gasket, and high-tensile hardware.

Engineered for the vibration, heat, and heavy diesel oil found in TD42 applications, it supports clean, unrestricted oil evacuation for high-flow Holset turbo setups.

Key Features

‣ Application: Nissan Patrol TD42 GU (factory turbo) & TD42 GQ (N/A → turbo conversion)
‣ Turbo Compatibility: Holset Super HX30W
‣ High-Flow Design: Enlarged bottom drain port prevents bottlenecks and supports increased Holset CHRA oil volume
‣ Hose Construction: Large-diameter high-temperature NBR oil drain hose suited for diesel oil viscosity and long heat cycles
‣ Flange Material: 6061-T6 CNC-machined aluminum Super HX30W drain flange
‣ Fittings: Durable mild-steel drain fittings engineered for TD42 vibration and off-road load
‣ Gasket: Interface N-8092 1 mm non-asbestos gasket
‣ Hardware: Stainless hose clamps + class 8.8 high-tensile bolts
‣ TD42 Upgrade Ready: Works for replacing GU factory drain hardware or adding a drain system for GQ conversions
‣ Performance Benefit: Ensures unrestricted oil evacuation during towing, high-boost driving, and high-temperature operation
‣ Custom Length Option: Hose length can be customized to suit different turbo placements, supporting both stock-mount and top-mount configurations

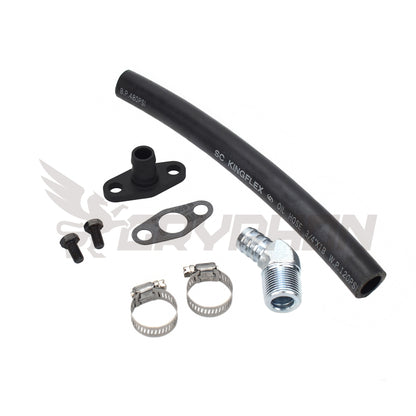

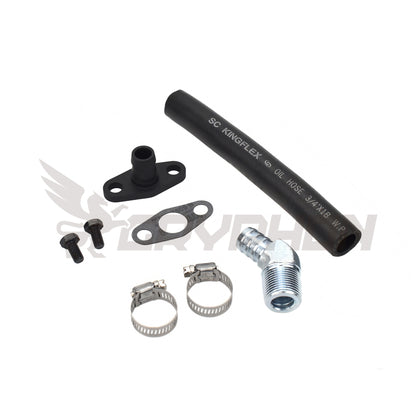

Kit Includes

  • Large-diameter high-flow NBR turbo oil drain hose
  • 6061-T6 CNC-machined Super HX30W drain flange（enlarged bottom port）
  • 1 mm Interface N-8092 gasket
  • Mild-steel oil drain fittings
  • High-tensile bolts
  • Hose clamps

High-Flow Oil Drain System for Super HX30W-Equipped TD42 Patrols

High-flow Holset turbos require a free-flowing oil return to prevent CHRA flooding and maintain reliability.
This Gryphontek kit delivers the correct oversized flange and hose diameter to keep your TD42’s Super HX30W draining properly under all driving conditions.

⚙️ Upgrade your TD42 turbo system with a high-flow oil drain kit engineered for the Holset Super HX30W.
