Nissan TD42 GU GQ + Holset HX30 HX35 Turbo Oil Drain Hose Kit

High-Flow Oil Drain System for TD42 Running Holset HX30 / HX35 Turbos

The Holset HX30 and HX35 are well-known high-flow turbo upgrades for the Nissan TD42 diesel engine, offering stronger boost capability, improved airflow, and excellent durability for towing and off-road builds.

Whether you are replacing aging factory drain hardware on a TD42 GU or installing a complete drain system on a TD42 GQ N/A turbo conversion, a proper oil return setup is essential—especially for high-flow Holset CHRAs that circulate a larger volume of oil.

This Gryphontek turbo oil drain hose kit features a CNC-machined Holset drain flange with an enlarged bottom port, a large-diameter NBR oil drain hose, steel fittings, a 1 mm non-asbestos gasket, and high-tensile hardware.

Designed to handle the vibration, heat, and heavy diesel oil viscosity associated with TD42 engines, it ensures clean, unrestricted oil evacuation for HX30 and HX35 high-flow turbo systems.

Key Features

‣ Application: Nissan Patrol TD42 GU (factory turbo) & TD42 GQ (N/A → turbo conversion)
‣ Turbo Compatibility: Holset HX30 / HX35
‣ High-Flow Design: Enlarged bottom drain port minimizes restriction for high oil volume typical of Holset CHRAs
‣ Hose Construction: Large-diameter high-temperature NBR oil drain hose suitable for diesel oil and sustained heat cycles
‣ Flange Material: CNC-machined 6061-T6 aluminum Holset-pattern drain flange
‣ Fittings: Heavy-duty mild-steel drain fittings engineered for vibration-intensive TD42 diesel operation
‣ Gasket: Interface N-8092 1 mm non-asbestos gasket
‣ Hardware: Stainless clamps + class 8.8 high-tensile bolts
‣ TD42 Upgrade Ready: Works for both refreshing GU factory drain assemblies and completing GQ turbo conversion setups
‣ Performance Benefit: Ensures unrestricted oil evacuation under high-boost driving, towing, off-road load, and extended heat exposure
‣ Custom Length Option: Hose length can be customized to suit different turbo placements, supporting both stock-mount and top-mount configurations

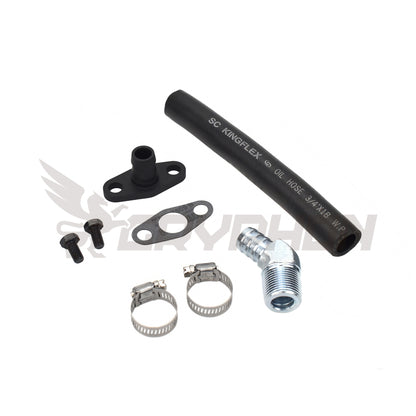

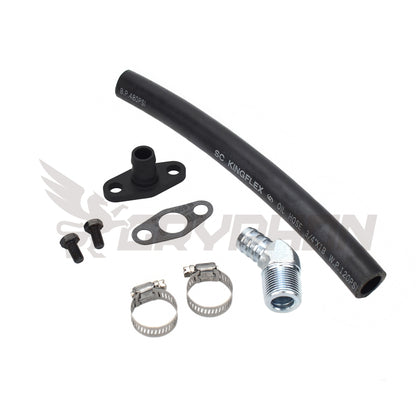

Kit Includes

• Large-diameter high-flow NBR turbo oil drain hose
• 6061-T6 CNC-machined Holset HX30/HX35 drain flange（enlarged bottom port）
• 1 mm Interface N-8092 gasket
• Mild-steel oil drain fittings
• High-tensile bolts
• Hose clamps

High-Flow Oil Return Hardware for HX30/HX35-Equipped TD42 Patrols

Holset HX-series turbos depend on a free-flowing oil return path to maintain CHRA health and prevent oil pooling.
This Gryphontek kit provides the correct oversized flange and hose diameter to support reliable drainage on both TD42 GU factory-turbo engines and TD42 GQ turbo conversions.

⚙️ Upgrade your TD42 turbo build with a high-flow oil drain system engineered for Holset HX30 and HX35.
