Nissan TD42 GU GQ + BorgWarner EFR 6258 6758 Turbo Oil Drain Hose Kit

Oil Drain System for TD42 Diesel Running EFR 6258 / 6758 Turbo

The legendary Nissan TD42 diesel engine, used across GQ and GU Patrol platforms, is highly favored for turbo upgrades due to its reliability and torque potential.

When fitting a BorgWarner EFR 6258 or 6758—whether upgrading a TD42 GU factory-turbo model or converting a TD42 GQ N/A engine—a proper turbo oil drain system is essential for maintaining lubrication stability and preventing oil backup in the CHRA.

This Gryphontek turbo oil drain hose kit includes a CNC-machined EFR-pattern drain flange, diesel-rated NBR hose, steel fittings, a 1 mm non-asbestos gasket, and high-tensile mounting hardware.

Designed specifically for the heavy vibration, sustained thermal load, and thicker oil viscosity characteristic of TD42 engines, it provides a reliable, leak-free oil return pathway suited for EFR turbo installations.

Key Features

‣ Application: Nissan Patrol TD42 GU (factory turbo) & TD42 GQ (N/A → turbo conversion)
‣ Turbo Compatibility: BorgWarner EFR 6258 / 6758
‣ Hose Construction: High-temperature NBR oil drain hose engineered for diesel lubrication and continuous heat cycles
‣ Flange Material: 6061-T6 CNC-machined aluminum EFR-pattern turbo drain flange
‣ Fittings: Heavy-duty mild-steel drain fittings optimized for high-vibration TD42 engines
‣ Gasket: Interface N-8092 1 mm non-asbestos gasket
‣ Hardware: Stainless hose clamps + class 8.8 high-tensile bolts
‣ Patrol Conversion Ready: Provides all drain components missing on TD42 GQ N/A engines and upgrades aging hardware on TD42 GU
‣ Performance Benefit: Ensures stable oil evacuation under towing, off-road load, long-distance travel, and high-temperature operation
‣ Custom Length Option: Hose length can be customized to suit different turbo placements, supporting both stock-mount and top-mount configurations.

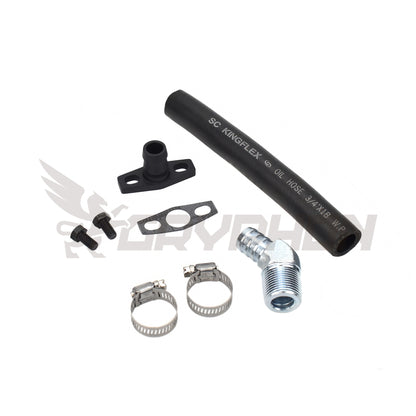

Kit Includes

• NBR turbo oil drain hose
• 6061-T6 CNC-machined EFR drain flange
• 1 mm Interface N-8092 gasket
• Mild-steel drain fittings
• High-tensile bolts
• Hose clamps

A Reliable Oil Return System for EFR-Equipped TD42 Patrol Builds

EFR turbos require a properly designed drain system to maintain consistent lubrication, especially on long-stroke diesel engines like the TD42.
This Gryphontek kit delivers the correct flange, hose, and hardware to ensure a clean, dependable oil return path for both TD42 GU turbo engines and TD42 GQ N/A turbo conversions.

⚙️ Equip your Patrol TD42 with an oil drain system engineered for EFR 6258 / 6758 turbo performance.
