Mazda MX-5 Miata NA/NB TD05H Complete Turbo Oil Feed & Return Line Kit

Mazda MX-5 Miata NA/NB TD05H Complete Turbo Oil Feed & Return Line Kit

$112.39 USD
$112.39 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This complete turbo oil feed and return line kit is designed for Mazda MX-5 Miata NA (MK1) and NB (MK2/MK2.5) models being converted from naturally aspirated to turbo using a Mitsubishi TD05H turbocharger.

The kit combines the pressurized oil feed and gravity oil return systems. It includes an application specific engine oil fitting, a -4AN PTFE stainless braided feed line, a TD05H turbo inlet fitting with an integrated 1.8 mm restrictor, and the components required to route oil from the turbo drain to the engine oil pan.

Early NA models use the exhaust-side engine oil port with a direct fit M10 adapter. Late NA and NB models take the turbo oil supply from the oil pressure sensor location and use a 1/8 BSPT sensor tee.

TD05H center housings are available with different oil inlet threads. Select M10×1.25, M10×1.5, or M12×1.25 only after confirming the actual thread in the installed turbocharger.

Key Features

  • Complete pressurized oil feed and gravity oil return package

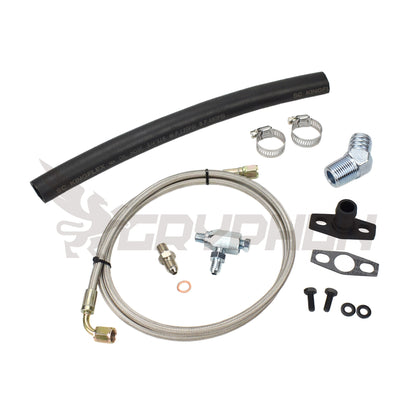

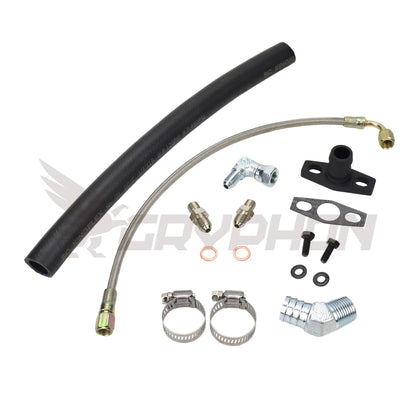

  • Application specific engine oil fitting for Early NA, Late NA, and NB configurations
  • -4AN PTFE stainless braided feed line with a 1.8 mm restricted TD05H fitting
  • Billet aluminum TD05H drain flange with reinforced NBR hose, gasket, and oil pan return fitting

Not sure which application or turbo fitting you need? View the Mazda Miata NA/NB Turbo Line Fitment Guide before ordering.

Specifications & Data

Kit Included +

• -4AN PTFE stainless-braided turbo oil feed line
• TD05H turbo oil inlet fitting with integrated 1.8 mm restrictor
• CNC-machined 6061-T6 billet aluminum TD05H oil drain flange
• Reinforced NBR turbo oil drain hose
• Interface N-8092 non-asbestos oil drain gasket
• Oil pan return fitting
• Copper sealing washers
• Stainless steel hose clamps
• Turbo flange mounting bolts
• Installation hardware

Vehicle Compatibility +

• Make: Mazda
• Models: Miata / MX-5 MK1 (NA), MK2/MK2.5 (NB)
• Engines: 1.6L (B6) / 1.8L (BP) Naturally Aspirated to Turbo conversion
• Year: 1989–2005

Turbo Compatibility +

• Turbo: Mitsubishi TD05H / TD05H-16G / TD05H-18G / TD05H-20G

Product Specifications +

• System Type: Turbo oil feed and gravity oil return system
• Oil Feed Line Size: -4AN
• Oil Feed Line Material: PTFE core with 304 stainless steel braid
• Oil Restrictor Size: 1.8 mm
• Restrictor Location: Integrated into the turbo oil inlet fitting
• Oil Drain Hose Size: 3/4 inch
• Oil Drain Hose Material: Reinforced NBR
• Drain Flange Material: CNC-machined 6061-T6 billet aluminum
• Drain Flange Pattern: Mitsubishi TD05H two-bolt configuration
• Oil Drain Gasket: Interface N-8092 non-asbestos gasket
• Oil Pan Connection: Supplied return fitting
• Oil Pan Modification: Required
