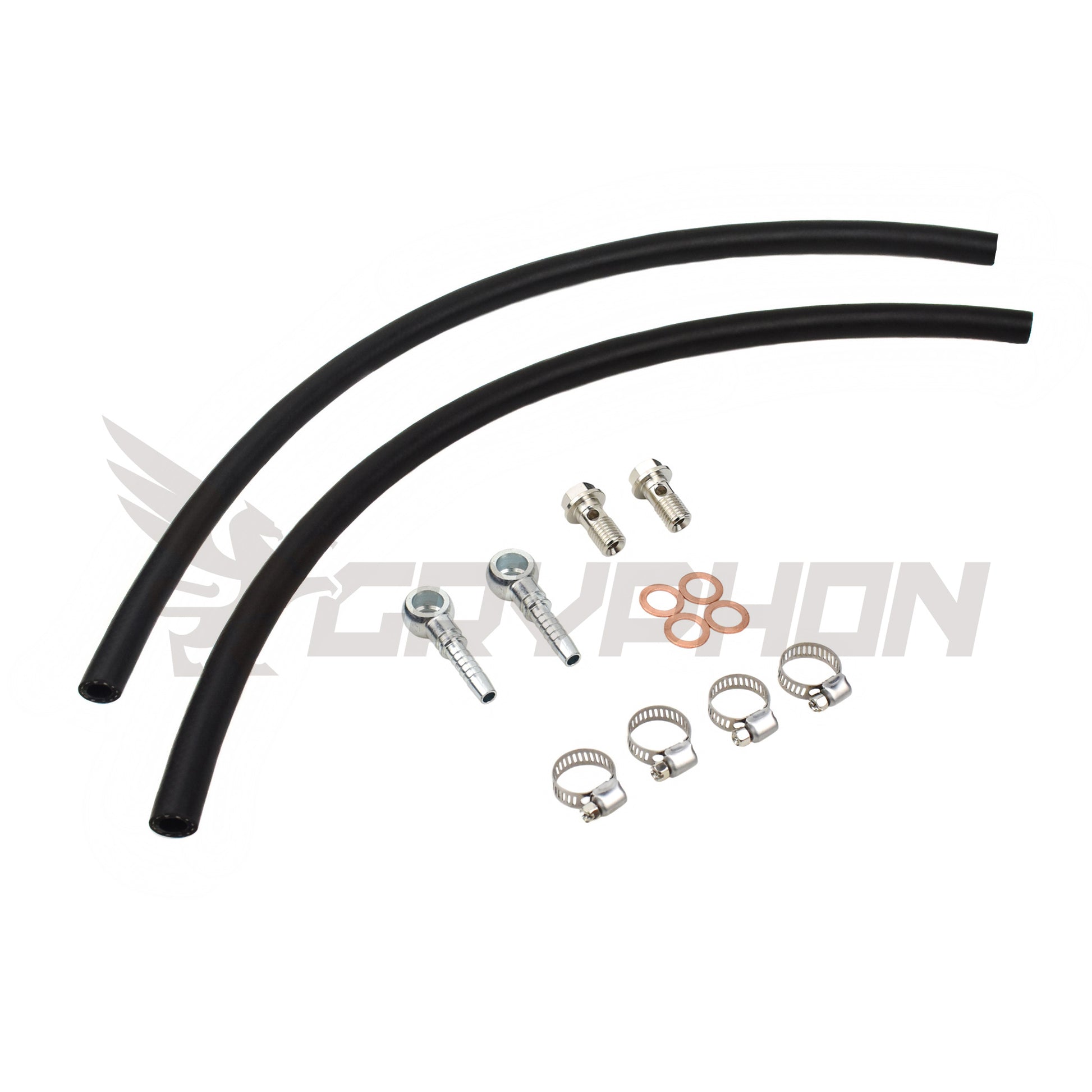

• GryphonTek Complete Turbo Water Line Kit for Mazda MX-5 Miata NA - Reinforced NBR Hoses for TD04.
1 1

Mazda MX-5 Miata (NA/NB) TD04 Turbo Water Line Kit | 1.6L 1.8L Cooling Fix

Mazda MX-5 Miata (NA/NB) TD04 Turbo Water Line Kit | 1.6L 1.8L Cooling Fix

$91.46 USD
$91.46 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
JUNE HOLIDAY SHIPPING UPDATE

Please be advised that June 17 is our final shipping date before the upcoming national holiday break.

June 17 Last Dispatch
June 18-21 No Shipping
June 22 Regular Resumes

Technical support remains active during the holiday period.

View full details

Technical Description

The essential cooling infrastructure to finalize your TD04 conversion with confidence. Converting a naturally aspirated Mazda Miata to a water-cooled TD04 turbocharger requires a reliable bridge to the engine’s coolant circuit. This GryphonTek Signature Series Kit provides a coordinated package of reinforced hoses and specific adapters required to bridge the Miata’s Thermostat Case and Mixing Manifold to the TD04 core, ensuring your turbo stays healthy and your build stays on the road.

[!] Selection Guide: Match Your Chassis

Selection

Year / Chassis

Coolant Hose Size

NA (MK1)

1989–1997

8mm / 5/16"

NB (MK2 / 2.5)

1998–2005

10mm / 3/8"
  • Precision Barb Integration: Pre-matched banjo eyes bridge factory 8mm or 10mm Thermostat Case sources to TD04 threads, eliminating sourcing guesswork and part-hunting.
  • Industrial NBR Construction: Reinforced NBR hoses remain flexible under extreme thermal cycles and resist cooling system pressure spikes.
  • Vibration Fatigue Defense: Flexible plumbing architecture absorbs B6/BP engine harmonics, preventing the fatigue cracks common in rigid custom pipes.
  • Zero-Leak Interface: Includes copper washers and clamps for a permanent, high-pressure seal.

Specifications & Data

Kit Included +

• High-Temp Reinforced NBR Hoses
• Precision Mild Steel Turbo Water Port Fittings
• Coolant Barb Adapters
• Full Hardware Kit: Copper Washers and Clamps

Vehicle Compatibility +

• Make: Mazda
• Models: Miata / MX-5 MK1 (NA), MK2/MK2.5 (NB)
• Engines: 1.6L (B6) / 1.8L (BP) Naturally Aspirated to Turbo conversion
• Year: 1989–2005

Turbo Compatibility +

• Turbo: Mitsubishi TD04 / TD04L / TD04HL (Commonly Subaru WRX or Aftermarket)

Product Specifications +

• Hose Material: Reinforced NBR
• Fitting Material: Mild Steel (Anti-Corrosion Finish)
• Benefit: Prevents heat-soak failure and eliminates sourcing headaches
