Mazda MX-5 Miata NA/NB TD04 Turbo Oil Drain Hose Kit

Mazda MX-5 Miata NA/NB TD04 Turbo Oil Drain Hose Kit

$98.48 USD
$98.48 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This turbo oil drain hose kit is designed for Mazda MX-5 Miata NA (MK1) and NB (MK2/MK2.5) models being converted from naturally aspirated to turbo using a Mitsubishi TD04, TD04L, or compatible TD04HL turbocharger. It establishes a gravity oil-return path from the turbo center housing to the engine oil pan.

The TD04 family billet aluminum drain flange mounts to the turbo oil outlet and connects to a reinforced 3/4-inch NBR hose. The supplied oil-pan return fitting provides the engine side connection, while the flexible hose allows the drain route to be positioned around the manifold, engine mount, and turbo location of a custom conversion build.

Installation requires modification of the oil pan for the supplied return fitting. Confirm the turbo drain flange pattern, center housing orientation, oil-pan fitting location, internal clearance, and available hose route before drilling or tapping the oil pan.

Key Features

  • TD04 family drain connection: Uses a billet aluminum flange configured for compatible Mitsubishi TD04 and TD04L center housings.
  • 3/4-inch gravity return: Reinforced NBR hose provides a large oil-return path from the turbo to the oil pan.
  • Flexible installation routing: The hose can be positioned around the manifold and turbo location of a custom NA/NB conversion.
  • Complete drain side hardware: Includes the turbo flange, gasket, oil-pan fitting, hose clamps, and mounting bolts.

Need help confirming the turbo drain configuration? View the Mazda Miata NA/NB Turbo Oil & Water Line Fitment Guide or contact GryphonTek before ordering.

Specifications & Data

Kit Included +

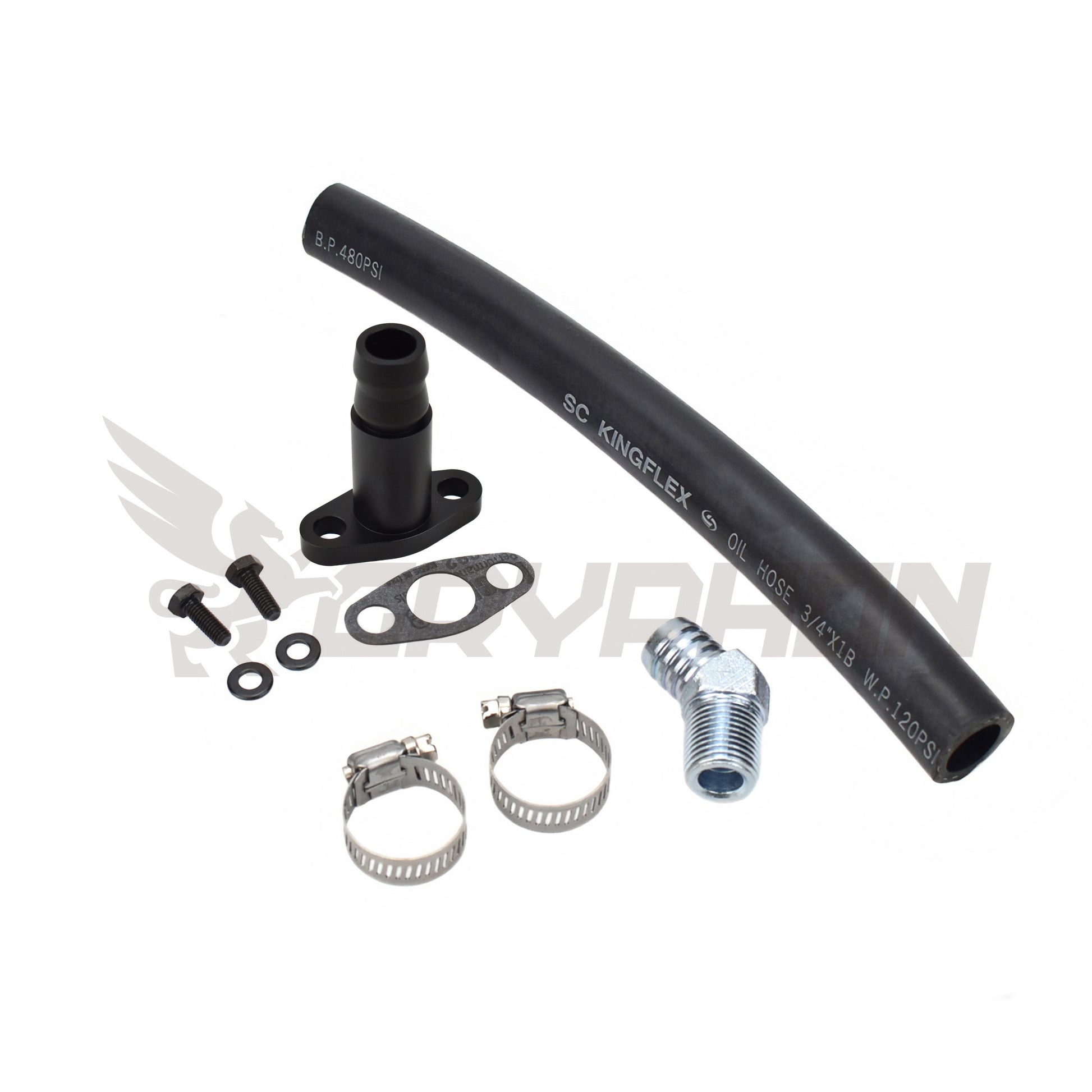

• Reinforced 3/4-inch NBR turbo oil drain hose
• Mitsubishi TD04 family 6061-T6 billet aluminum drain flange
• Interface N-8092 non-asbestos drain gasket
• Oi pan return fitting
• Stainless steel hose clamps
• High-tensile drain flange mounting bolts

Vehicle Compatibility +

• Make: Mazda
• Models: Miata / MX-5 MK1 (NA), MK2/MK2.5 (NB)
• Engines: 1.6L (B6) / 1.8L (BP) Naturally Aspirated to Turbo conversion
• Year: 1989–2005

Turbo Compatibility +

• Turbo: Mitsubishi TD04 / TD04L / TD04HL (Commonly Subaru WRX or Aftermarket)

Product Specifications +

• System Type: Turbo gravity oil drain / return
• Drain Hose Size: 3/4 inch
• Drain Hose Material: Textile-braid reinforced oil-resistant NBR
• Drain Flange Material: 6061-T6 billet aluminum
• Drain Flange Application: Compatible Mitsubishi TD04-family center housing
• Drain Gasket: Interface N-8092 non-asbestos gasket
• Engine Side Connection: Supplied oil-pan return fitting
• Hose Retention: Stainless steel clamps
• Flange Hardware: High tensile mounting bolts
• Installation Requirement: Oil-pan drilling and tapping required
• Routing Requirement: Continuous downward path from the turbo to the oil pan
