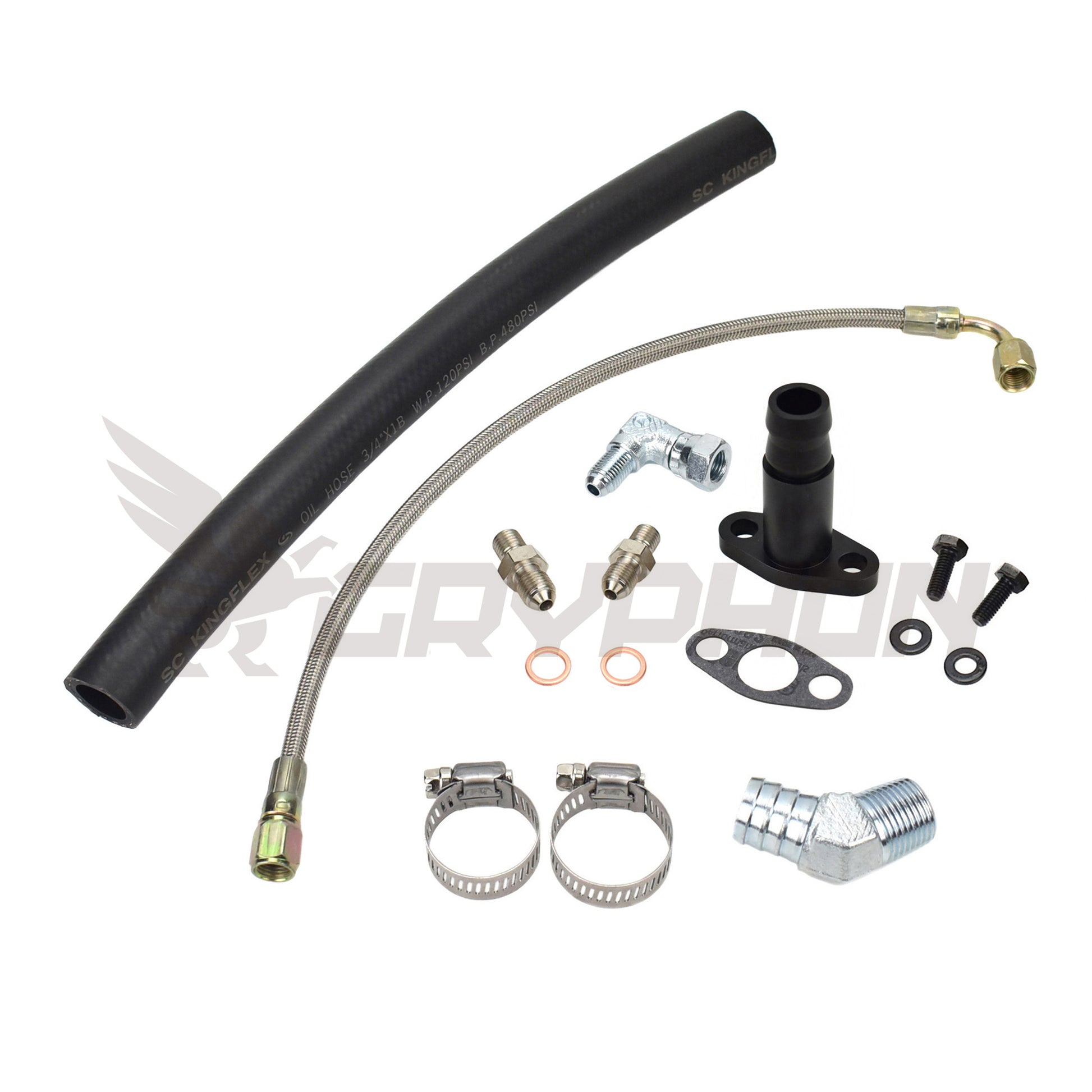

• GryphonTek Complete Turbo Oil Feed and Return Line Kit for Mazda MX-5 Miata early NA - PTFE Braided and NBR Solution.
  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 3

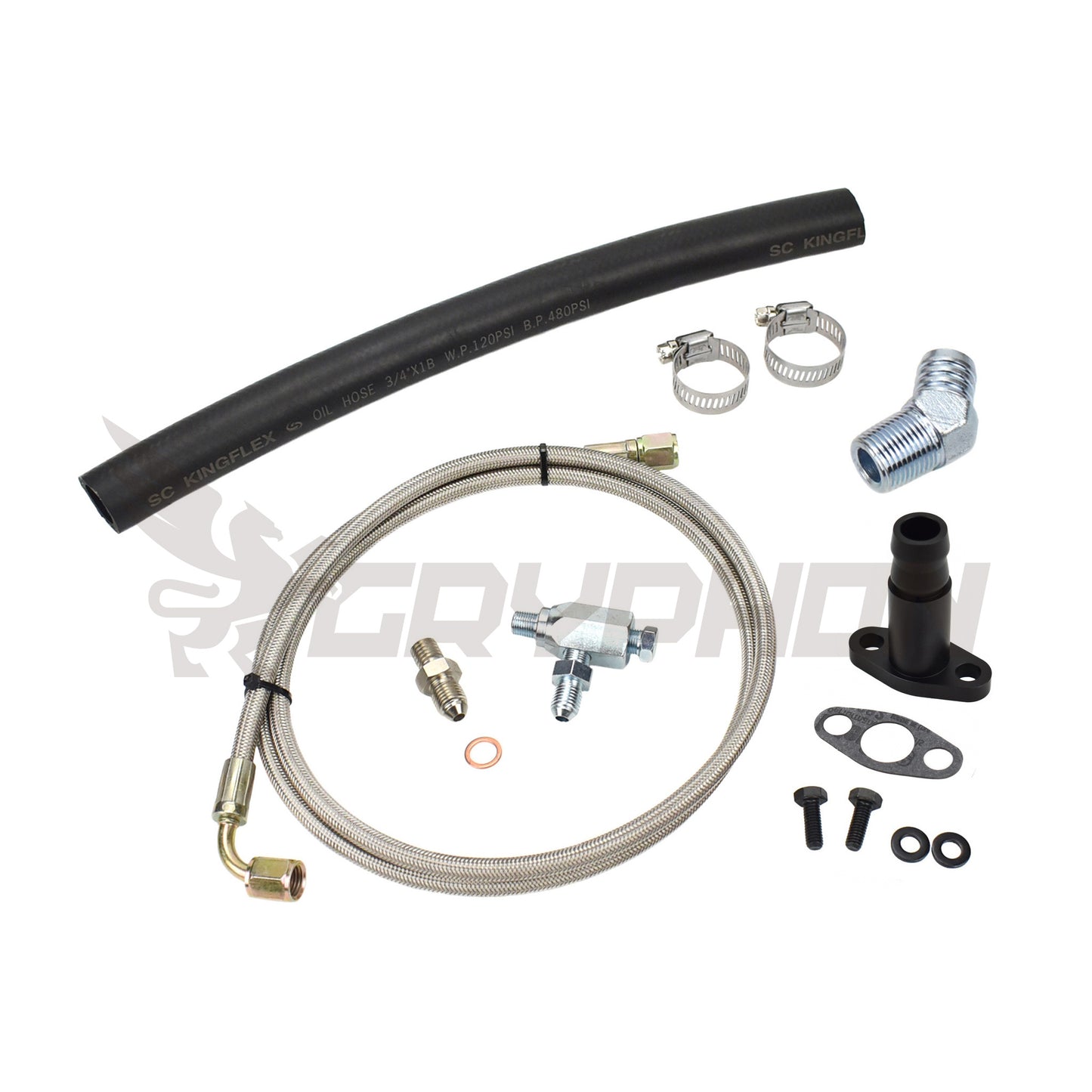

Mazda MX-5 Miata NA/NB TD04 Complete Turbo Oil Feed & Return Line Kit

Mazda MX-5 Miata NA/NB TD04 Complete Turbo Oil Feed & Return Line Kit

$114.16 USD
$114.16 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This complete turbo oil feed and return line kit is designed for Mazda MX-5 Miata NA (MK1) and NB (MK2/MK2.5) models being converted from naturally aspirated to turbo using a Mitsubishi TD04, TD04L, or compatible TD04HL turbocharger. It combines the pressurized oil feed and gravity oil-return systems required for the conversion.

The oil-feed system uses a -4AN PTFE stainless-braided line. On the return side, a TD04 family billet aluminum drain flange connects to a reinforced 3/4 inch NBR hose and the supplied oil-pan return fitting.

The turbo oil drain operates by gravity and must maintain a continuous downward route from the center housing to the oil pan. Installation requires modification of the oil pan for the supplied return fitting.

Key Features

  • Complete turbo oil plumbing: Includes both the pressurized oil feed and gravity oil return systems.
  • Application specific engine connection: Configured for Early NA 1.6L, Late NA 1.8L, or NB 1.8L oil-feed arrangements.
  • Selectable TD04 oil inlet fitting: Choose M10×1.25, M10×1.5, or M12×1.5 to match the installed center housing.
  • TD04 family gravity return: Uses a billet drain flange and reinforced 3/4 inch NBR hose to connect the turbo to the oil pan.

Not sure which application or oil inlet thread fits your build? View the Mazda Miata NA/NB Turbo Oil & Water Line Fitment Guide or contact GryphonTek before ordering.

Specifications & Data

Kit Included +

• -4AN PTFE stainless-braided turbo oil feed line
• Application specific engine side oil-feed fitting
• Selected TD04 family restricted turbo oil inlet fitting
• Reinforced 3/4 inch NBR turbo oil drain hose
• Mitsubishi TD04 family 6061-T6 billet aluminum drain flange
• Interface N-8092 non-asbestos drain gasket
• Oil-pan return fitting
• Stainless steel hose clamps
• High-tensile drain flange mounting bolts
• Required adapters and copper sealing washers

Vehicle Compatibility +

• Make: Mazda
• Models: Miata / MX-5 MK1 (NA), MK2/MK2.5 (NB)
• Engines: 1.6L (B6) / 1.8L (BP) Naturally Aspirated to Turbo conversion
• Year: 1989–2005

Turbo Compatibility +

• Turbo: Mitsubishi TD04 / TD04L / TD04HL (Commonly Subaru WRX or Aftermarket)

Product Specifications +

• Included Systems: Turbo oil feed and gravity oil return
• Oil Feed Line Size: -4AN
• Oil Feed Hose Material: PTFE core with 304 stainless steel braid
• Turbo Oil Inlet Fitting: Restricted fitting selected by thread size
• Oil Drain Hose Size: 3/4 inch
• Oil Drain Hose Material: Textile-braid reinforced oil-resistant NBR
• Drain Flange Material: 6061-T6 billet aluminum
• Drain Flange Application: Compatible Mitsubishi TD04 family center housing
• Drain Gasket: Interface N-8092 non-asbestos gasket, 1 mm thickness
• Engine Side Return Connection: Supplied oil pan return fitting
• Installation Requirement: Oil-pan drilling and tapping required
• Drain Routing Requirement: Continuous downward path from the turbo to the oil pan
