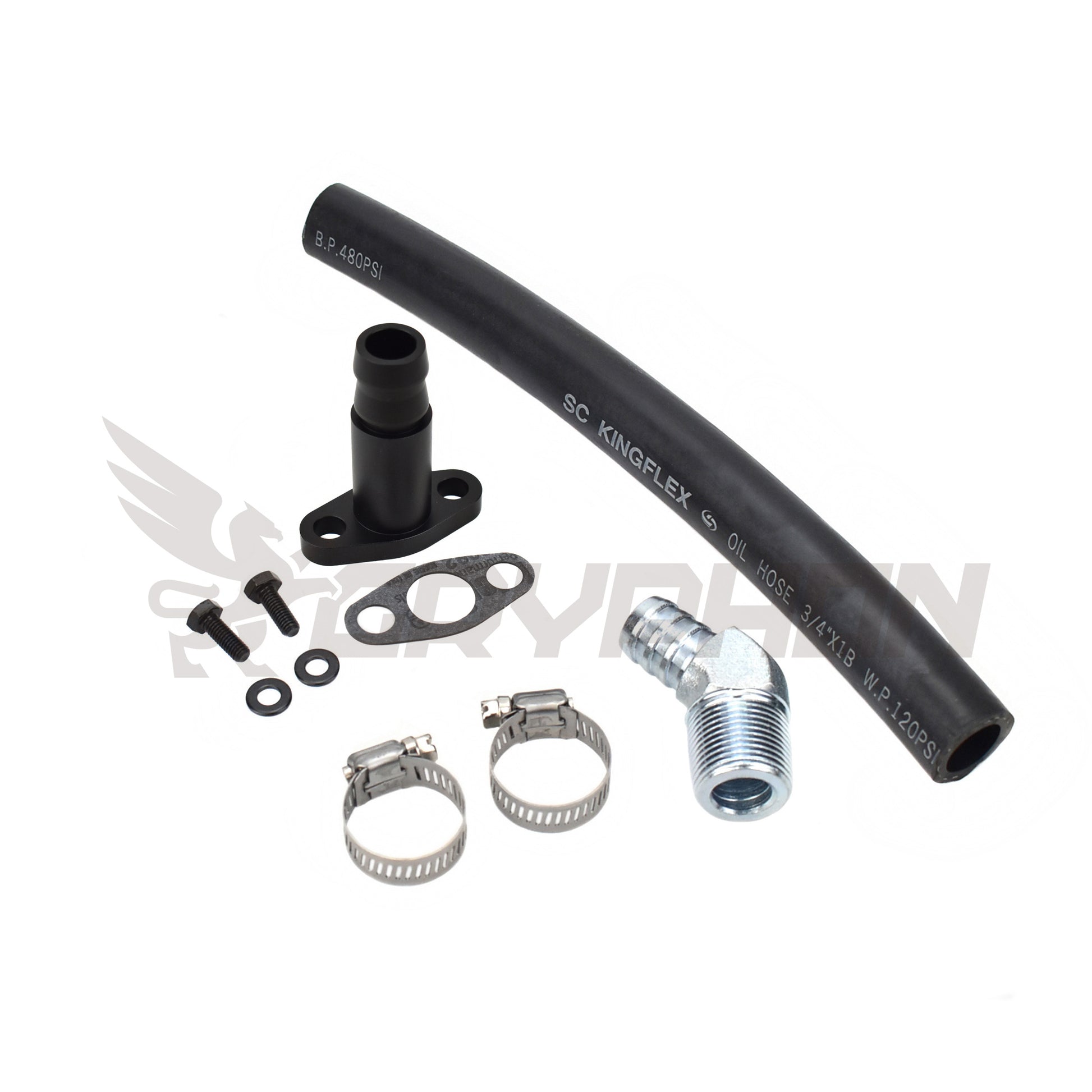

• GryphonTek Complete Turbo Oil Drain Hose Kit for Mazda MX-5 Miata NA NB - Billet VJ35 Flange and NBR Hose.
1 2

Mazda MX-5 Miata (NA/NB) IHI VJ35 Turbo Oil Drain Hose Kit | 1.6L 1.8L Conversion

Mazda MX-5 Miata (NA/NB) IHI VJ35 Turbo Oil Drain Hose Kit | 1.6L 1.8L Conversion

$98.48 USD
$98.48 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
JUNE HOLIDAY SHIPPING UPDATE

Please be advised that June 17 is our final shipping date before the upcoming national holiday break.

June 17 Last Dispatch
June 18-21 No Shipping
June 22 Regular Resumes

Technical support remains active during the holiday period.

View full details

Technical Description

The professional foundation to establish a high-flow, smoke-free return path for your IHI VJ35. Converting a naturally aspirated Miata to use the Mazdaspeed-spec VJ35 turbo requires a critical engineering link: a zero-restriction oil evacuation path. This GryphonTek Signature Series Kit provides the specific IHI-pattern hardware and high-temp plumbing needed to bridge your turbo to the oil pan in one coordinated package.

  • VJ35 Specific Geometry: CNC-machined 6061-T6 billet aluminum flange with precise IHI bolt spacing, ensuring a perfectly flat, leak-free interface for VJ35 cores.
  • High-Flow Return Architecture: Optimized internal diameter prevents the bearing back-pressure that causes "Blue Smoke" and seal failure in IHI journal-bearing turbos.
  • Industrial NBR Construction: Multi-layer reinforced oil-resistant hose remains flexible under extreme thermal cycles and absorbs high-frequency B6/BP engine harmonics.
  • Zero-Leak Interface: Includes premium Interface N-8092 non-asbestos gaskets and high-torque clamps for long-term sealing integrity.

Specifications & Data

Kit Included +

• High-Temp Reinforced NBR Oil Drain Hose
• 6061-T6 Billet Aluminum IHI VJ35 Specific Drain Flange
• Interface N-8092 Non-Asbestos Gasket
• Oil Pan Return Fitting
• Full Hardware Kit: Stainless Steel Clamps & High-Tensile Bolts

Vehicle Compatibility +

• Make: Mazda
• Models: Miata / MX-5 MK1 (NA), MK2/MK2.5 (NB)
• Engines: 1.6L (B6) / 1.8L (BP) Naturally Aspirated to Turbo conversion
• Year: 1989–2005

Turbo Compatibility +

• Turbo: IHI RHF5 VJ35 (Mazdaspeed Miata Factory Turbo)

Product Specifications +

• Flange Material: 6061-T6 Aircraft-Grade Aluminum
• Hose Material: Reinforced NBR
• Benefit: Prevents oil backup smoke and eliminates sourcing frustration
• Installation: Requires tapping the oil pan; direct bolt-on to VJ35 turbo
