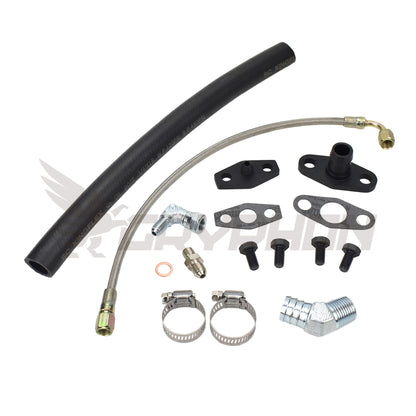

• Turbo Oil Feed Return Line Kit for Mazda MX5 Miata Early MK1 engine with Holset Super HX30W
  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 4

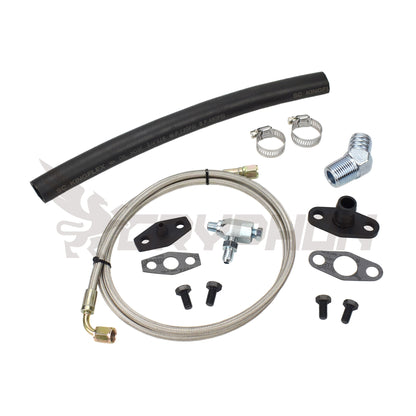

Mazda MX-5 Miata NA/NB Holset Super HX30W Complete Turbo Oil Feed Return Line Kit

Mazda MX-5 Miata NA/NB Holset Super HX30W Complete Turbo Oil Feed Return Line Kit

$115.94 USD
$115.94 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This complete turbo oil feed and return line kit is designed for Mazda MX-5 Miata NA (MK1) and NB (MK2/MK2.5) models being converted from naturally aspirated to turbo using a compatible Holset Super HX30W turbocharger.

The kit combines the pressurized engine to turbo oil supply with the gravity return connection from the turbocharger to the engine oil pan. It includes a -4AN PTFE stainless braided oil feed line, application specific engine side hardware, a full flow Holset turbo oil inlet flange, and a reinforced 3/4 inch NBR oil drain system.

The supplied turbo inlet flange uses a non restricted, full flow configuration for the listed Super HX30W application. Do not add an external oil restrictor unless it is required for the exact turbocharger or confirmed by the turbo manufacturer or GryphonTek.

Key Features

  • Application specific engine oil connection for Early NA, Late NA, and NB Miata models
  • Full flow -4AN PTFE stainless braided oil feed line with a Super HX30W compatible inlet flange
  • Reinforced 3/4 inch NBR gravity return hose with a CNC machined 6061-T6 aluminum drain flange
  • Oil pan return fitting, flange gasket, hose clamps, mounting hardware, and copper sealing washers included

Need help confirming the correct application? See the Mazda Miata NA/NB Turbo Oil & Water Line Fitment Guide .

Specifications & Data

Kit Included +

• -4AN PTFE stainless braided turbo oil feed line
• Application specific engine side oil feed adapter
• Full flow Holset Super HX30W oil inlet flange
• CNC machined 6061-T6 aluminum turbo oil drain flange
• Reinforced 3/4 inch NBR turbo oil drain hose
• Interface N-8092 non-asbestos flange gasket
• Oil pan return fitting
• Turbo flange mounting bolts
• Hose clamps
• Copper sealing washers

Vehicle Compatibility +

• Make: Mazda
• Models: Miata / MX-5 MK1 (NA), MK2/MK2.5 (NB)
• Engines: 1.6L (B6) / 1.8L (BP) Naturally Aspirated to Turbo conversion
• Year: 1989–2005

Turbo Compatibility +

• Turbo: Holset Super HX30W

Product Specifications +

• Oil Feed Line Size: -4AN
• Oil Feed Hose Material: PTFE with 304 stainless steel braid
• Oil Feed Control: Full-flow / non-restricted
• Oil Drain Hose Size: 3/4 inch / 19 mm
• Oil Drain Hose Material: Reinforced NBR
• Drain Flange Material: CNC-machined 6061-T6 aluminum
• Flange Gasket: Interface N-8092 non-asbestos gasket
• Oil Pan Connection: Supplied return fitting
• Oil Pan Modification: Required
