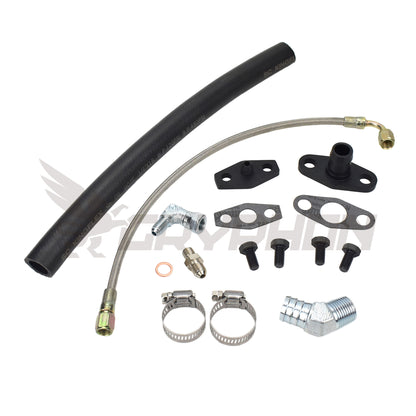

• Turbo Oil Feed Return Line Kit for Mazda MX5 Miata Early MK1 engine with Garrett T3 T4
  • PTFE Teflon stainless braided hose for turbo, heat-resistant and durable
1 4

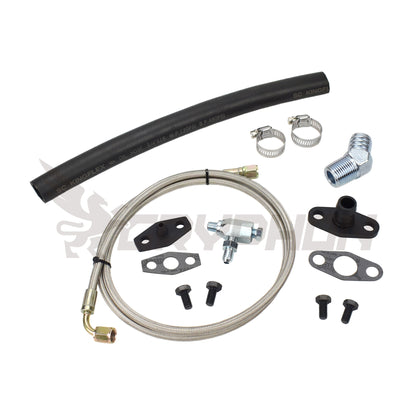

Mazda MX-5 Miata NA/NB Garrett T3 T4 Complete Turbo Oil Feed & Return Line Kit

Mazda MX-5 Miata NA/NB Garrett T3 T4 Complete Turbo Oil Feed & Return Line Kit

$115.94 USD
$115.94 USD
Sale Sold out
Shipping calculated at checkout.

No PayPal Account Required

We accept Visa, Mastercard, Amex, JCB

Click PayPal, then select "Pay with a Card"

Worldwide

DHL, FEDEX, EMS

Fast Ship

48H Dispatch

Free Ship

AU/US & More

Tailored

Customizable

30-Day

Returns

Secured

SSL Encrypted
View full details

Technical Description

This complete turbo oil feed and return line kit is designed for Mazda MX-5 Miata NA (MK1) and NB (MK2/MK2.5) models being converted from naturally aspirated to turbo using a compatible Garrett T3 T4 turbocharger.

The oil feed system combines an application specific engine fitting, a flexible -4AN PTFE stainless braided line, and a Garrett T3 T4 turbo oil inlet fitting with an integrated 2.0mm restrictor.

The gravity return system includes a 6061-T6 aluminum T3 T4 drain flange, reinforced 3/4-inch NBR hose, Interface N-8092 gasket, oil-pan return fitting, clamps, and installation hardware.

Early NA models use the exhaust side engine oil port with a direct fit M10 adapter. Late NA and NB models take the turbo oil supply from the oil pressure sensor location and use a 1/8 BSPT sensor tee. Select the application that matches the installed engine and actual oil feed source.

Key Features

  • Complete pressurized turbo oil feed and gravity return plumbing package
  • Application specific engine oil fitting for Early NA, Late NA, and NB configurations
  • -4AN PTFE oil feed line with a Garrett T3 T4 2.0mm restrictor fitting
  • 6061-T6 aluminum drain flange with reinforced 3/4-inch NBR return hose

Need help confirming your vehicle application or turbo setup? Refer to the Mazda Miata NA/NB Turbo Oil & Water Line Fitment Guide before ordering.

Specifications & Data

Kit Included +

• -4AN PTFE stainless braided turbo oil feed line
• Garrett T3 T4 turbo oil inlet fitting with integrated 2.0mm restrictor
• 6061-T6 aluminum Garrett T3 T4 turbo oil drain flange
• Reinforced 3/4-inch NBR turbo oil drain hose
• Interface N-8092 non-asbestos drain flange gasket
• Oil pan return fitting
• High torque hose clamps
• Annealed copper sealing washers
• Turbo drain mounting hardware

Vehicle Compatibility +

• Make: Mazda
• Models: Miata / MX-5 MK1 (NA), MK2/MK2.5 (NB)
• Engines: 1.6L (B6) / 1.8L (BP) Naturally Aspirated to Turbo conversion
• Year: 1989–2005

Turbo Compatibility +

• Turbo: Garrett T3, T4, T3/T4 Hybrid, T04E, T04B

Product Specifications +

• System Type: Pressurized turbo oil feed and gravity return system
• Oil Feed Line Size: -4AN
• Oil Feed Hose Material: PTFE
• Oil Feed Outer Braid: 304 stainless steel
• Oil Restrictor Size: 2.0mm
• Oil Drain Hose Size: 3/4 inch
• Oil Drain Hose Material: Reinforced NBR
• Drain Flange Material: 6061-T6 aluminum
• Drain Gasket Material: Interface N-8092 non-asbestos gasket
• Fitting Material: Mild steel
• Oil Pan Connection: Supplied return fitting
• Oil Pan Modification: Required
